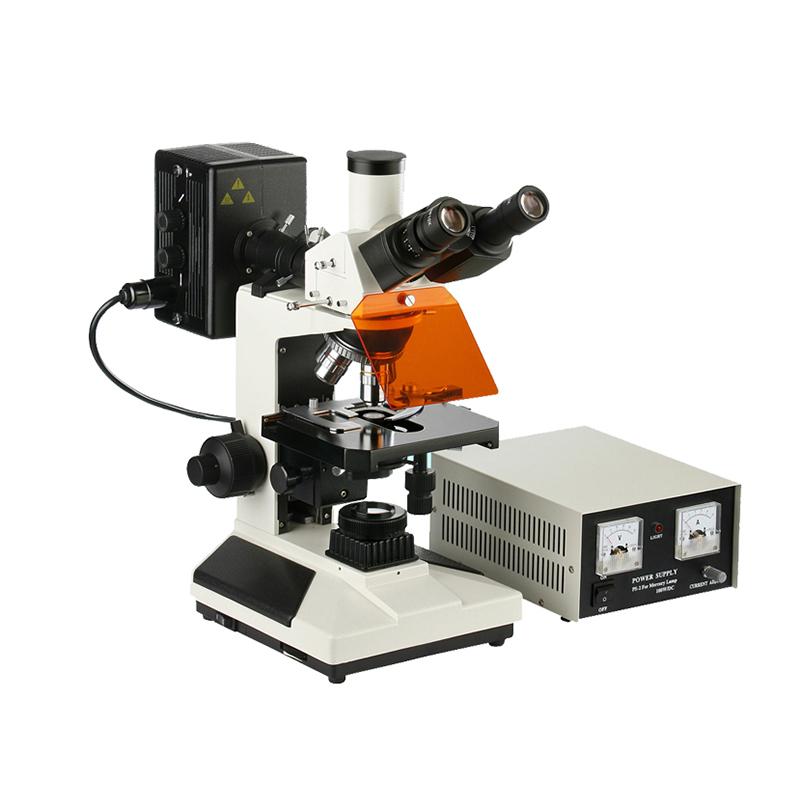

TEELEN CFM-200 Fluorescence Microscope

SE
Trinocular Upright Fluorescence Microscope B/G Two-group Excitation
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

Teelen CFM-200 Fluorescence MicroscopeSPEC

Teelen CFM-200 Fluorescence MicroscopeDetails

Teelen CFM-200 Fluorescence MicroscopePacking list

SKU
NB025478
eyepiece
Large field of view WF10X (0019 18mm)
objective lens
Eliminate color difference 4X/0.10; Eliminate color difference 10X/0.25; Eliminate color difference 100X/1.25 (spring, oil); Fluorescent objective 20X/0.65
Eyepiece tube
Three eyepieces (tilted 30 °)
Focusing system
Coaxial coaxial fretting focusing, with locking and limiting device, fretting grid value: 2 μm.
converter
Four holes (inward ball positioning)
stage
Double-decked mechanical mobile (size: 135mmX125mm, moving range: 75mmX35mm)
Abbe condenser
N.A.1.25 can be lifted up and down
Color filter
Blue filter
collector
For halogen lamps
Light source
6V 20W halogen lamp, adjustable luminance
Dropper fluorescent device
Mercury lamp light box 100W/DC; power box: AC: 110V or 220V; fluorescent filter group B excitation optical band: 420~485nm; fluorescent filter group G excitation optical band: 460~550nm
CFM-200
Fluorescence Microscope
Trinocular Upright Fluorescence Microscope B/G Two-group Excitation

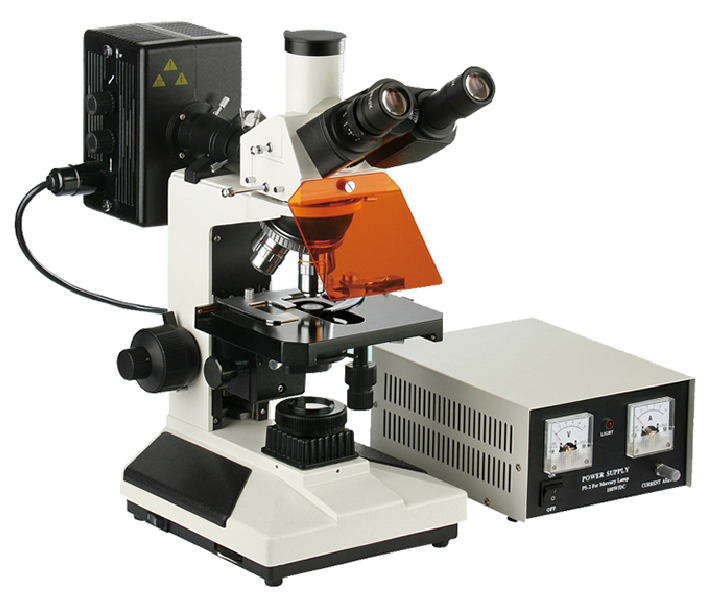

TEELEN CFM-200 Fluorescence Microscope Picture

Instrument Introduction

CFM-200 series epi-fluorescence microscopes are suitable for fluorescence microscopy and transmission field of view observation, and are ideal instruments for biology, cytology, oncology, genetics, and other research work. , and other research work, it can be used by scientific research, universities, medical and epidemic prevention departments.

Features

▲ Equipped with wide-field eyepieces and flat-field achromats and fluorescent objective lenses, the field of view is large and clear.

▲ Coarse and fine motion coaxial focusing mechanism, coarse motion adjustable, with locking and limit device, fine motion scale value: 2μm.

▲ Transmissive lighting adopts 6V 20W halogen lamp with adjustable brightness; fluorescent epi-illumination adopts 100W high-pressure mercury lamp with external power box.

FAQ
QCan This Epitope Fluorescence Microscope Apply to GB/T4074.10?
A OK
