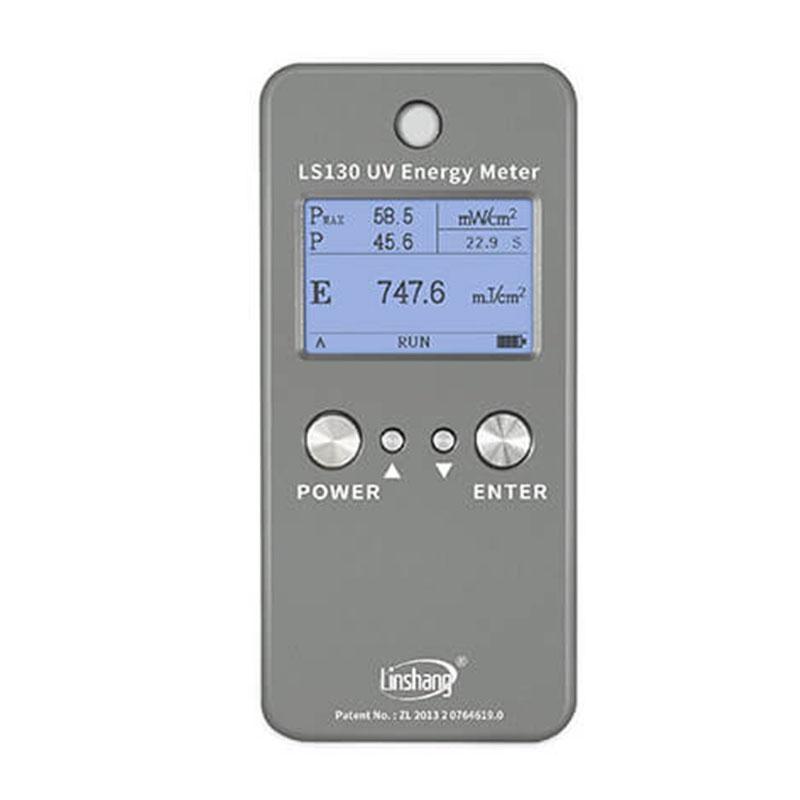

Linshang LS130 UV energy meter Standard Edition USB + Linear dispersion
SE
LS130
LinShang LS130 UV energy meterSPEC
LinShang LS130 UV energy meterDetails
LinShang LS130 UV energy meterPacking list
- SKU
- NB026425
- Light spectrum range
- 315nm~400nm，λp = 365nm
- Power Measurement range
- 0~2000mW/cm²
- Power Resolution
- 0.1mW/cm²
- Energy Measurement range
- 0~999999mJ/cm²
- Energy measurement Accuracy
- ± 10%, ± 5% typical
- Sampling speed
- 2048 times/second
- Power data storage interval
- 32 times/second
- recording period
- 32 minutes
- Instrument Power
- 4 AAA alkalinity dry cells
- show
- 40 * 160 dot matrix LCD
- Instrument size
- Length 160mm × Width 75mm × Height 13mm
- Instrument Weight
- 303 g
Introduction
LS130UV energy meter is an instrument that can detect the intensity and energy of the light source at the same time. It is a UV energy meter dedicated to measuring high-pressure mercury lamps. And it has rich statistical functions, and simultaneously displays the real-time power value, maximum power value, energy value and measurement duration. Connected with special computer software, it can realize data reading, generate data curve, export UV power data to EXCEL, generate reports and other functions.
LS130UV energy meter can be used in a wide range of industries, such as: optoelectronic products industry, furniture wood industry, hardware industry, printing and silk screen industry, etc.
Features
1. High accuracy, passed and obtained the test certificates of many credible testing institutions.
2. The truly intelligent UV energy meter can detect UV intensity and energy at the same time. Intelligent statistical power real-time value, maximum power value, energy value and measurement time, through the measurement time can accurately understand the length of UV curing time.
3. With the power curve display function, the intensity distribution of the light source can be analyzed through the power curve graph.
4. The sampling speed is 2048 times per second, and the high-speed acquisition ensures more accurate measurement. The front probe design is convenient for data reading during the measurement process.
5. The stored data will not be lost when the power is turned off, and the last test data will be displayed automatically when it is turned on, and the test data can only be deleted manually.
6. It adopts metal shell and high temperature resistant design, which can run in the environment of 100 degrees Celsius for a long time.
7. The instrument comes with a USB interface, which can be connected to a computer through the USB interface to read detailed test data and print test reports.
