Linshang LS131 UV energy meter Standard Edition USB + Linear dispersion

SE
Light spectrum range of Linshang LS131 UV energy meter 340nm-420nm, instrument calibrated to 395nm light source, power measuring range 0-40000mW/cm ², power resolution 1mW/cm ², energy measuring range 0-999999mJ/cm ², energy measurement accuracy ± 10%, ± 5% Typical, sampling speed 2048 times/sec, power data storage interval 32 times/sec.
Model：
Certificate
Contact
Details SPEC CAT

LinShang LS131 UV energy meterSPEC

LinShang LS131 UV energy meterDetails

LinShang LS131 UV energy meterPacking list

SKU
NB026426

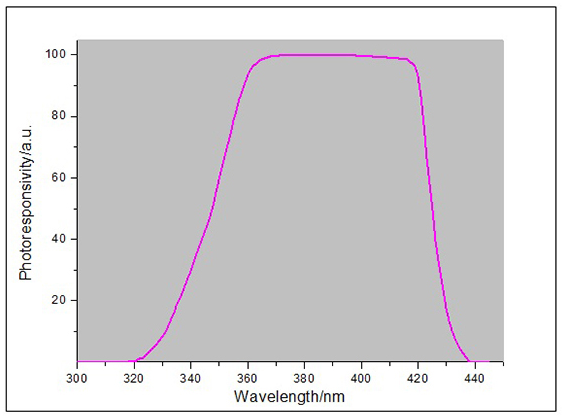

Light spectrum range
340Nm~ 420nm, instrument calibrated to 395nm light source
Power Measurement range
0~40000mW/cm²
Power Resolution
1mW/cm²
Energy Measurement range
0~999999mJ/cm²
Energy measurement Accuracy
± 10%, ± 5% typical
Sampling speed
2048 times/second
Power data storage interval
32 times/second
recording period
32 minutes
Instrument Power
4 AAA alkalinity dry cells
show
240 * 160 dot matrix LCD
Instrument size
Length 160mm × Width 75mm × Height 13mm
Instrument Weight
303g
LS131
UV energy meter

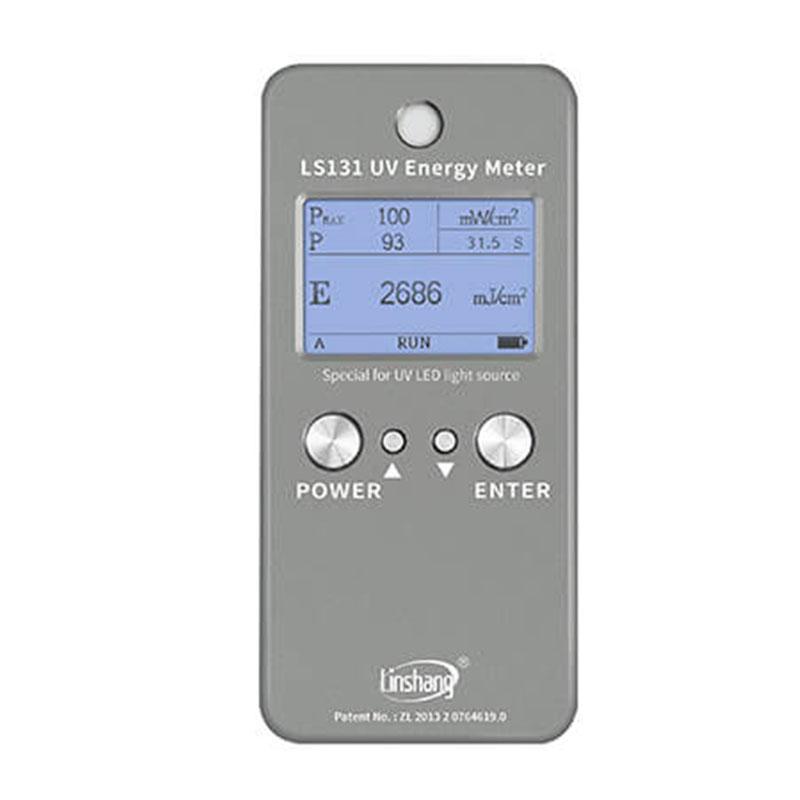

Linshang LS131 UV energy meter Standard Edition USB + Linear dispersion Picture

Introduction

LS131 UV energy meter is an instrument that can detect the power and energy of UV LED light source at the same time. Very suitable for UV dryers, exposure machines, printing machines, UV curing machines and other equipment. During the test, the instrument can display the real-time power value, maximum power value, energy value and measurement time at the same time. And connected to the computer software, the test data can be exported and the test report can be printed.

Features

1. Wide spectral response, can test UV LED light sources in various bands such as 365nm, 375nm, 385nm, 395nm, 405nm and so on.

2. The truly intelligent UV energy meter can detect the intensity and energy of the UV LED light source at the same time, and can display the intensity curve.

3. Rich statistical functions, the instrument simultaneously displays the real-time power value, maximum power value, energy value and measurement duration.

4. The instrument has a built-in large-capacity memory, which can record up to 60,000 pieces of power data. The front probe design is convenient for data reading during the test.

5. The stored data will not be lost when the power is off, and the last test data will be displayed automatically when the machine is turned on, and it needs to be deleted manually.

6. Metal shell, high temperature resistant design, can run in the environment of 100 degrees Celsius for a long time.

7. The built-in timer can accurately record the length of UV curing time.

8. USB interface, computer software can read detailed test data and print test reports.
