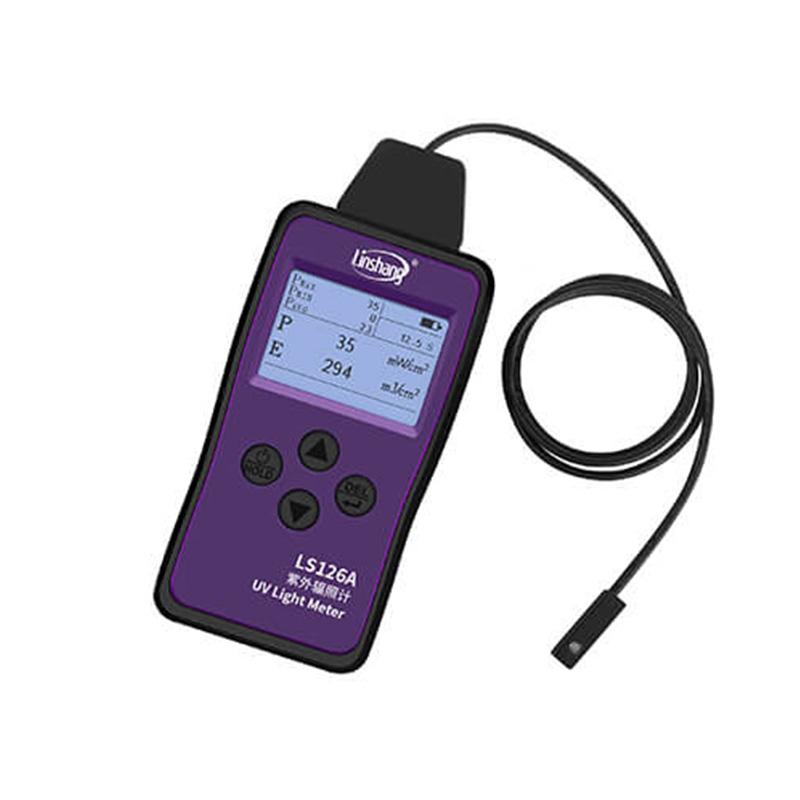

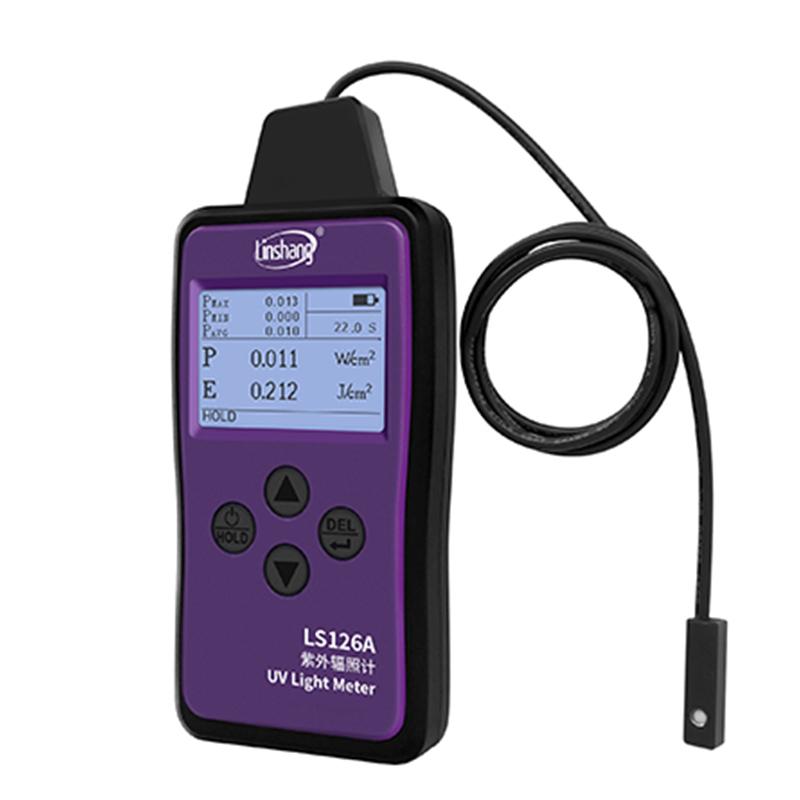

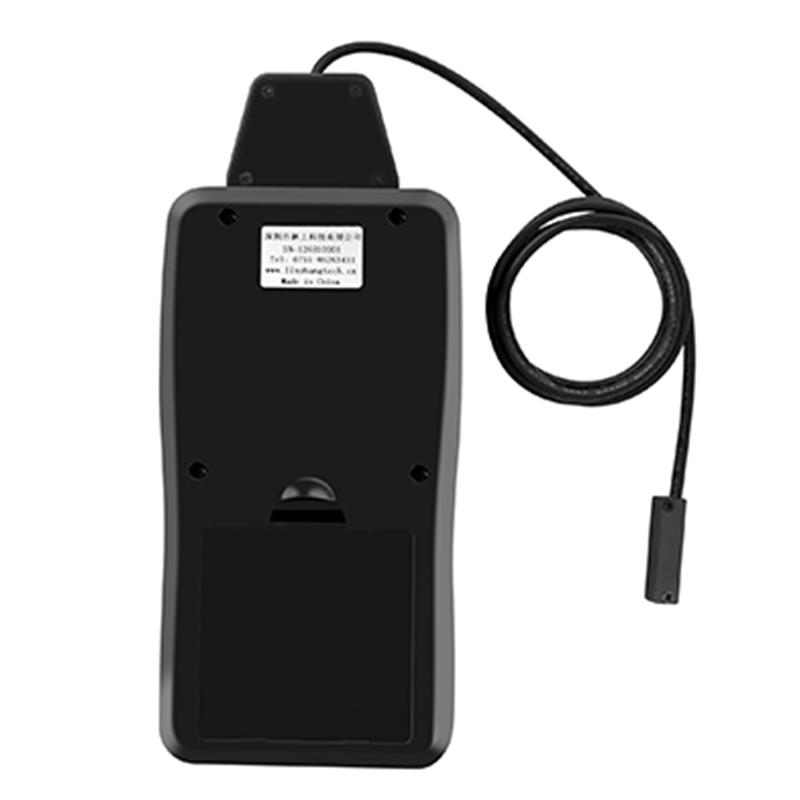

Linshang LS126A UV Irradiometer

Light spectrum Response of Linshang LS126A UV irradiometer 340nm-420nm, the instrument is calibrated to 395nm LED light source, power measuring range 0~20000 mW/cm2, power resolution 1 mW/cm2, energy measuring range 0 - 9999999mJ/cm2, test hole diameter < 3mm, probe size length 28mm × width 7.2mm × thickness 6.5mm.

$587.00/set

PromotionLoading...

Coupon

Model：

LS126A

Certificate

LinShang

Manufacturer authorization

Contact

Details SPEC Con VIDEO OI

LinShang LS126A UV IrradiometerSPEC

LinShang LS126A UV IrradiometerDetails

LinShang LS126A UV IrradiometerPacking list

SKU: NB026437

Light spectrum Response: 340Nm-420nm, instrument calibrated to 395nm LED light source

Power Measurement range: 0~20000 mW/cm2

Power Resolution: 1 mW/cm2

Energy Measurement range: 0 – 9999999mJ/cm2

Record time: 0 – 99999S

Measurement Accuracy: ±10 %

Sampling rate: 2048 times/second

Optional unit: mW / cm2 () W / cm2W / m2

Test hole diameter: Φ3mm

Sensors size: 28*7.2*6.5mm

Host size: 170*76*26mm

Probe line length: 0.8 meters

Instrument Weight: Approx. 232 g (with battery)

show: 240 * 160 dot matrix LCD

Power: 4 AAA alkalinity dry cells

LS126A

UV Irradiometer

Introduction

UVA in ultraviolet light is 340nm-420nm. This band is mostly used in curing, exposure and other industries. However, since the ultraviolet light source will attenuate at any time, we need to use a UV illuminance meter to monitor the attenuation of the UVA light source at any time.

LS126A UV Light Meter is mainly used for UV intensity and energy measurement in UVA band. The UV light meter is designed with an ultra-small probe with a probe width of 7.2mm, which is very suitable for measuring the ultraviolet intensity and energy in small spaces where conventional probes are not easy to place.

Features

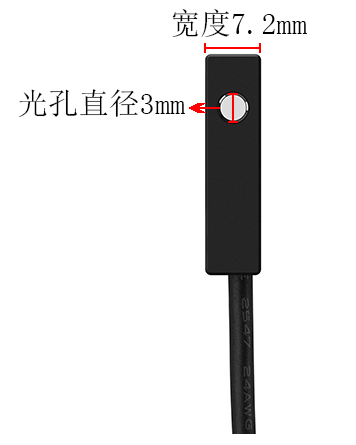

1. The instrument probe adopts ultra-small size design, and the narrowest width that can be measured is 7.2mm.

2. High-speed acquisition, 2048 samples per second, can accurately calculate ultraviolet energy.

3. Data statistics function, the interface directly displays the maximum value, minimum value, average value, and measurement time.

4. It is suitable for UV energy and intensity detection of UV curing machine for UV LED light source.

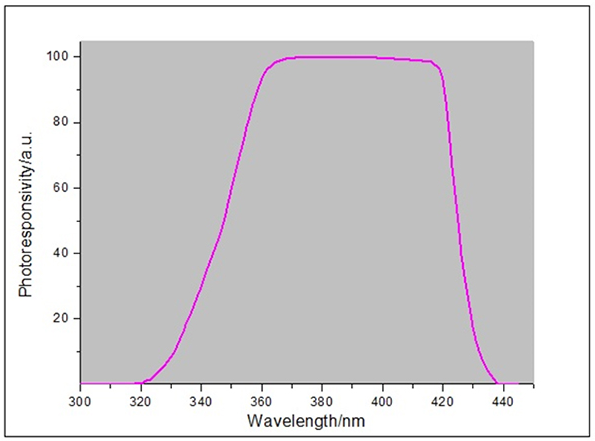

LS126A ultraviolet light meter probe spectral response curve:
