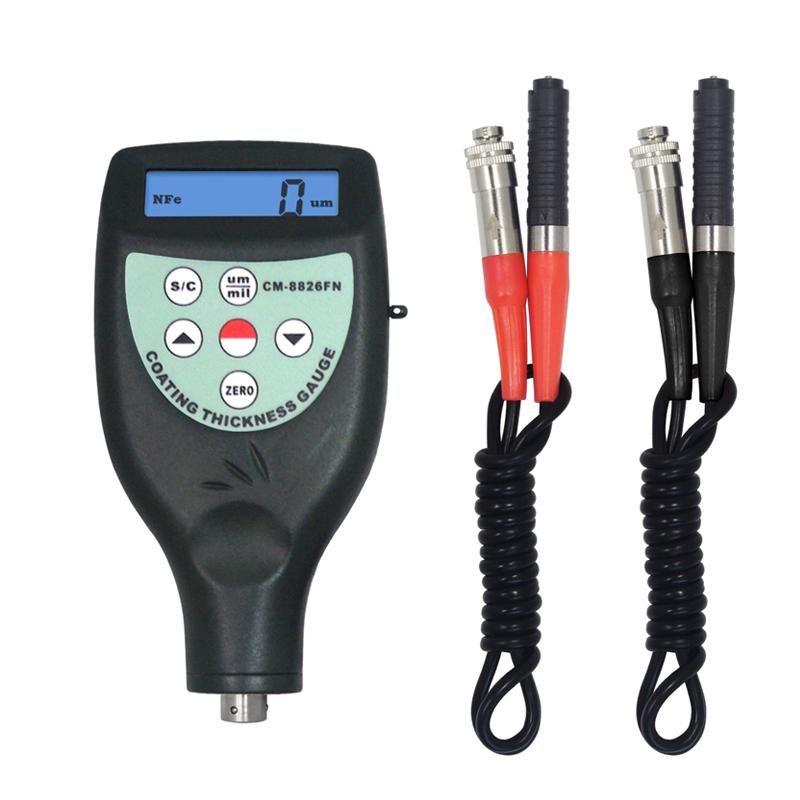

LANDTEK CM8826Fn paints Thickness Gauge, automatic substrate identification

CM8826fn

Coating Thickness Gauge

Magnetic Induction and eddy Current paints thickness measurement, with F and N split external probes, thickness measurement range 0~1250μm, error accuracy +/- 3%, LCD screen, with memory calibrated value, automatic identification of different substrates.

product description

Different from the CM8825fn paint layer Thickness Gauge, LANDTEK CM8826fn paint layer Thickness Gauge is a split type paint layer Thickness Gauge , which is equipped with F probe and N probe as standard, which are used to measure different substrates. CM8826fn coating Thickness Gauge is a practical coating Thickness Gauge belonging to LANDTEK paint layer Thickness Gauge, which meets the needs of most coating thickness testing applications and is reliable and stable. CM8826fn has automatic memory calibration value and automatic identification of different substrates.

Applications

CM8826fn split sensor coating Thickness Gauge uses a magnetic sensor to measure non-ferromagnetic coatings and coatings on ferromagnetic metal substrates such as steel and iron, such as: powder, plastic, paint, rubber, synthetic materials, phosphating layer, Zinc, lead, aluminum, tin, chromium, cadmium, oxide layers, etc. The eddy current sensor can be used to measure the thickness of the insulating coating on the non-magnetic metal substrate, such as measuring the enamel, rubber, paint, plastic layer, etc. on the substrate of copper, aluminum, zinc, non-magnetic stainless steel, etc., and can also measure aluminum or aluminum alloy materials thickness of the anodized layer.CM8826fn paint layer Thickness Gauge is widely used in manufacturing, metal processing, chemical industry, commodity inspection and other testing fields.

Features

The paint layer Thickness Gauge CM-8826fn can measure

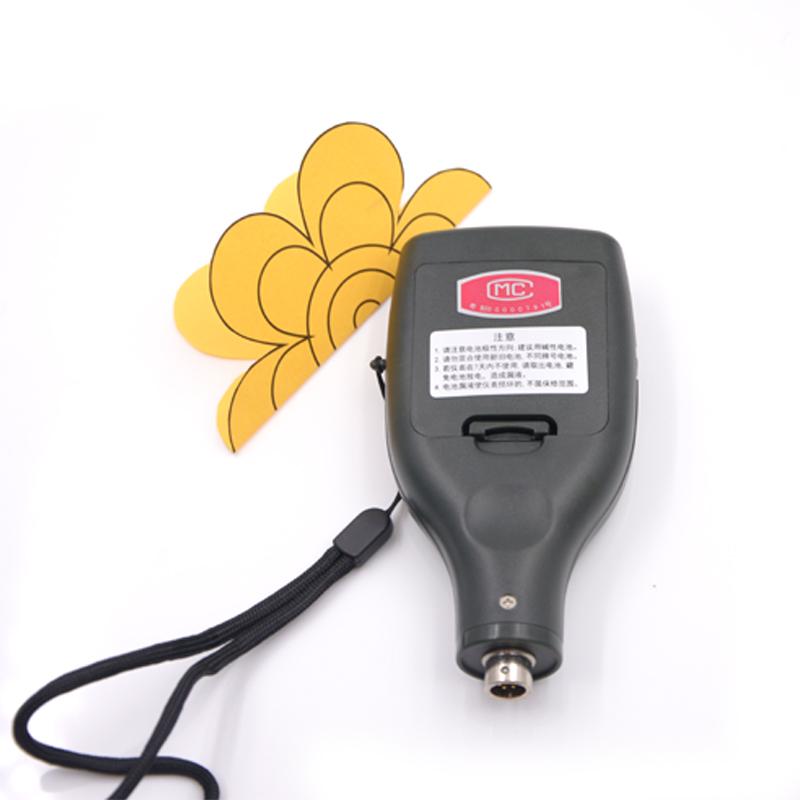

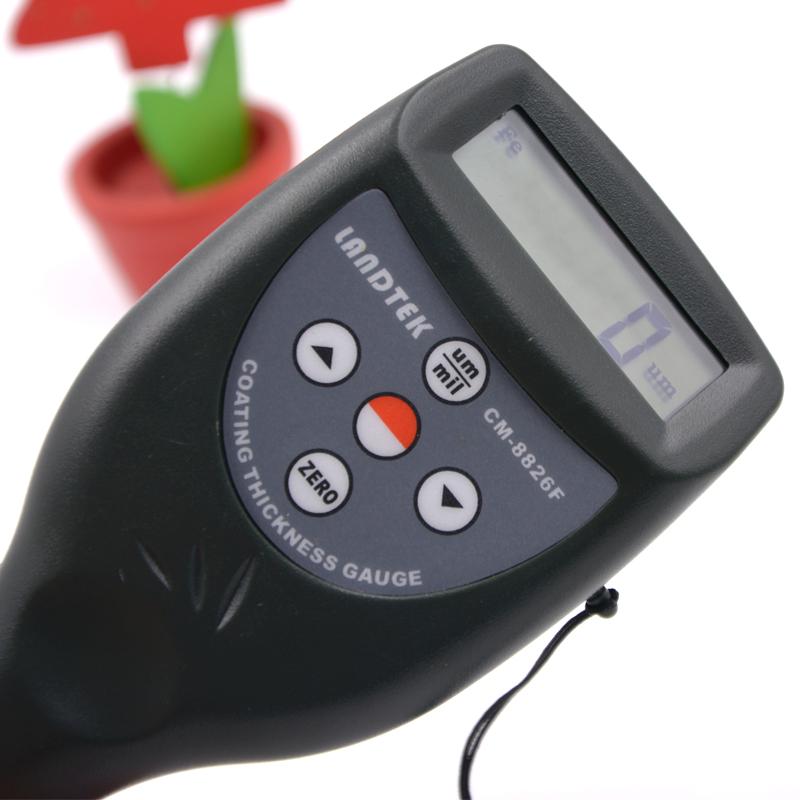

Pictures

Features and advantages

* CM8826fn paint layer Thickness Gauge is a dual-purpose coating Thickness Gauge for iron-based and non-ferrous-based coatings.

* Two measurement methods: single and continuous.

* CM8826fn paint layer Thickness Gauge can convert metric/imperial units.

* It has functions such as manual shutdown, automatic shutdown and underVoltage reminder.

* Automatically memorize the calibration value and automatically identify the material of the measured substrate.

* There is a buzzer sound during operation, but the buzzer does not sound during continuous measurement.

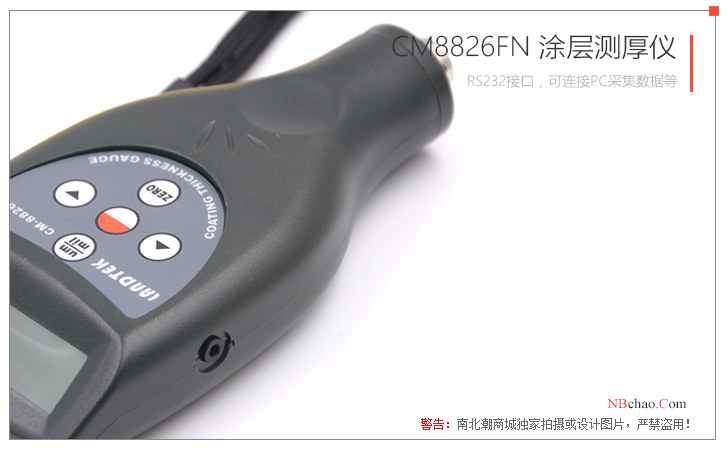

* With RS-232C interface, use RS-232C data connection line and software to communicate with PC.

* Optional Bluetooth™ data output option is also available.

* Split type, providing a variety of probes, more mobile measurement.

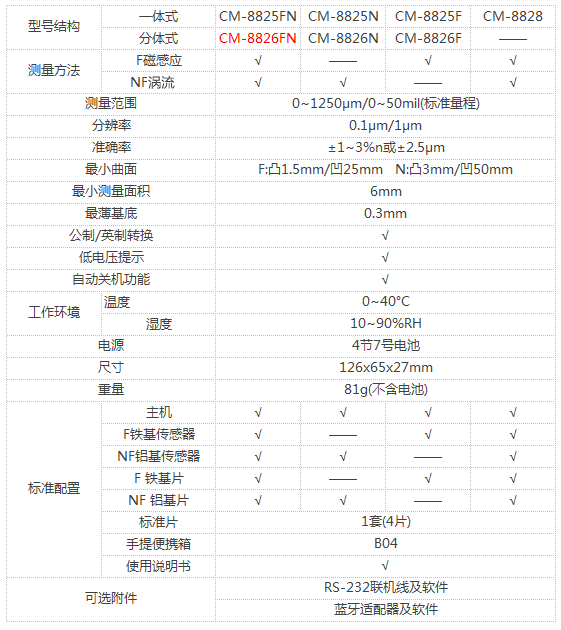

Selection reference chart

LANDTEK Coating Thickness Gauge Selection List

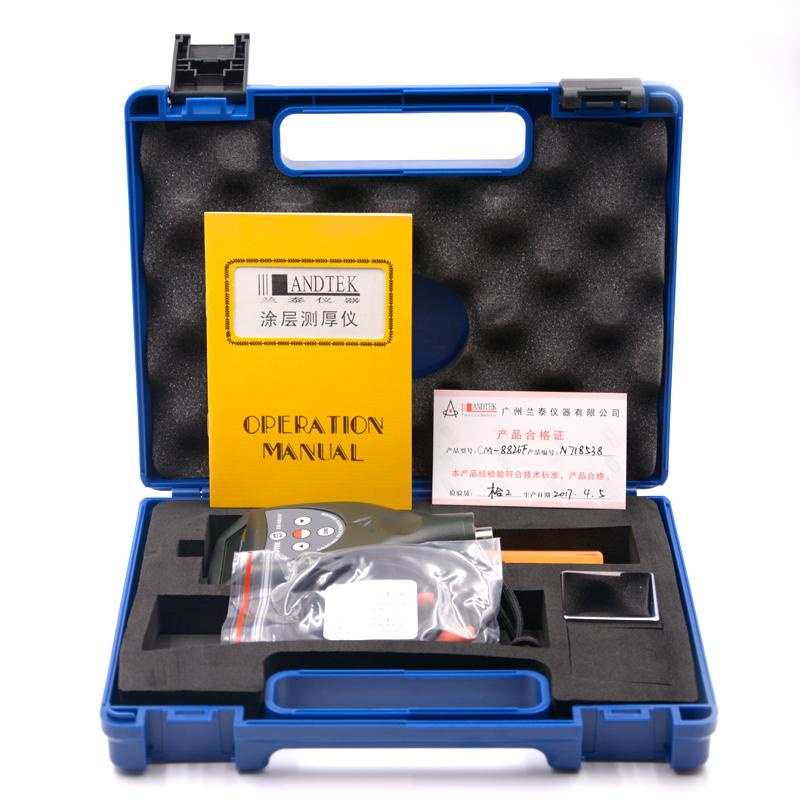

Packing list：host x1, probe (iron-based/eddy current) x1 each, reference block (iron-based/aluminum-based) CTG-BS x1 each, calibrated diaphragm CTG-CFx4, portable box x1, manual x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
