High-precision ultrasonic Thickness Gauge DC-6000 Deguang Electronics, suitable for high-precision measurement of ultra-thin parts

SE
The measuring range of Deguang Electronics DC-6000 high-precision ultrasonic Thickness Gauge is T~ E: 1.5~ 20mm E-E: 0.2mm~ 10mm, probe frequency 15MHz, probe style S1507, single crystal probe, measurement error ± 0.04mm (Film thickness < 9.99mm), ± (0.1% Film thickness value + 0.04) mm Film thickness value = 10~99.9mm, display resolution 0.001mm/0.0001inch.
$2421.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT OI
Similar products

DGC DC-6000 Ultrasonic Thickness GaugeSPEC

DGC DC-6000 Ultrasonic Thickness GaugeDetails

DGC DC-6000 Ultrasonic Thickness GaugePacking list

SKU
NB027632
Measuring range
T~E：1.5~20mm E-E：0.2mm~10mm
Probe frequency
15MHz
Probe style
S1507, single crystal probe
Measurement error
± 0.04mm (Film thickness < 9.99mm), ± (0.1% Film thickness value + 0.04) mm Film thickness value = 10~99.9mm
Display resolution
0.001mm/0.0001inch
unit system
mm/inch
Measurement mode
Average measurement, 2 to 9 times optional
Measurement speed
2 sec/sec or 10 times/sec fast measurement mode
Storage Capacity
100 groups of files, each group of files can store 100 data, a total of 10,000 data
Sound speed range
1000~9999m/s
Display
320 * 240 color screen display
Operating language
Chinese
Operating Temperature
-20~50℃
Power
2 * AA battery
Host size
133*75*29mm
Weight
260G (including battery)
DC-6000
Ultrasonic Thickness Gauge

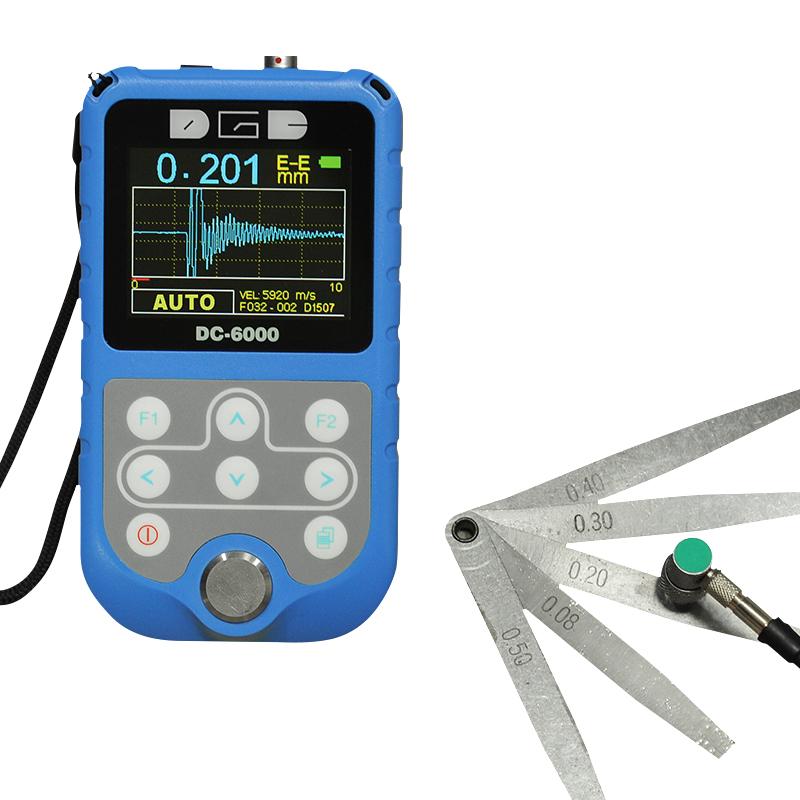

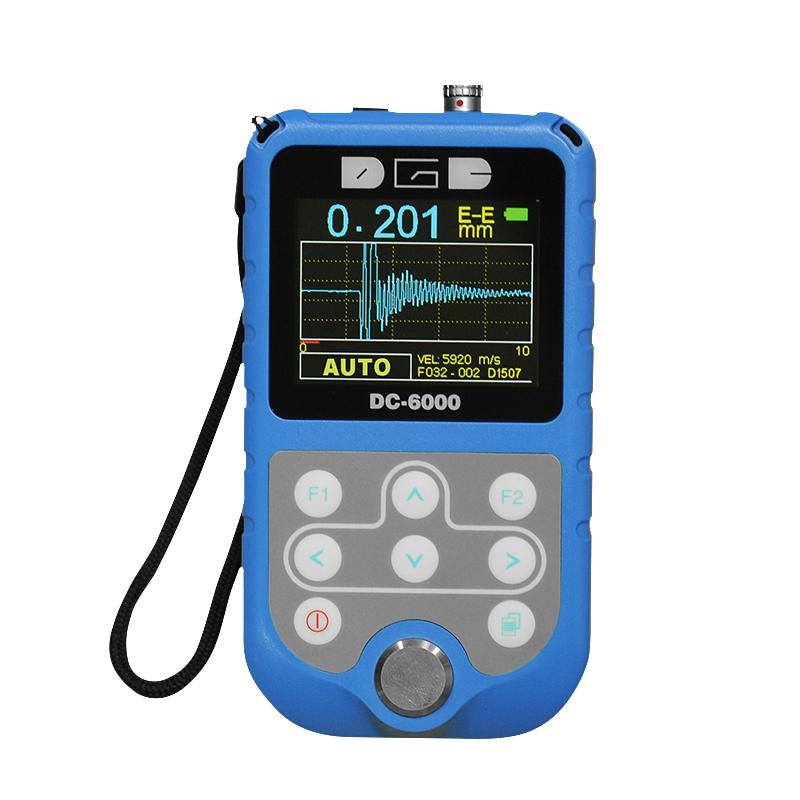

High-precision ultrasonic Thickness Gauge DC-6000 Deguang Electronics, suitable for high-precision measurement of ultra-thin parts Picture

features

·A/B scan, large-screen color display 320×240.

Resolution 0.001mm, measuring range: echo-echo 0.2mm-10mm. Transmit-echo: 1.5mm-20mm

·Standard configuration 15MHz single crystal probe S1507, especially suitable for ultra-thin parts.

·Probe automatic identification and automatic zero calibration.

·Automatic positioning of bottom echo.

·Automatic measurement and manual measurement are optional.

100 files X 100 data/folder.

·Data transfer without software, suitable for any Windows operating system.

The user removes the probe, and the measurement data is frozen on the LCD, which is convenient for the user to view.


FAQ
QWhat is the resolution of this Ultrasonic Thickness Gauge?
A Hello, it is 0.001mm/0.0001inch.
QDoes this ultrasonic thickness gauge meet the ZBN 77001 standard?
A This ultrasonic thickness gauge is suitable for ZBN 77001. Please consult customer service for detailed application definition.
