Xiangmin XM-CP001 Automatic Burst Strength Testing Machine

Operation mode of Xiangmin XM-CP001 automatic bursting Strength Tester Touch screen operation, Display mode LCD display, analysis degree 1/20000, unit kgf/cm2, psi (lbf/in2), kpa (three units are converted to each other), error of indication +/- 0.5% FS, indication variability ≤ 0.5%.
Model：
Certificate
Contact
Details SPEC CAT
Similar products

xiangmin XM-CP001 Automatic bursting Strength TesterSPEC

xiangmin XM-CP001 Automatic bursting Strength TesterDetails

xiangmin XM-CP001 Automatic bursting Strength TesterPacking list

SKU
NB027643
Operation mode
Touch screen operation
Display
LCD display
Analysis
1/20000
unit conversion
Kgf/cm2, psi (lbf/in2), kpa (three units are converted to each other)
Error of indication
±0.5%FS
Indication variability
≤0.5%
Clamping Force
>690Kpa
System sealing
1Min pressure drop < 10% Pmax
Resolution
1kPa
Displacement
(0.02~0.3) m3 /min
air source pressure
( 0.6~0.7) Mpa
Weight
About 50Kg
Hydraulic oil
Glycerin 85%, distillation water 15%
Clamp ring diameter
Upper ring: high Voltage type Should be 31.50mm Lower ring: high Voltage type Should be 31.50mm
Dimensions
410*430*560mm
Power supply Voltage
AC220V , 50Hz 120W
Measurement range
250~5600kPa
Oil delivery speed
170±15mL/min
XM-CP001
Automatic bursting Strength Tester

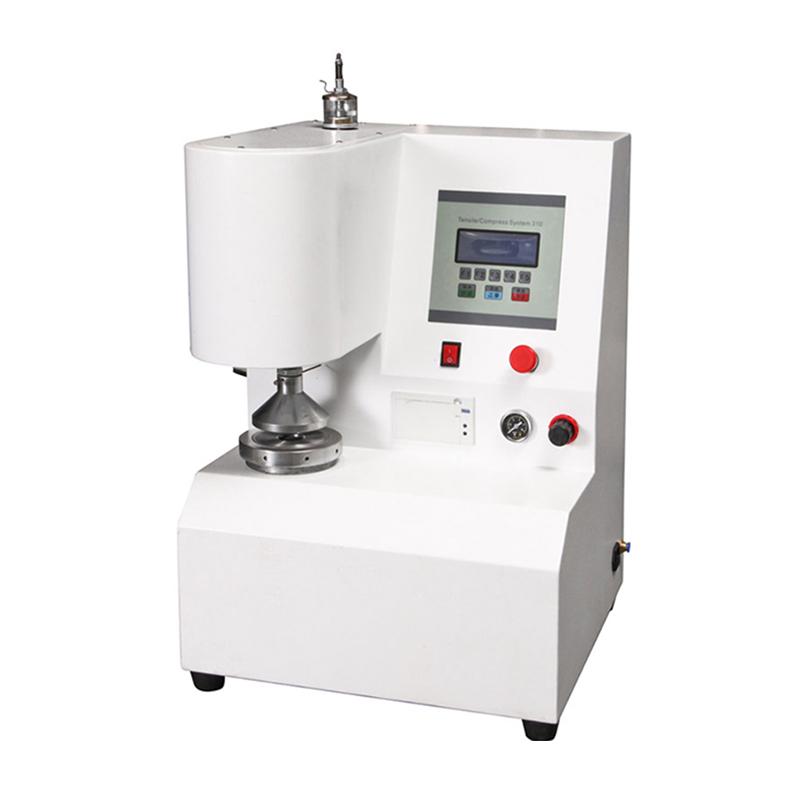

Xiangmin XM-CP001 Automatic Burst Strength Testing Machine Picture

Features

1. Adopt professional microcomputer detection and control system and digital signal processing technology to ensure the accuracy of test data

2. Touch screen display

3. With fast, high-quality micro printer and complete and detailed test data report

4. It has power-down protection test data

According to the standard:

GB/T-1539

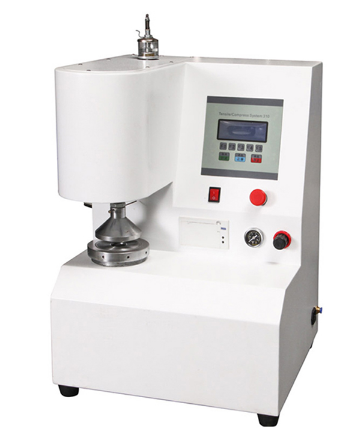

Xiangmin Instrument XM-CP001 Automatic Burst Resistance Tester Details Figure 1

FAQ
QDo you have the automatic bursting strength testing machine involved in GB/T10335.5?
A The XM-CP001 automatic bursting strength testing machine can be used.
