Xiangmin XM-1220S servo automatic vertical insertion force testing machine

The specified maximum load of Xiangmin XM-1220S servo automatic vertical insertion force testing machine is 50, 20, 10, 5, 2Kg (choose 1), the minimum analysis degree is 0.01, the maximum measurement height is 200mm, the minimum fine-tuning distance is 0.01mm, the measurement speed range is 0-200mm/min, the X. Y axis moving range is 0-75mm, and the height of the machine column is 1000mm.
Model：
Certificate
Contact
Details SPEC CAT
Similar products

xiangmin XM-1220S Servo automatic vertical insertion force testing machineSPEC

xiangmin XM-1220S Servo automatic vertical insertion force testing machineDetails

xiangmin XM-1220S Servo automatic vertical insertion force testing machinePacking list

SKU
NB027668
Maximum specified load
50, 20, 10, 5, 2Kg (choose 1)
Minimum analysis
0.01
Maximum measurement height
200mm
Minimum trim distance
0.01mm
Test speed range
0~200mm/min
X. Y-axis moving range
0-75mm
Machine column height
1000mm
Machine column spacing
240mm
Transmission mode
Ball screw
Dimension
400*300*1000mm
Weight
75Kg (machine)
Power supply Voltage
AC220V
XM-1220S
Servo automatic vertical insertion force testing machine

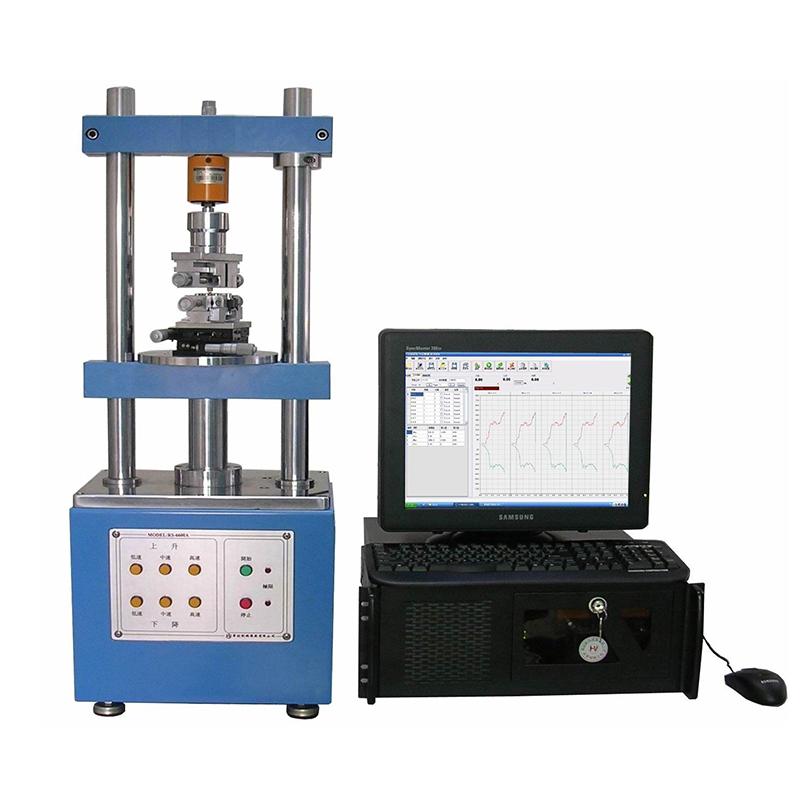

Xiangmin XM-1220S servo automatic vertical insertion force testing machine Picture

Introduction

Solve the fixture problem of various connector tests, and the male and female connectors can be automatically aligned during the test, and there will be no unilateral problem.

This machine is suitable for the insertion force and pull-out force test of various connectors, with the design of the automatic centering device, will be able to get a completely accurate plugging force test, the use of WINDOWS, window Chinese screen setting, the operation is simple and convenient, and all data can be stored (test conditions, displacement curve, life curve, inspection report---- etc.)

Test items

★ Connector single-hole mating test

★ Connector full row mating test

★ Connector mating and unplugging life test

★ Connector single pin and plastic retention test

★ General compression, tensile failure test

★ Forward force segmentation test

★ Can be connected to the contact impedance machine at the same time (optional)

Machine features:

※Printable and stored graphics (plugging displacement graph, life curve graph, inspection report)

※The test data is stored on the hard disk (each data can be stored for unlimited times)

※The test conditions are set by the computer screen, which is convenient and fast (including plugging and unplugging stroke, speed, pause time, etc.)

※The content of the header of the inspection report can be modified at any time (both Chinese and English)

※THE INSPECTION REPORT CAN BE CONVERTED TO EXCEL.ACCESS FOR EDITING
