Xiangmin XM-ZY001 Needle Flame Tester

The needle combustion device of Xiangmin XM-ZY001 needle flame Tester is made of stainless steel, the inner hole is 0.5mm +/- 0.1mm, the outer diameter is less than or equal to 0.9mm, and the length is ≥ 35mm. The angle of the combustion device can be vertical (when adjusting and measuring the flame height) and inclined 45 ° (during the test).
Model：
Certificate
Contact
Details SPEC CAT

xiangmin XM-ZY001 Needle flame TesterSPEC

xiangmin XM-ZY001 Needle flame TesterDetails

xiangmin XM-ZY001 Needle flame TesterPacking list

SKU
NB027676
Needle combustion device
Stainless steel, inner hole φ 0.5 +/- 0.1mm, outer diameter ≤ φ 0.9mm, length ≥ 35mm
Combustion angle
Vertical (when adjusting and measuring flame height) and tilted 45 ° (when testing)
Ignition paving layer
10Mm thick white pine board, covered with 12g /m2~ 30g/m2 standard silk paper, 200mm +/- 5mm from the flame application
Combustion gas
95% butane gas (base gas), propane gas can also be used
Gas flame temperature layer
100 ℃ +/- 2 ℃~ 700 ℃ +/- 3 ℃ (room temperature~ 999 ℃), 23.5s +/- 1.0s (1s~ 999.9s)
flame height
12Mm +/- 1mm (adjustable)
Flame time
5S, 10s, 20s, 30s, 60s, 120s~ 1 + 0 s (1s~ 999.9s digital display can be preset)
holding time
1S~ 999.9s (digital display, can be manually paused to hold digital display)
Test space
≥ 0.5m3, background black or 1m3
Thermocouple
Equipped with K-type 0.5mm insulated armored couple, the armored sleeve is heat-resistant to 1100 ℃
Exhaust hole size
100mm
Test Power Supply
220V 0.5kVA
XM-ZY001
Needle flame Tester

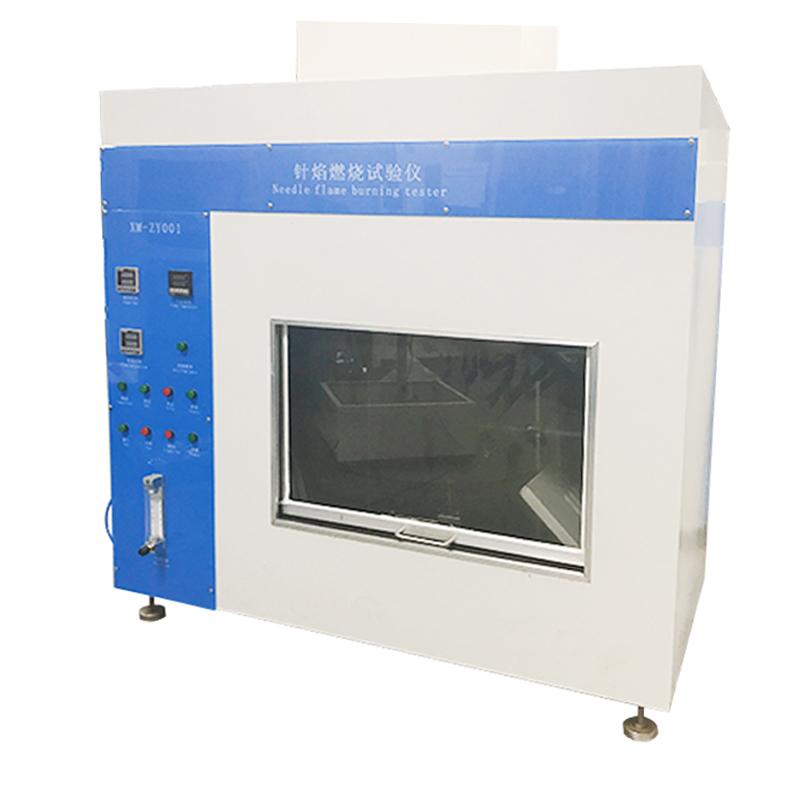

Xiangmin XM-ZY001 Needle Flame Tester Picture

Introduction

Usage: The needle flame Tester is IEC 6 0695-11-5:2004, IEC60695-11-5, GB/T5169.5-2008, GB4706.1-2005 needle flame test is to use a needle burner of specified size (0.9mm), through a specific gas (butane or propane), at a 45° angle timing directional combustion of the test product, The ignition hazard of small flames caused by fault conditions in the equipment is evaluated according to whether the test sample and the ignition bedding layer are ignited, the ignition time and combustion length are evaluated.

The needle flame Tester is suitable for the research, production and quality inspection departments of electrical and electronic equipment and its components and components, such as lighting, low-Voltage electrical appliances, household appliances, machine tool appliances, motors, power tools, electronic instruments, electrical instruments, information technology equipment, electrical affairs equipment, electrical connectors, accessories, etc., and is also suitable for insulating materials, engineering plastics or other solid combustible materials industry.
