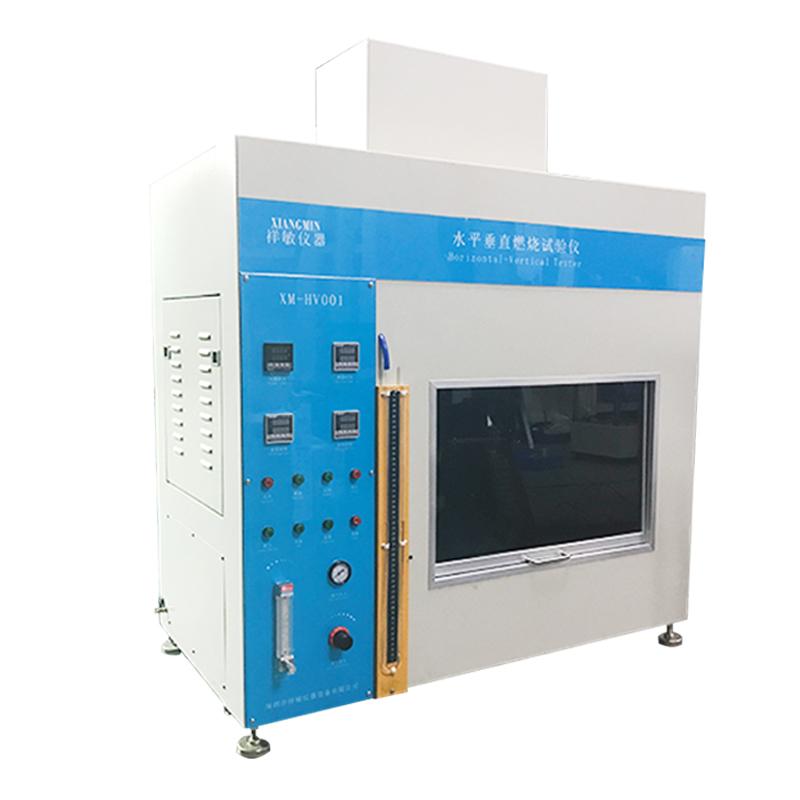

Xiangmin XM-HV001 vertical and horizontal combustion testing machine

XM-HV001

Vertical and horizontal combustion testing machine

Meets standards

The horizontal and vertical combustion Tester is IEC60950; 1999; UL 94、IEC 707、IEC 695-2-2、ISO1210; 1992; ISO9772-2001, UL746C and other standards specified in the simulation safety test items.

Introduction

The flammability test uses a Bunsen burner of a specified size and a specific gas source (methane or natural gas) to burn the sample in a horizontal or vertical state several times according to a certain flame height and a certain flame angle, and evaluates its flammability by the duration of ignition and burning of the sample and whether the igniter laid under the sample is ignited.

This flammability Tester can protect the fire protection enclosure of mobile equipment with a total mass of more than and no more than 18kg; fireproof enclosures for standing equipment; materials housed in a fireproof enclosure; V-0, V-1, V-2, HB, 5V, HF-1, HF-2, HBF grade materials or foams are rated for flammability. It is suitable for the research, production and quality inspection departments of electrical and electronic products and their components such as lighting equipment, low-Voltage electrical appliances, household appliances, machine tool appliances, motors, power tools, electronic instruments, electrical instruments, information technology equipment, electrical affairs equipment, electrical connectors and accessories, and is also suitable for insulating materials, engineering plastics or other solid combustible materials industry. Lamps and lanterns Bunsen burner tube diameter 9.5mm ± 0.5mm from the main air inlet or inlet upwards length of about 100mm, etc

Bunsen lamp nozzle shape cylindrical lamp port and stainless steel fishtail lamp port ( replaceable )

The test inclination angle of the lamp is 0°, 20°, 45 and 90, and the maximum stroke is about 150mm.

The flame height is adjusted from 20mm to 175mm.

Packing list：whole machine X1, operation manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
