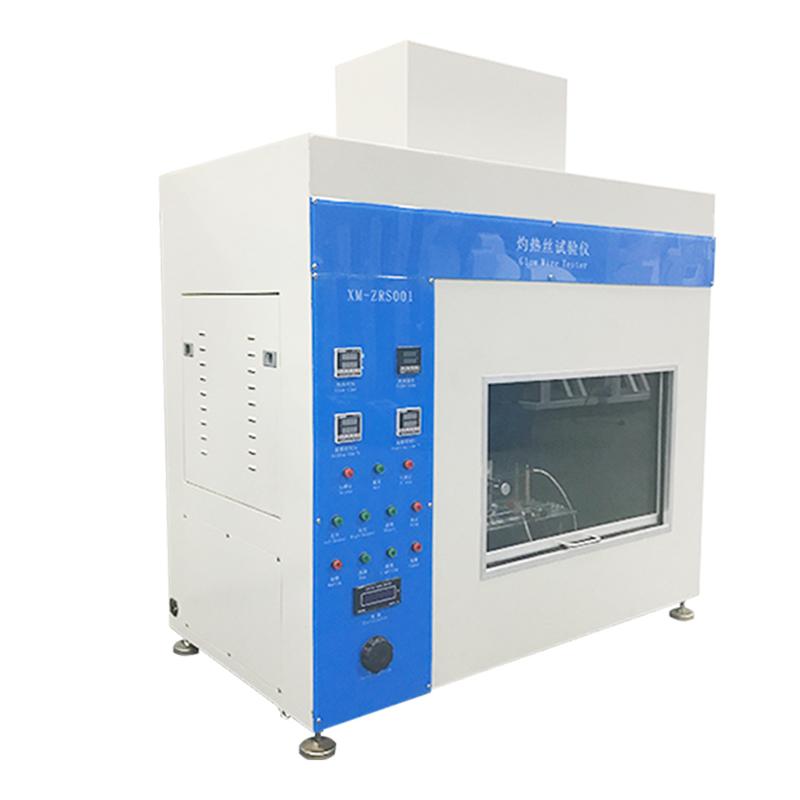

Xiangmin XM-ZRS001 Glowing Wire Testing Machine
The temperature of the scorching wire of Xiangmin XM-ZRS001 scorching wire testing machine is continuously adjustable at 500~1000 ℃ +/- 2 ℃, the scorching time is 0-999.9s +/- 0.1s adjustable (generally selected as 30s), the ignition time is 0-999.9s +/- 0.1s, automatic recording, manual pause, Thermocoupler (K type) Imported armor (K type) Thermocouple, scorching wire is 4mm nickel-chrome wire.
Model：
XM-ZRS001
Similar products
xiangmin XM-ZRS001 Glow-Wire testing machineSPEC
xiangmin XM-ZRS001 Glow-Wire testing machineDetails
xiangmin XM-ZRS001 Glow-Wire testing machinePacking list
- SKU
- NB027679
- Glowing wire temperature
- 500~1000 ℃ +/- 2 ℃ continuously adjustable
- Flame time
- 0~999.9S +/- 0.1s adjustable (generally selected as 30s)
- ignition time
- 0-999.9S +/- 0.1s, automatic recording, manual pause
- afterflame time
- 0-999.9S +/- 0.1s, automatic recording, manual pause
- Thermocouple
- φ 0.5mm imported armoured (K type) Thermocouple
- Glowing wire
- φ 4mm nickel-chrome wire
- Burning depth
- 7mm±0.5mm
- sample pressure
- 1N±0.2N
- Test speed
- 14mm/s
- experimental background
- Black Background
- Test process
- Test program automatic control, independent ventilation
- reference standard
- GB/T5169.10-2006 , IEC60695-2-10：2000，UL746A
- Studio Volume
- 0.5m3
- Equipment external Dimensions
- 1000Mm wide × 650mm deep × 1300mm high

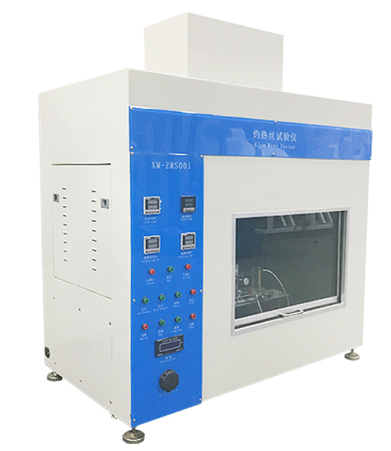

XM-ZRS001
Glow-Wire testing machine
Introduction
The glow wire Tester heats the heating wire (nickel-chromium wire of Φ4mm) of the specified material (Ni80/Cr20) and shape with a high current to the test temperature (550 °C ~ 960 °C 1mi), and burns the sample vertically at the specified pressure (1.0N) for 30s, and determines the fire hazard of the finished electrical and electronic equipment according to whether the test sample and bedding are ignited or the ignition time is held; Determination of flammability, ignition temperature (GWIT), flammability and flammability index (GWFI) of solid insulating materials and other solid combustible materials.
