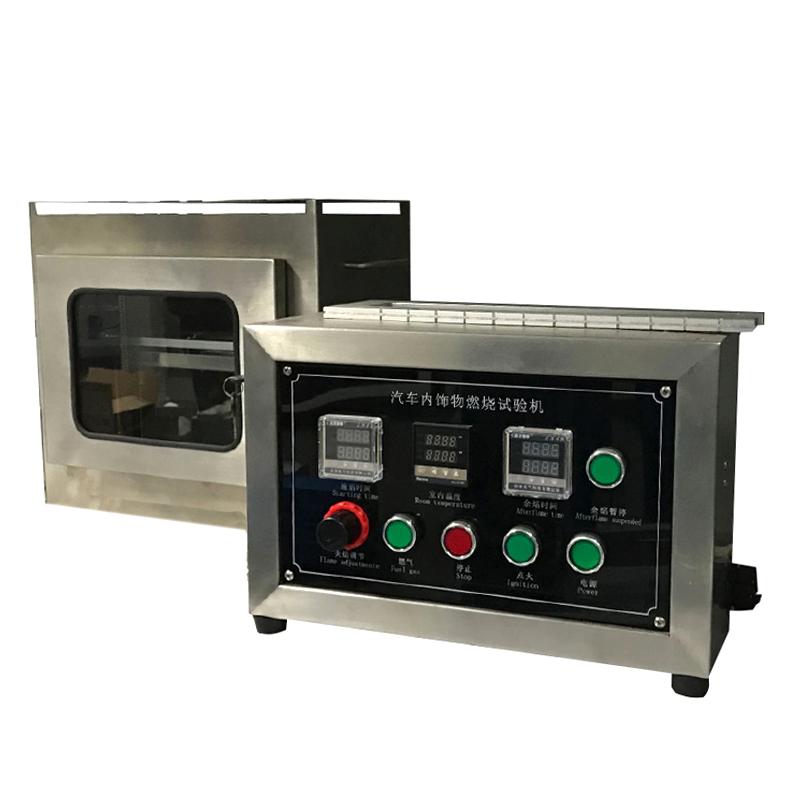

XM-C001 Automotive interior combustion testing machine
XM-C001
xiangmin XM-C001 Automotive interior combustion testing machineSPEC

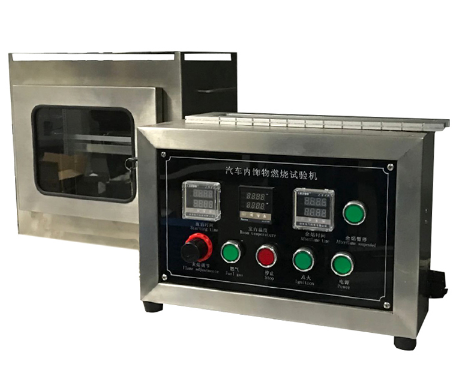

xiangmin XM-C001 Automotive interior combustion testing machineDetails
xiangmin XM-C001 Automotive interior combustion testing machinePacking list
- SKU
- NB027681
- Combustion chamber size
- Width x Height x Depth: 385x 360x 204mm
- Ventilation hole/ventilating slot size
- There are 10 ventilation holes with a diameter of 19mm at the bottom, and there are 13mm wide ventilating grooves around the four walls near the top
- test bracket
- Made of two U-shaped corrosion-resistant metal steel plates,
- Test bracket size
- Length x width 361x100mm
- Flame time
- 0~99.99/S/M/H can be set arbitrarily
- afterflame time
- 0~99.99/S/M/H can be set arbitrarily
- Nozzle inner diameter
- 9.5Mm with flame adjustment function
- flame height
- 38mm
- gas source
- Natural gas or gas
- Metal comb
- Length: greater than 110mm, each 25mm contains 7 to 8 smooth teeth
- steel ruler
- Length 400mm, Accuracy 1.0mm
- thermometer
- Range greater than 150 ℃ with Accuracy of +/- 1 ℃
- Power supply Voltage
- 220V 50HZ
Introduction
1. The combustion test of automotive interior materials is mainly a simulated combustion performance safety test item according to the national standard GB8410-2006 and other standards.
2、The combustion test of automotive interior materials is to use a specified size of Bunsen burner and a specific gas source (liquefied petroleum gas or coal gas) to flame the horizontal state of the automotive interior material for a certain period of time according to a certain flame height and a certain flame angle, and evaluate its flammability and fire hazard by the ignition, duration and combustion length of the sample.
3、The combustion Tester of automotive interior materials is mainly for qualitative evaluation of the flammability of automotive interior materials. It is suitable for the research, production and quality inspection departments of various types of automotive interior material manufacturers and their material components, as well as in the insulating materials, engineering plastics or other solid combustible materials industries.
Equipment specifications
1. The chassis is welded with stainless steel plate;
2. High-precision timer accurately controls the burning time;
3. Precision pressure control valve with combustion blowtorch to adjust the flame height;
4. Type K armored thermocouple with temperature control instrument to display flame temperature;
5. The flame application time can be set, and the flame will be automatically extinguished when the time reaches the set value;
6. The afterburn time starts automatically and stops manually;
Transparent tempered glass observation window, convenient to observe the combustion situation in the box;
Features
The combustion box adopts a mirrored stainless steel plate structure.
The combustion time and stop time can be set arbitrarily.
