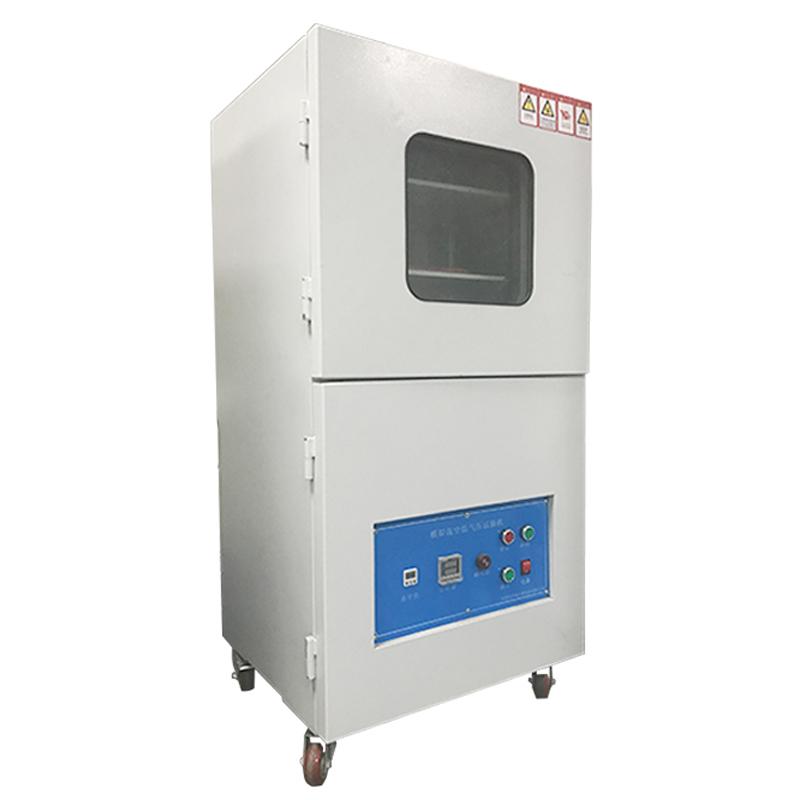

Xiangmin XM-GK001 battery simulation high altitude low Voltage testing machine
XM-GK001
xiangmin XM-GK001 Battery simulation high altitude low Voltage testing machineSPEC

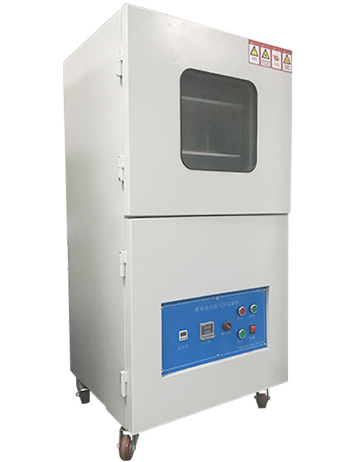

xiangmin XM-GK001 Battery simulation high altitude low Voltage testing machineDetails
xiangmin XM-GK001 Battery simulation high altitude low Voltage testing machinePacking list
- SKU
- NB027682
- Studio Specifications
- 300mm×300mm×300mm（W×H×D）
- Dimension
- Subject to the actual product
- Product Structure
- Upper/Lower type, upper product room, lower electric control panel, built-in vacuum pump
- Glass window size
- 100*100mm
- Liner material
- 304 #stainless steel sand board
- Enclosure Material
- Cold plate, thickness 1.5mm, powder paint treatment
- Sealing material
- High temperature resistant silicone
- Timer Timing range
- 1 second to 99 hours (you can choose to set hours, minutes, seconds)
- Vacuum range
- 0 to -0.1Mpa, digital pressure gauge
- pressure fluctuation
- < 2Kpa (vacuum degree ≤ 133Pa)
- Pressure Accuracy
- 0.1Kpa
- Precision
- 1Kpa
- Control mode
- Manual start, stop, pressure relief
- Power
- 550W/220V
Introduction
It is suitable for simulating the battery to reach the storage state of the sample at low air pressure in a short time, and can automatically control the test cycle, monitor the air pressure change in the box throughout the process, and realize the automatic termination of the test.
Time system
1. Timer setting, 1 second to 99 hours (you can choose to set hours, minutes, seconds)
2. After the vacuum test time is completed, the automatic pressure relief will alarm at the same time.
Sealed and trueEmpty display
1. The machine adopts silicone sealing strip with high tightness to ensure the tightness of the whole machine;
2. At the same time, the pointer vacuum gauge is used to display the real-time vacuum degree in the box, so that you can understand the vacuum status in the box in real time;
3. Vacuum range: 0 to -0.1Mpa, digital pressure gauge; (vacuum≤133Pa) pressure fluctuation <2Kpa, pressure accuracy 0.1Kpa, Accuracy 1Kpa;
4. Control mode: manual start, stop, pressure relief;
5. Two-stage rotary vane type, 4 liters direct-connected Vacuum Pump, power 550W/220V
