INESA WGT-S light transmitance haze Tester

SE
It adopts parallel lighting and integrating sphere photoelectric receiving mode, and has a microcomputer automatic operation and data processing system, which is easy to operate, has no zero drift, and has accurate measurement results. Its open sample window supports samples of various sizes, with fast measurement speed and is not affected by environment light
$2533.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT

INESA WGT-S Light transmitance haze meterSPEC

INESA WGT-S Light transmitance haze meterDetails

INESA WGT-S Light transmitance haze meterPacking list

SKU
NB027963
Light source
C Light source (6774K)
Measurement range
Light transmitter 0-100%; Haze 0-99% (0-30% absolute measurement); (30.1-99% relative measurement)
Minimum indication
Light transmitance 0.1%, haze 0.01%
error of indication
Light transmitter error of indication ： +/- within 1% (standard neutral gray sheet ）； +/- 2% (standard haze sheet); haze indication relative error ： +/- 5%
Repeatability
Light transmitter Repeatability: ≤ 0.5%; Haze Repeatability: ≤ 0.2
Sample window size
Entry window Should 23mm Exit window Should 21mm
Display
digital tube
communication interface
USB
Power Supply
220V±22V，50Hz±1Hz
Dimension
710*270*280mm
Net Weight of instrument
19kg
WGT-S
Light transmitance haze meter
It adopts parallel lighting and integrating sphere photoelectric receiving mode, and has a microcomputer automatic operation and data processing system, which is easy to operate, has no zero drift, and has accurate measurement results. Its open sample window supports samples of various sizes, with fast measurement speed and is not affected by environment light

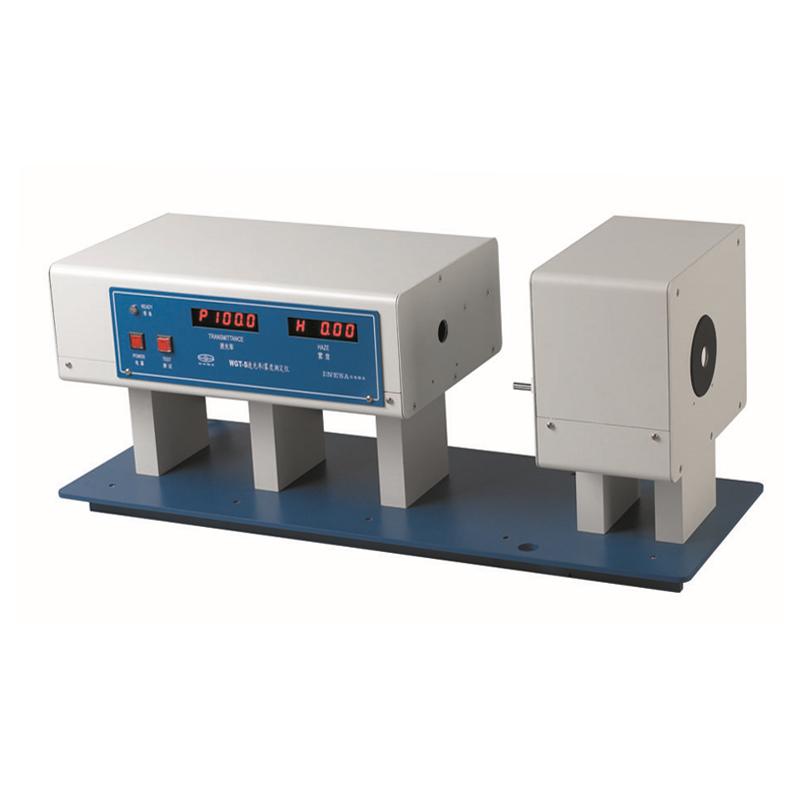

INESA WGT-S light transmitance haze Tester Picture

Features

The technical parameters conform to GB/T2410-2008, ASTM D1003-2007, JIS K7105-81 and other test standards, which is conducive to technical exchanges at home and abroad.


Parallel illumination, hemispherical scattering, integrating sphere photoelectric receiving mode, microcomputer automatic operating system and data processing system, no knob operation, easy to use, and standard USB interface, automatic display of transmittance/haze multiple measurements of the average value, no zero point drift, strong confidence.


Specific design – the open sample window is virtually independent of the sample size and the measurement speed is fast. Due to the action of the modulator, the instrument is not affected by ambient light.


FAQ
QCan you measure the transparency of liquids?
A Sure.
QDo you recommend a light transmitter haze meter that needs to test liquids and solids with an error of less than 1%?
A WGT-S light transmitance haze meter, technical parameters meet the relevant requirements of GB/T2410-2008, ASTM D1003-2007, JIS K7105-81 and other standards
QIs the coating test light transmitance on the transparent plastic plate OK?
A Sure.
QCan this light transmitter meet the requirements of ultraviolet light (300~ 420nm) and visible light (300~ 1000nm)?
A Sure.
QTo meet the HG/T4009 light transmitance haze meter
A WGT-S light transmitance haze meter, please refer to it.
