Rongjida DKZ-10 electric sheet bending Tester, test force 20KN

Rongjida DKZ-10 electric plate flexural Tester is used for flexural strength testing of square non-metallic plates, with a test force of 20KN. The load resolution of DKZ-10 flexural Tester is 1N, and the test space range is 150mm.
Model：
Certificate
Contact
Details SPEC

RongJiDa DKZ-10 Bending testing machineSPEC

RongJiDa DKZ-10 Bending testing machineDetails

RongJiDa DKZ-10 Bending testing machinePacking list

SKU
NB028144
Maximum test force
20KN
Effective detection range
1% of the maximum experimental force
Load resolution
1N
Load measurement Accuracy
Within ± 1% of the indication
Test speed
1mm-50mm/min
Test space range
150mm
Specimen range
1300×600mm
Drive mode
Servo motor drive
Power
Single-phase AC 220V/50Hz, motor power 550 W
Dimensions
1400*1200*1500mm
Weight
​220KG
DKZ-10
Bending testing machine

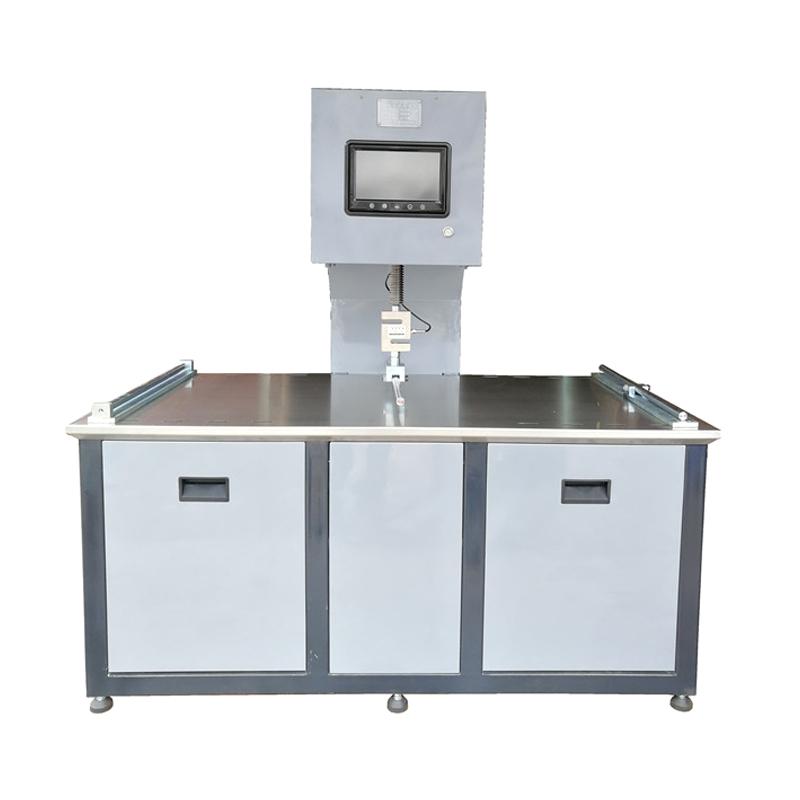

Rongjida DKZ-10 electric sheet bending Tester, test force 20KN Picture

Introduction

The electric plate flexural testing machine is suitable for the flexural strength test of non-metallic plates. The testing machine has a beautiful appearance and exquisite workmanship. It adopts a servo control system and can realize uniform loading with high efficiency and good stability. Adopt touch screen control, friendly man-machine interface. The instrument is equipped with travel limit and positive and negative force overload protection functions. It has the characteristics of adjustable test speed, high load measurement accuracy and convenient operation. It is suitable for factories, construction engineering quality inspection stations, construction companies, product quality inspection institutes, scientific research institutions, road and bridge sites, etc., production inspection, development research and other fields.

Features

★Embedded Windows operating system environment measurement and control software, real-time display of test data, curves, automatic control of the test process, automatic test results after the end of the test, the software is easy to use;

★Using closed-loop control, it can realize three loading methods of force velocity, displacement velocity and programming, which can meet the test requirements of different standards.

★Adopt servo control system to precisely control the detection process.

★Adopt touch screen control, which is convenient for man-machine dialogue.

★There are stroke limit and positive and negative force value overload protection functions inside the testing machine to prevent damage to the testing machine caused by misoperation.

Standards

DB37/T5067-2016 FS external formwork cast-in-place concrete composite thermal insulation system application technical specification

GBT19631-2005 glass fiber reinforced cement lightweight porous partition wall slats

GBT 9772-2009 Fiber cement corrugated tiles and ridge tiles

GBT7019-2014 Test methods for fiber cement products

JCT851-2008 steel wire mesh asbestos cement small corrugated tile

JCT746-2007 concrete tile

GBT 3810.4-2016 Test methods for ceramic tiles Part 4: Determination of modulus of rupture and failure strength

JC899-2002 concrete curb

GBT 9775-2008 Gypsum board with paper surface

JC∕T 799-2016 Decorative plasterboard

JCT997-2006 decorative paper plasterboard

GBT 17657-2013 Test methods for physical and chemical properties of wood-based panels and veneered wood-based panels

GBT9966.2-2001 Test methods for natural facing stones Part 2: Test methods for dry and water saturated flexural strength

GBT30100-2013 Test method for building wall panels

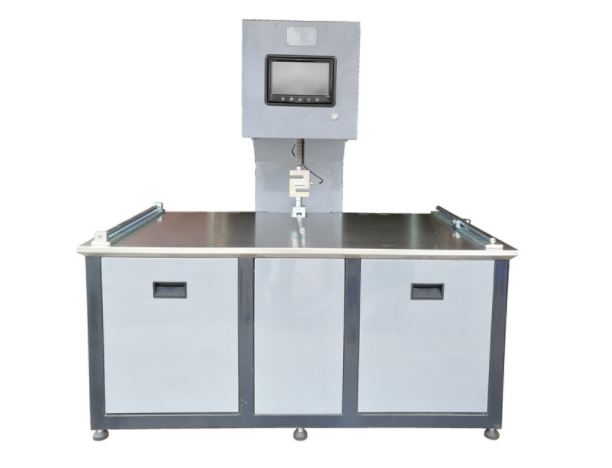

Rongjida DKZ-10 flexural testing machine details Figure 1

FAQ
QIs this the flexural testing machine mentioned in GB/T19250?
A OK
