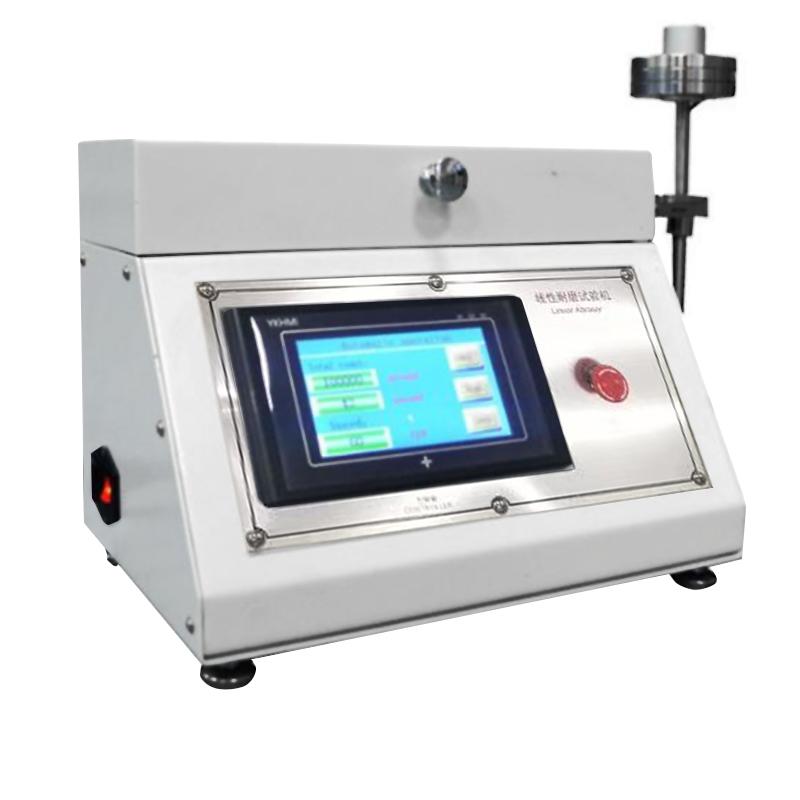

Farrell 5750 linear abrasIon Meter to evaluate wear resistance and scratch resistance

5750

Linear abrasion instrument

use

It is used to evaluate the abrasion resistance, scratch resistance (single or multiple scratches) and color transferability (usually camel color or crock fastness) of the product, etc. Both dry abrasion test and wet abrasion test can be carried out.

Application object: It can test samples of any size or shape. It is very satisfactory for the abrasion test of products with contoured surface and polished surface characteristics (such as: computer mouse and other computer or IT products plastic surface paint abrasion resistance test), generally used for Plastics, auto parts, rubber, leather and textiles, electroplating, freely disassembled components, lacquers, printed graphics and more.

features

1. Parameters such as moving distance, speed, number of revolutions, and load can be set (Note 1).

2. A variety of different wear media and accessories can be selected. (The optional sample fixing table and other optional accessories can be used for hanging, damage test, alcohol resistance test, coin scratch resistance test, etc.)

To ensure the stability and accuracy of the test: the size and shape of the general grinding head is like the eraser head at the end of a pencil, and it is made of high-quality abrasive materials. Can ensure the stability of the test.

The linear abrasion Tester complies with CE standards. Taber 5750 Linear Abraser Meets Standards

ASTM D3884, ASTM D1175, ASTM D1044, ASTM D4060, TAPPI T476, ISO 9352, ISO 5470-1, JIS K7204, JIS A1453, JIS K6902, JIS L1096, JIS K6964, DIN 52347 , DIN 53109, DIN 53754, DIN 53799, etc. Various standards.

PLC color Chinese touch control

①5 optional moving distances: 0.5”, 1”, 2”, 3” and 4”; special moving distances can be customized.

②The number of revolutions can be set. It can be set up to 999,999 revolutions (note that the grinding head rubber may need to be replaced during this period).

③Adjustable moving speed of 2~60 back and forth/min. Among them, the six speeds of 2, 15, 30, 40 and 60 back and forth/minute are TABER standard measurements, and the maximum moving speed of the machine is 120 back and forth/minute.

④The load can be selected. The standard load ranges from 350g to 2100g (generally, 3 weights with a weight of 250g are randomly configured). Weights of various weights can also be customized.

Packing list：Host × 1, 250g disc-shaped weight × 3, L hexagonal wrench × 1, manual

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
