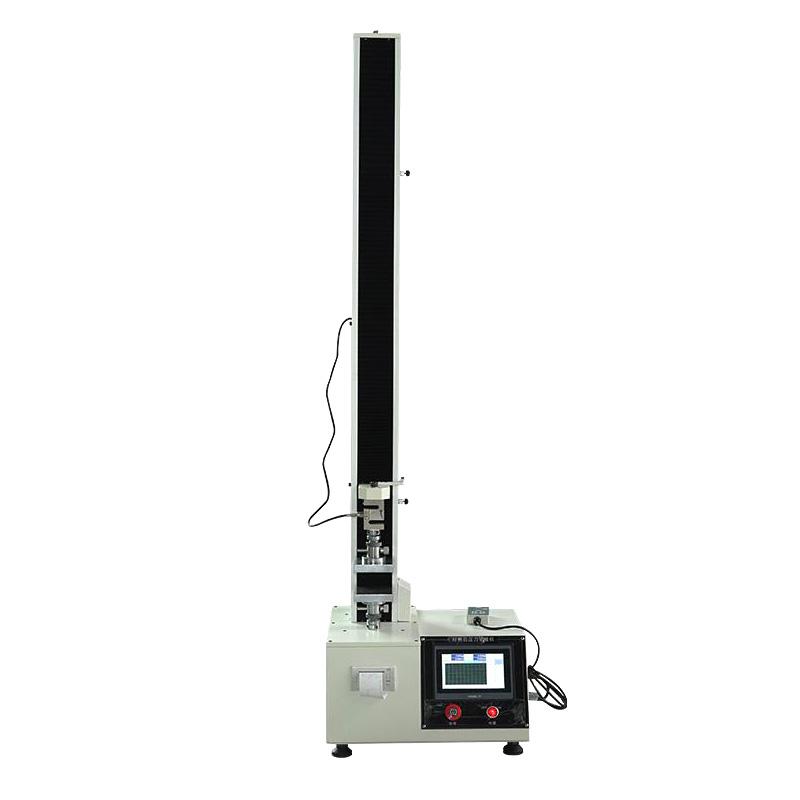

TENGFEI TF-103F-QM Single Column Touch Pressure Tester

TF-103F-QM

Pressure Tester

Introduction

This machine is a new generation of electronic multi-function testing machine specially designed for universities and scientific research institutes. The design of the testing machine host draws on international professional technology, with beautiful appearance, easy operation, stable and reliable performance. It is widely used in material inspection and analysis in construction and building materials, aerospace, machinery manufacturing, wire and cable, rubber and plastics, textiles, medical, home appliances and other industries. , is a satisfactory testing equipment for scientific research institutions, colleges and universities, industrial and mining enterprises, technical supervision, commodity inspection and arbitration and other departments.

The machine adopts a fully digital speed regulation system and motor with high speed regulation accuracy and stable performance as the driving system, a fully digital controller as the core of the control system, and a touch screen as the operating interface for control and data processing to achieve test force, test force peak, The displacement, test deformation and test curve are displayed on the screen, and all test operations are completed on the touch screen. Good humanized design makes the test operation easier. Combining the above technologies, the machine can achieve nearly perfect closed-loop control of parameters such as test force and displacement, and can realize control modes such as constant stress and constant displacement, and can switch smoothly between various control modes. This machine meets the requirements of national standards, and can conduct testing and data processing according to GB, ISO, JIS, ASTM, DIN and various standards provided by users, and has good scalability.

Implementation standards

ASTM, DIN, JIS, BS, GB/T528-1998/T529-1999, etc.

This machine can produce curve categories:

Load VS displacement, load VS time

Displacement VS time, stress VS strain, load VS two-point extension

Main features

A. High-precision force sensor: 0~1000N. Force accuracy is within ±1%.

B. Capacity segmentation: stepless speed change throughout the entire process, using high-precision 24 bits A/D, sampling frequency 200Hz, maximum resolution of the entire force 1/1000,000

C. Power system: servo motor + reducer + ball screw + linear bearing + high-precision sensor

D. The speed control system adopts servo speed control system and reduction motor, which has stable and reliable performance and has overcurrent, overVoltage, overload and other protection devices.

E. The transmission part adopts arc synchronous toothed belt and precision ball screw auxiliary transmission, which has stable transmission, low noise and high transmission efficiency.

F. Ensure the test concentricity and effectively eliminate the influence of irregular samples on the sensor.

G. Control system: The adjustment has fast coarse adjustment and slow fine adjustment functions. After the test, it will automatically return to the origin and save automatically.

H. Display mode: touch screen display

I. Control modes such as constant speed, positional displacement, and constant load (holding time can be set) and multi-level control modes can be realized to meet different test requirements.

L. Test space: test width is about 400 mm (standard specifications); joint plate walking space is 600 mm (excluding fixtures) (standard specifications)

M. Full displacement: Encoder 2500 P/R, 4 times higher accuracy. The LINE DRIVE encoder has strong anti-interference ability, and the displacement resolution is 0.001mm.

N. Safety devices: overload emergency stop device, upper and lower stroke limiting device, automatic power-off system due to leakage, and automatic breakpoint shutdown function.

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
