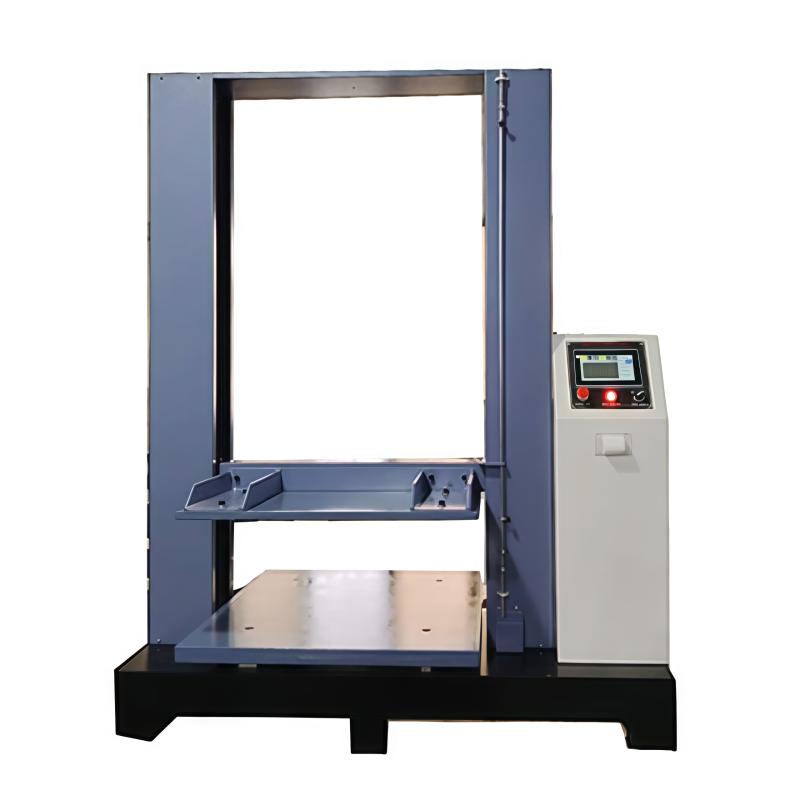

TENGFEI TF-203A Microcomputer carton compression testing machine, capacity 2T

SE
TENGFEI TF-203A carton compression testing machine is used for compression testing of Encasement body and carton, with a capacity of 2T. The TF-203A carton compression testing machine is controlled by microcomputer, with two force channels, and the analysis degree is 1/100000.
Model：
Certificate
Contact
Details SPEC CAT

TengFei TF-203A Microcomputer carton compression testing machineSPEC

TengFei TF-203A Microcomputer carton compression testing machineDetails

TengFei TF-203A Microcomputer carton compression testing machinePacking list

SKU
NB028216
Capacity
2T
control mode
Microcomputer control
Analysis
1/100000
error of indication
±1%
Plate size
800*800mm
Analysis
1/100000
Sampling frequency
400 times/second
Pressurization speed
5~100mm/min
Speed Accuracy
Indication +/- 1%
force channel
2
Voltage output
0~6V
output control
Inverter motor stepless speed regulation
printout
Automatically print reports, (Chinese) print (maximum power, average value, free point value, breakpoint ratio, date)
unit switching
N、kgf、Lbf
single test
Manual 10-point statistics, and automatically calculate the average value, maximum pressure resistance value, can store up to 5 groups
Overload protection function
Configurable
Power Supply
AC220V 5A
Weight
About 500KG
power
1.5kw
Working Travel
1000mm
TF-203A
Microcomputer carton compression testing machine
TENGFEI TF-203A Microcomputer carton compression testing machine, capacity 2T Picture

Applications

Packaging container compression testing machine is suitable for pressure resistance and pressure holding tests of various packaging bodies and cartons. The test results can be used as an important reference for the height of finished product packaging boxes in the factory or an important basis for designing packaging boxes. It can carry out tests according to national or international standards such as GB, ISO, ASTM, BS, DIN, JIS, etc. It is a satisfactory testing and research equipment for factories and enterprises, technical supervision departments, commodity inspection agencies, scientific research institutes, universities and other departments.

[Test Standard]: GB/T4857.4 GB/T4857.16 ISO2872, ASTM D642

[Production specification]: GB/T16491, TAPPI-T804, JIS-Z0212

Introduction

This machine is used to test the compression resistance of packaging containers and corrugated sheets during transportation, storage, and stacking. Its performance fully complies with GB/T4857.3-92, GB/T4857.4-92 and the national standard ISO2872-2001. Test stacking strength test requirements for test equipment.

Software function

1. All parameter settings are handled in the form of a dialog box, with prompts at each level, making the operation simple;

2. Units can be switched at will: Strength: kgf/N/lbf;

3. Simplified Chinese LCD display;

4. Printing function: automatically print reports, (Chinese) printing, maximum strength, average value, date;

5. Accuracy: 1%


FAQ
QWhat is the accuracy of this compression testing machine?
A The accuracy is 1%.
QDoes the microcomputer carton compression testing machine meet the specifications of JJG (light industry) 115?
A Model TF-203A Microcomputer Carton Compression Testing Machine
