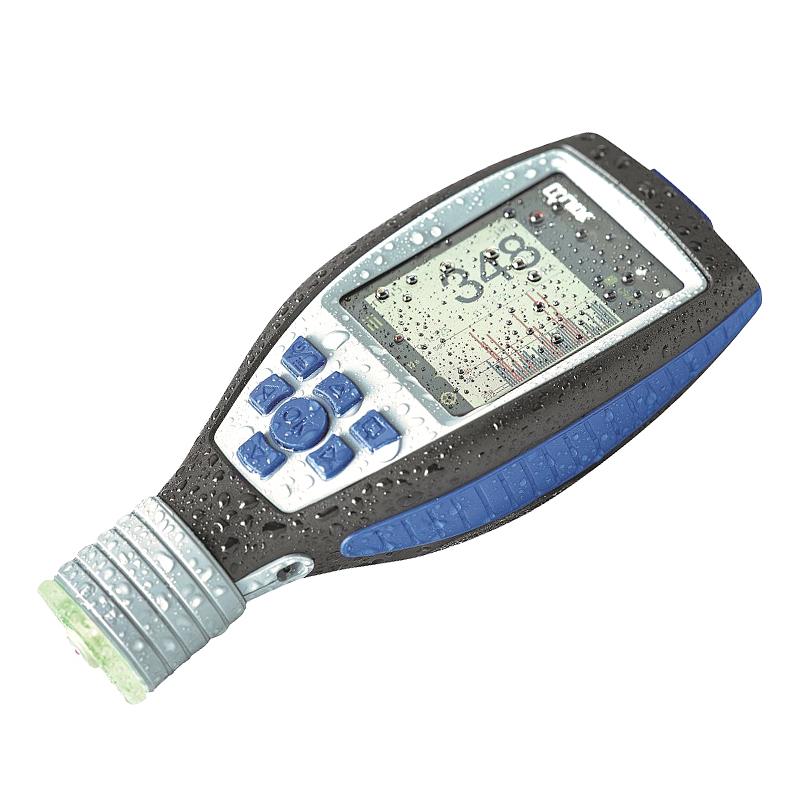

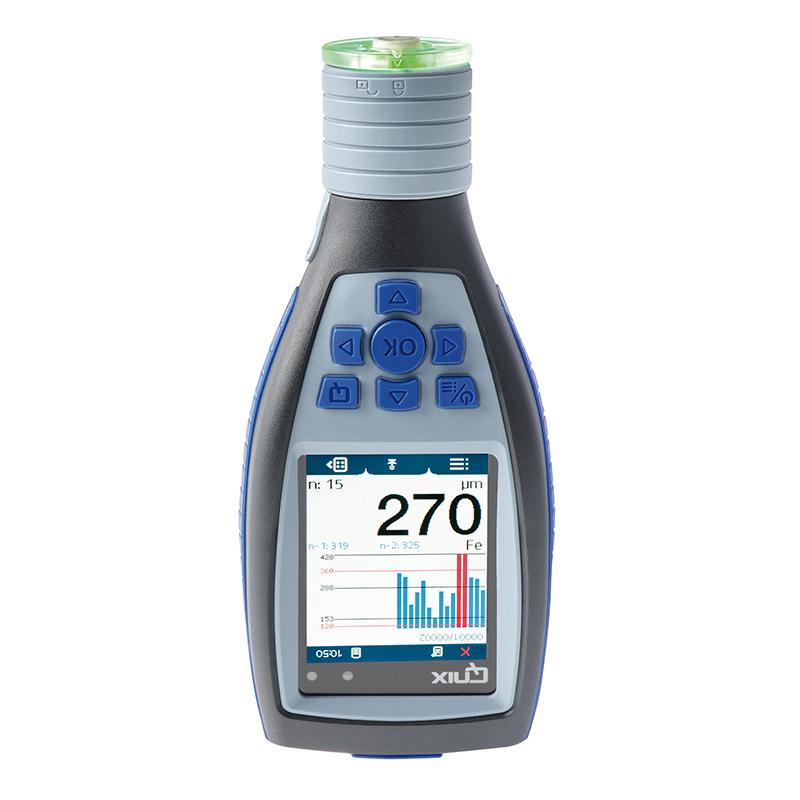

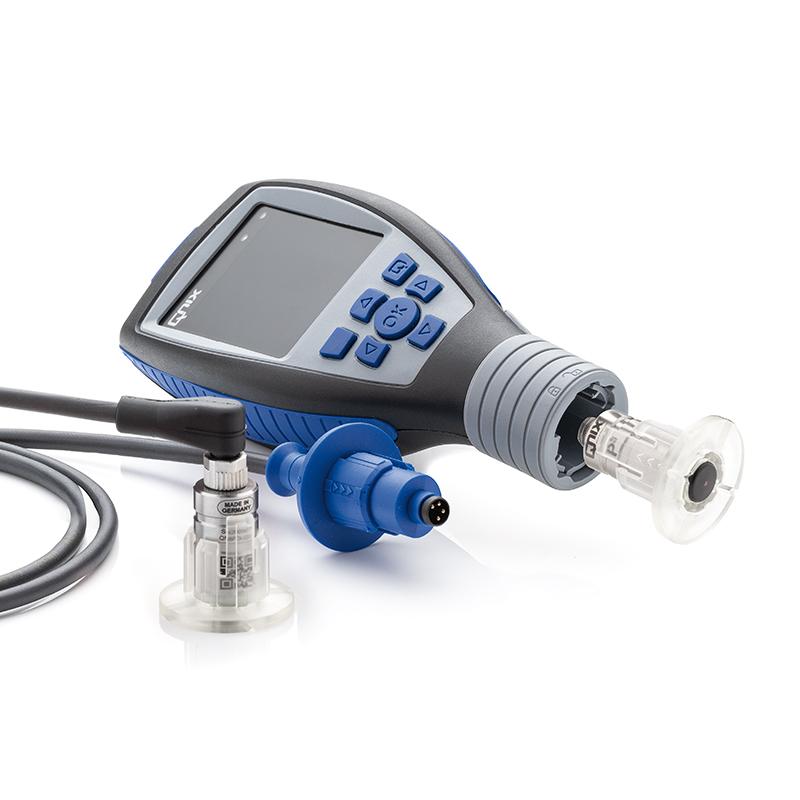

QNix 9500Pro + Coating Thickness Gauge host, enhanced + type

QNix 9500Pro+

Coating Thickness Gauge

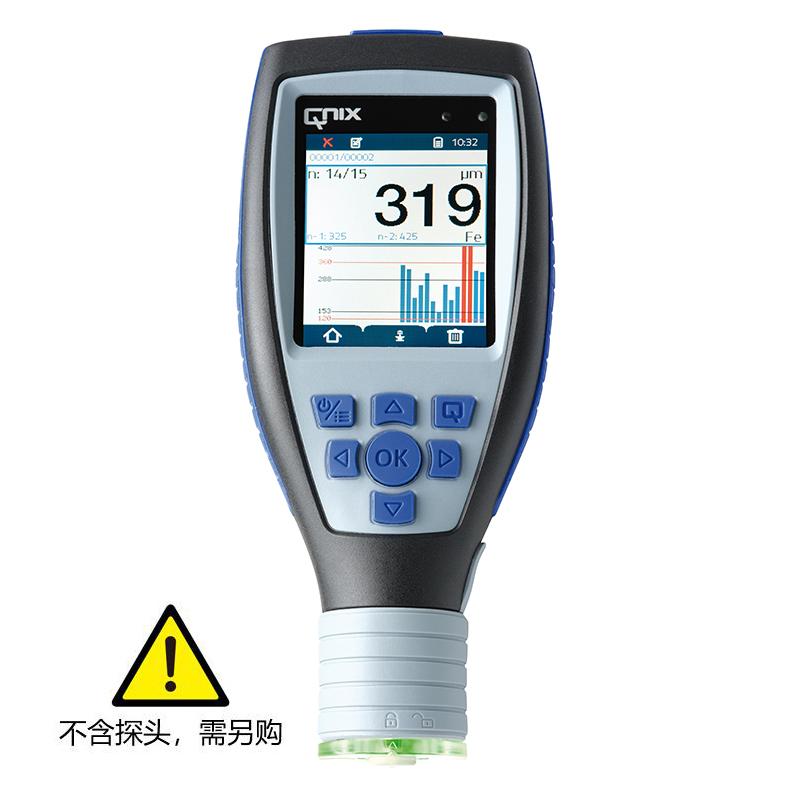

Thickness Gauge host, probe needs to be purchased separately. Support a variety of Calibration methods, can store 2000000 readings, the display screen can be turned over from multiple angles, and the shell contains fiberglass.

QNix9500, sturdy and durable, user-friendly interface, reliable quality, multi-purpose and high precision.

QNix9500 has considerable characteristics in the quality control of product production in the process of industrial anti-corrosion, spraying and surface treatment, both in terms of compliance with standards and technical parameters. The newly developed QNix9500 computer software can achieve efficient and fast management of documents and inspection reports that has never been possible before. Every QNix9500 is entirely produced in Germany.

The enhanced+ type Thickness Gauge is further upgraded on the basis of the enhanced type and has the following unique features:

1. Calibration supports ISO19840 zero offset, ISO19840 2 points, SSPC PA2 zero offset, SSPC PA2 2 points, AS 3894.3 Switzerland, SIS 184160 Australia.

2. In terms of data storage, it supports 100 tasks, each task has 100 areas, each area has 10,000 points, and the total storage capacity is 2,000,000 readings.

3. In terms of measurement allowable values, it supports ISO 19840, SSPC PA2 (80/120) (level 1-5), and IMO PSPC (90/10)

Features

1. High-precision measurement ensures effective quality results

• High-precision measurement across the entire range

• High repeatability of measurement results

• Temperature compensation inside the probe

• Guaranteed measurement accuracy on curved surfaces and small workpieces

• Easy calibration on rough, smooth and curved substrates

2. Solid and durable protection, suitable for long-term use under harsh conditions

• Contains fiberglass and consists of 5 components IP64 compliant

• Water and light resistant

• Three layers of shock protection

• LCD transparent window glass is scratch-resistant and chemical-resistant (H6 level)

• Working temperature -20℃-70℃

• Stainless steel probe with dustproof film

3. Utilize ergonomic design to save time and enable quick and continuous use without fatigue.

• Over-limit indication, directly displayed on the LCD and LED light on the probe

• High-brightness 24-inch LCD, viewable at 70° angle

• The LCD brightness can be adjusted automatically or manually to achieve a good display effect under sunlight

• Large tactile keys and low-to-center

• Flip to display 0°, 90°, 180°, 270°

4. Flexibility and scalability

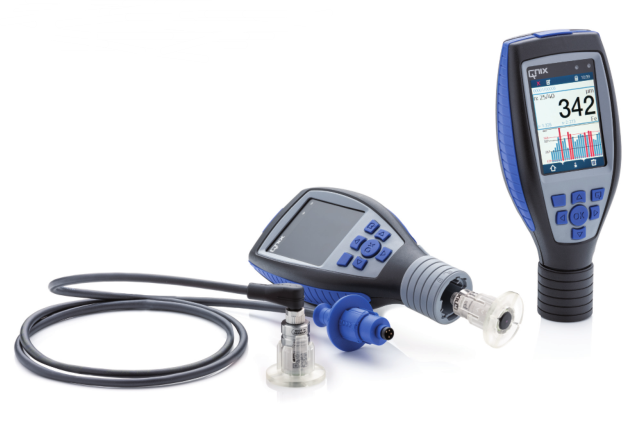

• The host can be adapted to Fe (iron-based), NFe (non-ferrous-based), Fe/NFe (iron-based/non-ferrous-based) dual-purpose probes

• The host can be adapted to other types of probes

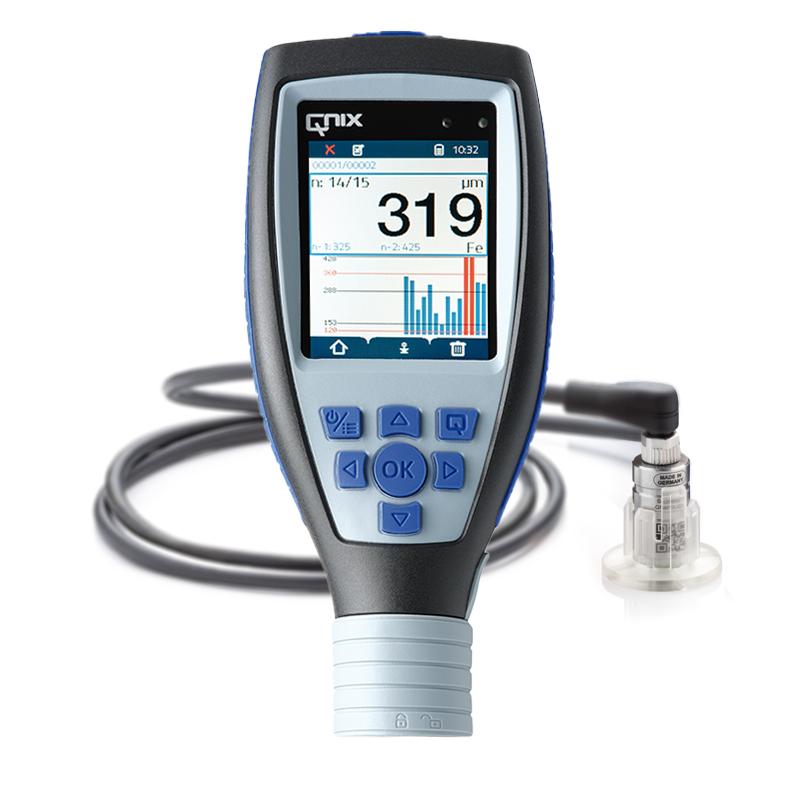

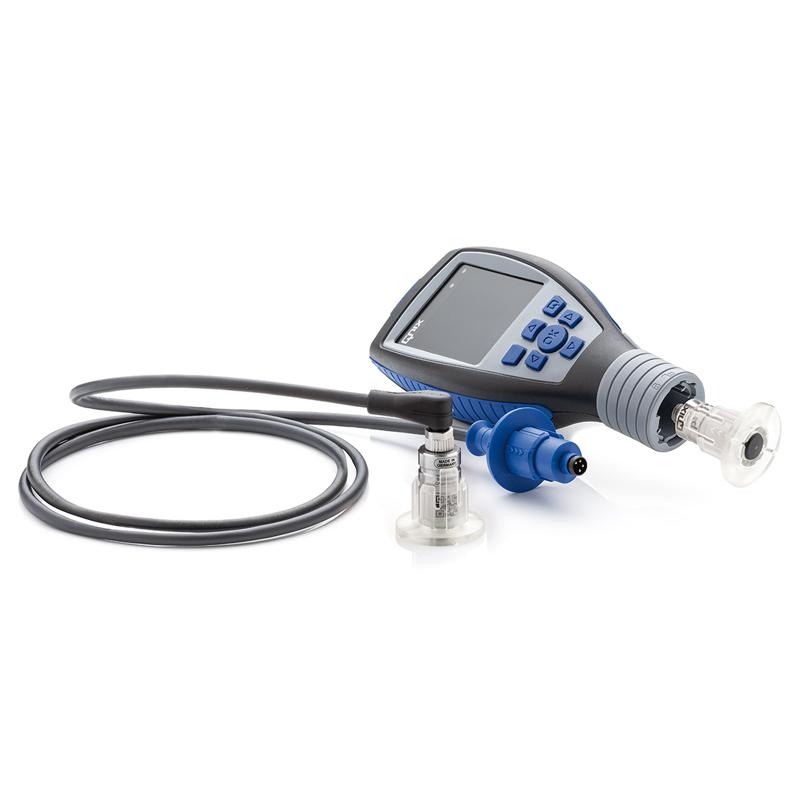

• Can be equipped with either integrated probe or split probe

• Quick and easy plug-and-play probe replacement

• Quick adaptation to meet different needs

5. Friendly interface that is easy for users to understand, intuitive and operable to save time and money

• Simple calibration for standard use

•The host and computer software are guided by intuitive menus and can be reported in three steps

•Customized buttons for quick and direct single operation 

• Standard preconfigured

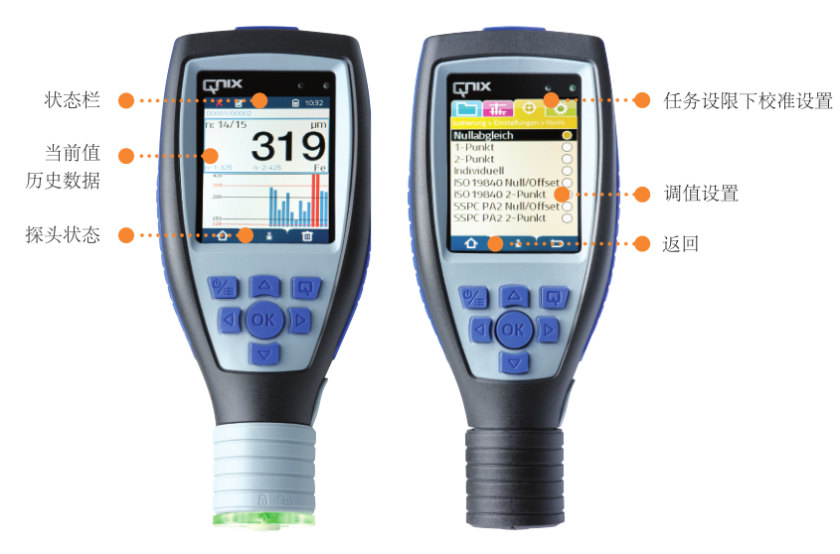

Display diagram

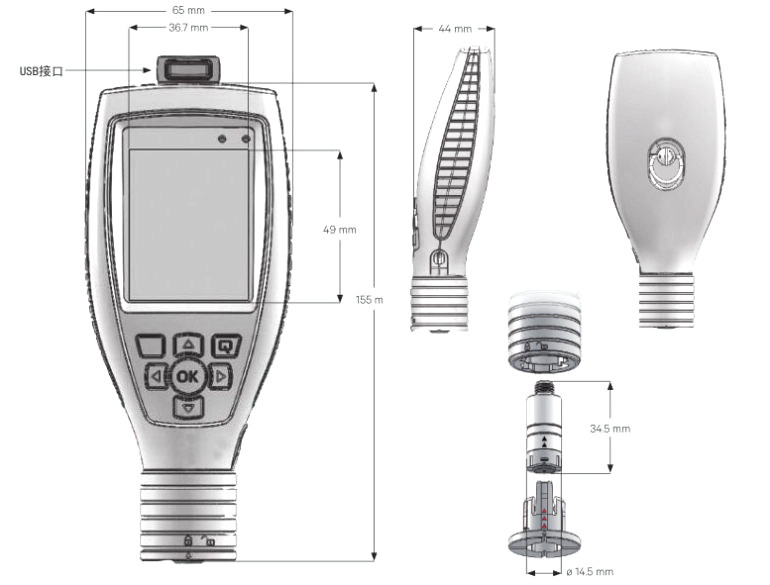

Qnix9500 Thickness Gauge specification chart

Packing list：9500 host X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
