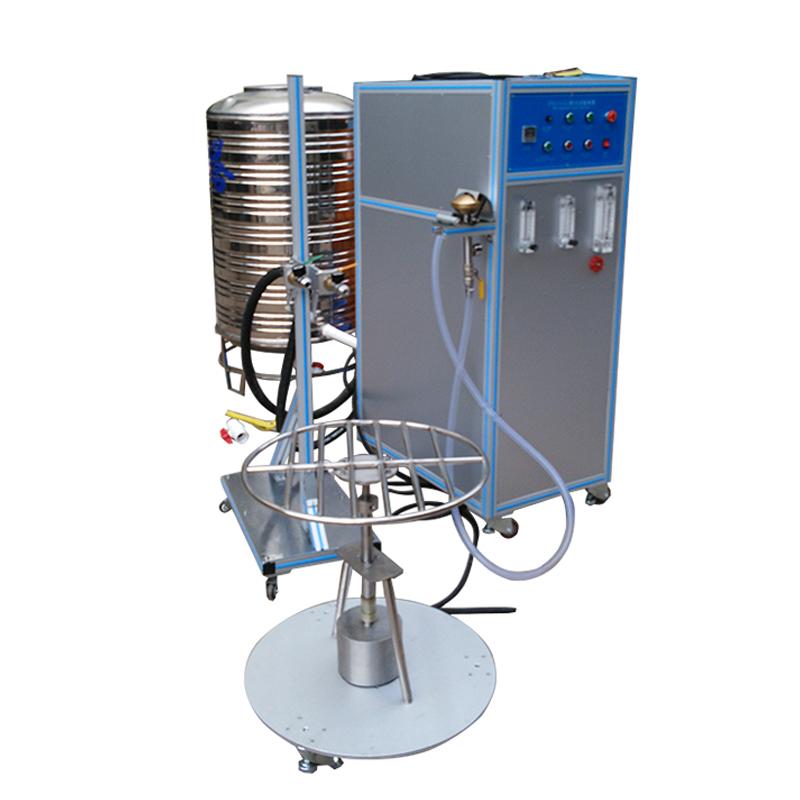

Xiangmin IPX6 anti-spray device, spray aperture 12.5mm waterproof grade rain Test Chamber
The inner diameter of the nozzle of Xiangmin IPX5 anti-spray device is 12.5mm, the water spray Flow rate is 100 +/- 5L/min, the water pressure is 80~100kpa, and the water pressure is adjustable. The IPX6 anti-spray device is used to detect the protection performance of appliances with protective low water.
Model：
IPX6
xiangmin IPX6 Anti-spray deviceSPEC
xiangmin IPX6 Anti-spray deviceDetails
xiangmin IPX6 Anti-spray devicePacking list
- SKU
- NB028396
- Spray hole diameter
- 12.5mm
- Flow rate
- 100±5L/min
- Jet water pressure
- 80~100Kpa, adjustable water pressure
- Maximum load-bearing of the turntable
- 50kg
- Turntable lifting height
- 400-750mm
- Rotation speed of turntable
- 1-5R/min (accurately adjustable)
- Turntable rotation method
- Forward/reverse alternation
- Flow rate adjustment
- Flow rate adjustment with adjustment panel
- test time
- 0-999min
- Total Weight of equipment
- About 250kg
- Water spray distance
- 2.5 meters (distance between the nozzle and the center of the turntable)
- Spray gun fixing method
- Mechanical fixation
- turntable diameter
- 600mm
- Protection device
- Leakage, water shortage, short circuit
- Inner box size
- 1000*1000*1000mm
- Dimension
- About 1200 × 3500 × 1850mm
- Turntable size
- 500Mm circular turntable
- Round turntable
- Round stainless steel rod welded
- Rotation speed of turntable
- 1~ 5R/min adjustable
- water storage tank
- SUS304 stainless steel plate bending
- nozzle
- Processed by SUS304
- water pressure control
- Flow rate meter
- water pump
- Special stainless steel centrifugal pump
IPX6
Anti-spray device
