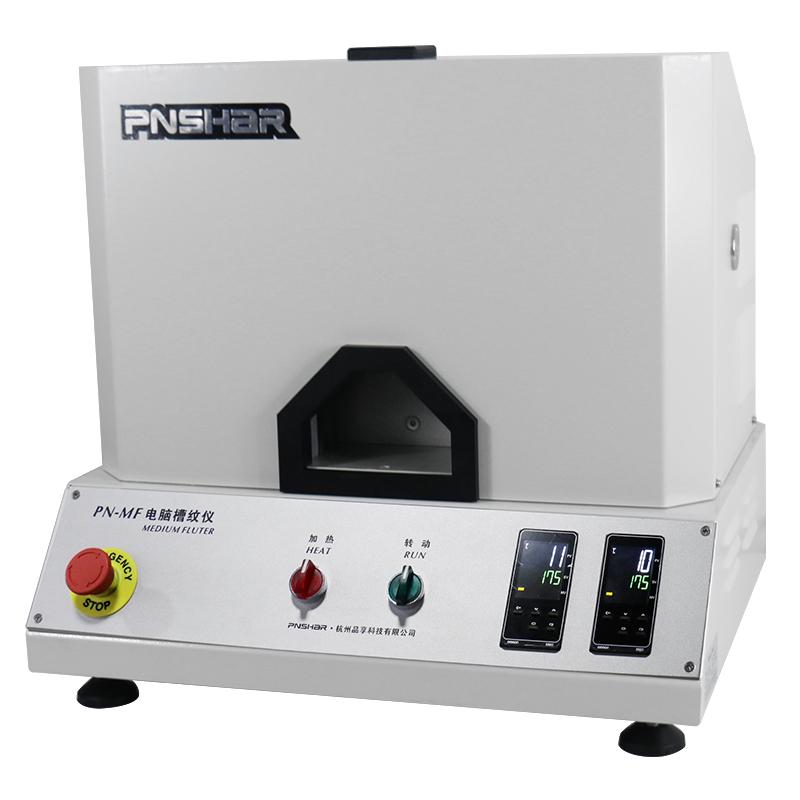

PNSHAR PN-MF Corrugating meter
PN-MF computer Corrugating meter, also known as corrugated base paper corrugator, is a laboratory corrugated original (core) paper corrugating equipment designed and developed according to the standards GB/T 2679.6 and QB/T 1061. After corrugating, CMT and CCT tests are carried out. It is used together with the ring pressure Sampler and the ring pressure strength meter.
Model：
PN-MF
PNshar PN-MF Corrugating meterSPEC
PNshar PN-MF Corrugating meterDetails
PNshar PN-MF Corrugating meterPacking list
- SKU
- NB028513
- Power supply Voltage
- AC220V±10%，10A, 50Hz
- crest radius
- R1.50±0.1mm
- Valley radius
- R2.0±0.1mm
- tooth height
- 4.75±0.05mm
- Gear tooth form
- Type A
- Rotation speed
- 4.5rpm
- Temperature Resolution
- 1℃
- Temperature adjustable range
- RT+~200℃
- Working pressure adjustable range
- 49~108N
- Operating temperature
- 175±8℃
- Dimensions
- 530*400*475mm
- Weight
- Approx. 80kg
PN-MF
Corrugating meter

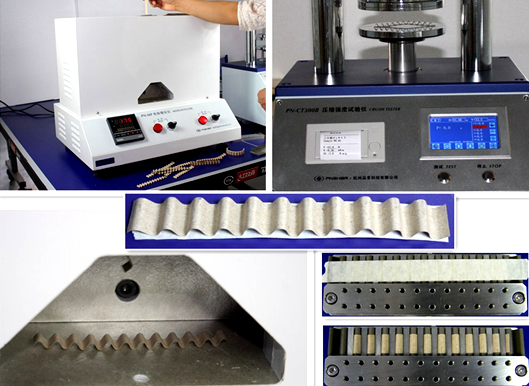

PN-MF computer fluting instrument, also known as corrugated base paper flurting device, is a laboratory corrugated original (core) paper fluting equipment designed and developed according to the standard GB/T 2679.6 and QB/T 1061.
Enforce the standard
GB/T 2679.6、QB/T 1061、ISO 7263
Features
1. Simple operation;
2. Accurate temperature control, using PID algorithm, fast response speed, high steady-state accuracy.
3. Finishing gears, good fluting effect.
FAQ
QWhat is the speed of this Flute meter?
A
Hello, the speed is 4.5r/min.
