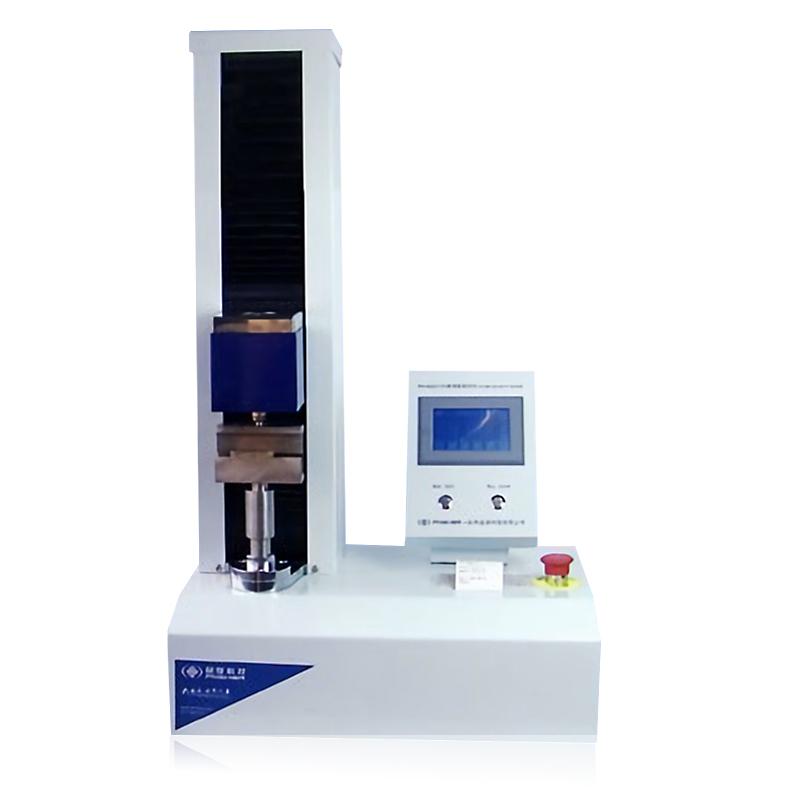

PNSHAR PN-SQT50 indentation strength Tester
PN-SQT50
PNshar PN-SQT50 Indentation strength TesterSPEC
PNshar PN-SQT50 Indentation strength TesterDetails
PNshar PN-SQT50 Indentation strength TesterPacking list
- SKU
- NB028523
- Power supply Voltage
- AC 220V±10% 2A 50Hz
- Error of indication
- ±1%
- Indication variability
- ＜1%
- Force resolution
- 0.1N
- Force range
- 5~500N
- Specimen size
- Width ≥ 25.4mm; Length ≥ 60mm
- deformation error
- ≤±1mm
- Working Travel
- 20~350mm
- Pressurization speed
- 48mm/min(1~500mm/min可设)
- return speed
- 5~500mm/min
- Human Machine Interface
- 4.3 "Color touchscreen
- printout
- modular integrated thermal printer
- Communication interface
- RS232 (std.)/USB (optional)
- Operating Environment
- Indoor temperature (20 +/- 10) ℃; Relative Humidity < 85%
- Dimensions
- 495*355*925mm
- Weight
- About 53kg
PN-SQT50 indentation strength Tester is a corrugated cardboard indentation strength testing instrument developed according to the standard Tappi T829, which is mainly used for single corrugated cardboard and double corrugated cardboard, and can also be used for triple corrugated cardboard, but the reliability is poor. Corrugated box quality is evaluated by comparing the pressures that can be withstood by indentated specimens and non-indentation specimens, e.g. for effective assembly and sealing of corrugated cardboard boxes.
The problem of indentation on the automatic packaging line is that it is shallow and cannot be formed, especially the shaking cover pressing line is easy to jam the machine, and if the automatic packaging box is dispensing sealing, the pressing line is not in place, the rebound force is easy to open the glue, and the box cover pops open.
The instrument is a mechatronics product, using modern mechanical design concepts and ergonomic design criteria, using professional high-speed ARM processor carefully and reasonably designed, is a novel design, easy to use, excellent performance, beautiful and generous indentation strength Tester.
Features

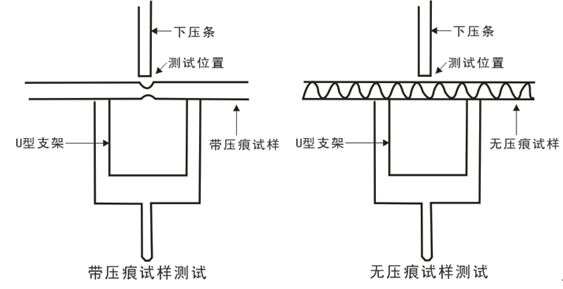

1. Adopt a vertical structure, the lower end of the U-shaped support, put the sample on it, and apply pressure to the sample on the U-shaped support by the pressure of the upper end;
2. Two test modes: 12.7mm and 90°;
3. It has the function of over-range alarm;

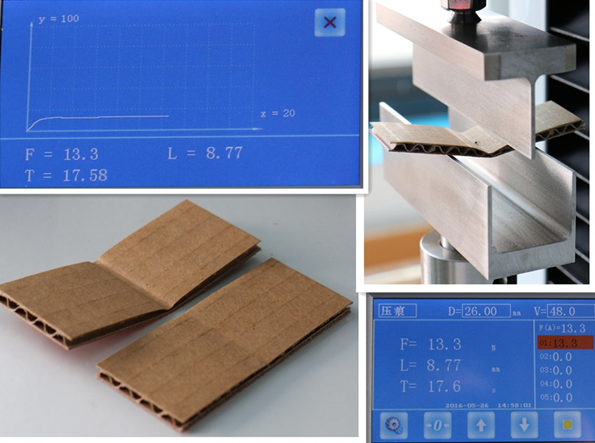

4. Real-time display of force value and deformation curve;
5. Set the number of samples, the number of samples is even, the first half is the sample with indentation, and the second half is the sample without indentation;
6. The test results show the average, ratio, etc.
7. Built-in printer, can print test report;
8. It can be connected to computer software (computer software is purchased separately), and has the function of real-time display of compression curve and data analysis management, saving, printing and other functions.
Execution standards
TappiT829
