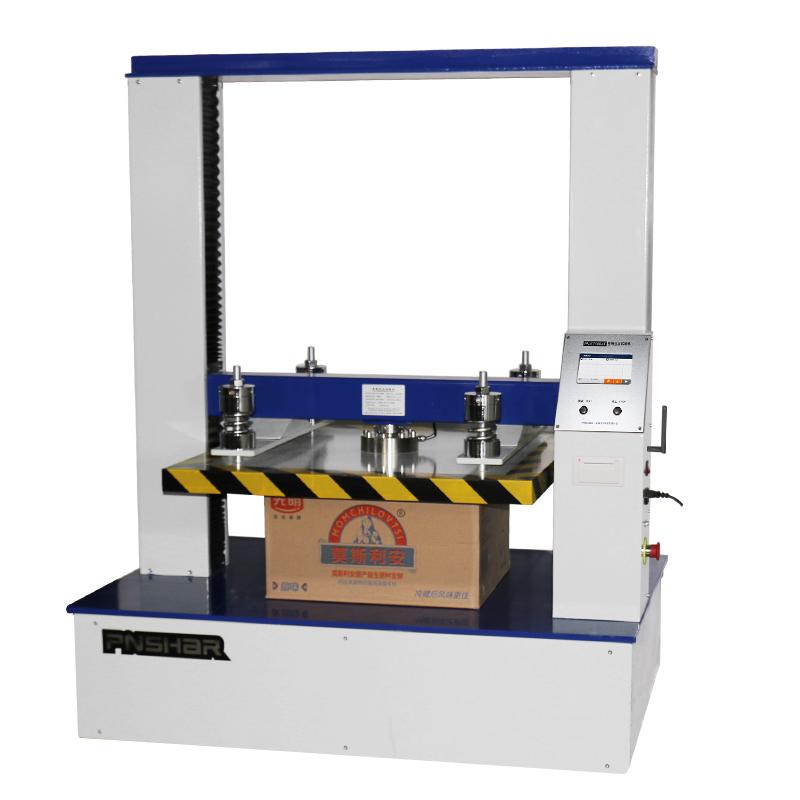

PNSHAR PN-CT50KA Box Compression Tester

PN-CT50KA

FCL compressive testing machine

PN-CT50KA FCL compressive testing machine is an economical corrugated carton, honeycomb carton and other packaging compressive and stacking testing instruments designed by our company, its performance parameters and technical indicators meet the provisions of GB/T 4857.3, GB/T 4857.4 and other standards, mainly used for compressive strength tests of various small and medium-sized corrugated boxes with compressive strength less than 15kN or made of other materials, such as food and beverage, instant noodle packaging, cosmetics packaging, beer packaging, grain and oil packaging, etc.

The instrument has three independent modes of operation:

1. Strength test: measure the ultimate compressive strength and deformation of the box;

2. Constant value test: the overall performance of the box can be detected according to the set pressure and deformation.

3. Stacking test: Simulate the stacking state of the warehouse, and the stacking test under different conditions can be carried out.

 Execution standards

GB/T 4857.3、GB/T 4857.4、ISO 12048、ISO 2234、QB/T 1048

 Features

1. The transmission structure of ball screw and double guide is adopted, which has high transmission efficiency and accurate positioning.

1. Real-time display of pressure and deformation curves;

2. Pre-set parameters, one-button measurement, simple and effective operation;

3. It has a statistical function, showing the mean value, standard deviation and coefficient of variation;

4. Safety device: overload emergency stop button control, up and down limit control, over-range alarm function.

5. The control circuit part adopts modular design, which is easy to maintain;

6. Open structure design, double lead screw, double guide pillar, good parallelism, good stability, strong rigidity and long service life;

7. Imported stepper motor control and subdivision technology are used to make the instrument accurate positioning and fast speed response, which saves test time and improves test efficiency;

8. Using high-speed ARM processor and 24-bit high-precision AD converter, the data processing speed is fast and the accuracy is high;

9. Built-in thermal printer, convenient to print test report;

10. It can be connected to computer software, and the test data can be exported to EXCEL, which is convenient for data saving, analysis and management.

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
