SUNDOO LX-D Shore Durometer vulcanized rubber and plastic products hardness testing

LX-D

Shore Shore Durometer

Pointer type; D type; suitable for hard rubber and plastics; meets GB/T531, ISO7619, JJ1039 standards; 20~90HD range.

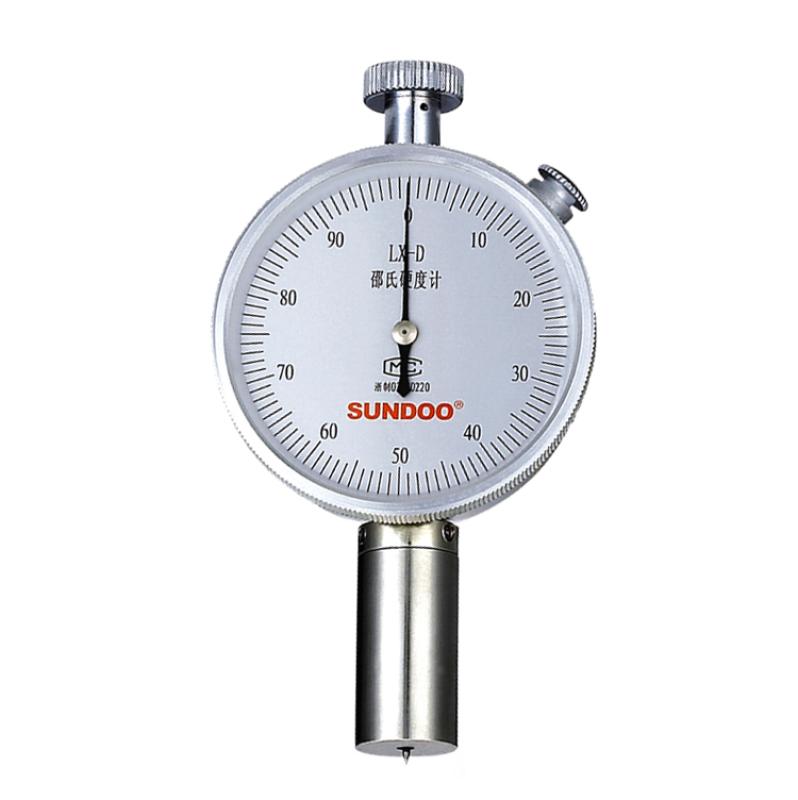

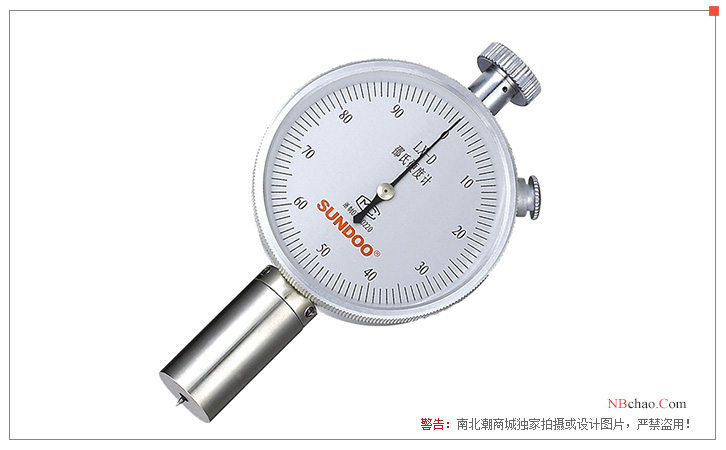

LX-D Type D Shore Hardness Tester Overview

SUNDOO Instruments LX-D D-type Shore Hardness Tester is a D-type Shore Hardness Tester for measuring the hardness of vulcanized rubber and plastic products. The LX-D D-type Shore Hardness Tester is matched with a test frame (need to be purchased separately) and can be used in the laboratory. Determination of the standard hardness value of rubber and plastic standard test pieces, you can also hold the head of the Shore durometer to measure the surface hardness value of the rubber or plastic objects installed on the equipment.

LX-D Type D Shore Hardness Tester Application Standard

GB/T53 1 1-2008 "Test Method for Indentation Hardness of Vulcanized Rubber or Thermoplastic Rubber Part I: Shore Durometer Method (Shore Hardness)"; IS07619-1:2004 "Test Method for Indentation Hardness of Vulcanized Rubber or Thermoplastic Rubber Part I: Shore Hardness Tester Method (Shore Hardness) "; JJG1039-2008 "D-Type Shore Hardness Tester Verification Regulations ".

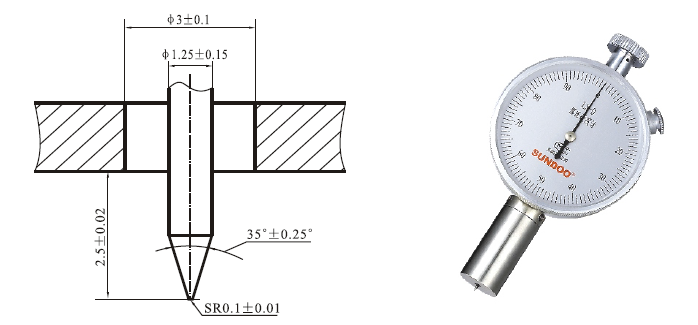

LX-D Type D Shore Hardness Tester Indenter Size Chart

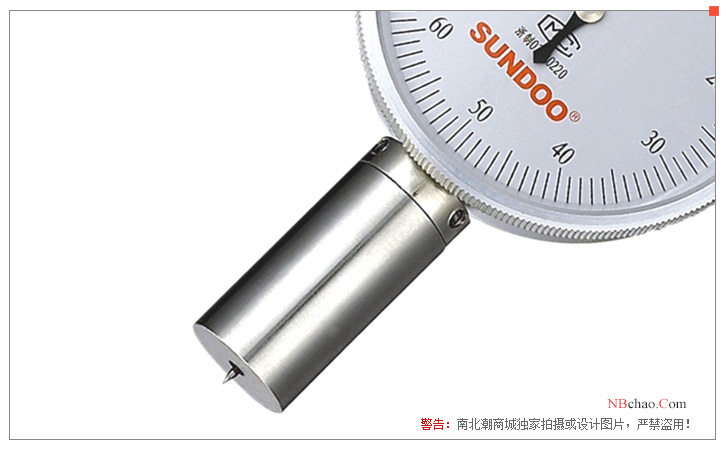

LX-D D-type Shore Hardness Tester indenter display

Packing list： Hardness gauge x1, standard block x1, manual x1, warranty card x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
