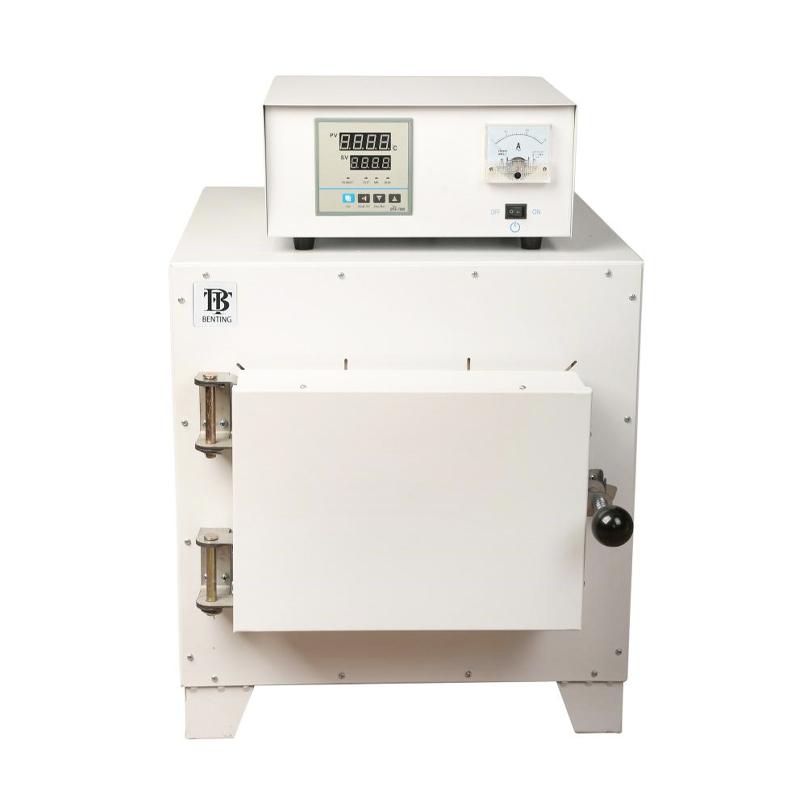

BENTING CSX-10-12 laboratory Resistance Furnace 1200 ℃/16L

BENTING CSX-10-12 laboratory Resistance Furnace adopts closed aluminum silicate furnace body, furnace size 250 * 400 * 160mm, is an experimental muffle furnace with heating power 10kw, CSX-10-12 adopts digital tube double row PID temperature control, the accuracy is +/- 5% ℃.

Price: Please contact customer service

Model：

CSX-10-12

Certificate

BenTing

Manufacturer authorization

Contact

Details SPEC Con VIDEO

BenTing CSX-10-12 Resistance furnaceSPEC

BenTing CSX-10-12 Resistance furnaceDetails

BenTing CSX-10-12 Resistance furnacePacking list

SKU: NB028624

maximum temperature: 1200℃

Heating Elements: silicon carbide rod

Furnace material: aluminum silicate

Furnace Volume: 16L

Heating power: 10KW

Temperature control Accuracy: ±5%℃

Temperature control instrument: Digital tube dual row PID

Thermocouple: Thermocouple K

Furnace size: 250*400*160mm

Power: AC380V/12A 50/60Hz

Dimensions: 600*910*635mm

Product Weight: 203kg

Heating method: Silicon carbide rod double-sided heating

Temperature Resolution: 1℃

Room temperature to maximum temperature time: 70

Heating method: staged warming

vent: Inner diameter 30mm * 1, rear (optional)

Exterior material: Cold rolled steel plate

Program Mode: optional

Temperature setting: Tap the four-button settings

Temperature representation: Measuring temperature display: 4-digit digital upper display; setting temperature display: 4-digit digital lower display

Timer: 0~9999min (with Timer waiting function)

Run function: Fixed value operation, Timer operation, automatic stop

Additional features: Deviation correction, menu button lock, power outage compensation, power outage memory

Packing size: 630*930*650mm

Gross Weight: 230kg

CSX-10-12

Resistance furnace

Features

●Integrated design, light and compact structure.

●Closed aluminum silicate furnace, lightweight insulation bricks, to ensure the full use of heat.

●Parallel side-opening furnace door keeps the hot end away from operation.

●The combination of PID microcomputer air instrument and precision sensor ensures accurate temperature.

●Special function keys for temperature setting.

●Auxiliary menu to realize overheating alarm, deviation correction and menu lock.

●Exhaust device is optional to facilitate ashing.

●Series 10 and 12: Nickel-chromium-aluminum alloy heating wire is enclosed and embedded in the aluminum silicate furnace to reduce the corrosion of the heating wire by volatile gas.

●13 series: silicon carbide rod heating, rapid heating, high thermal efficiency.

safety

● Overheating alarm, menu lock

SX series 1200 degrees Celsius Resistance Furnace parameter comparison

model		SX-2.5-12	SX-5-12	SX-10-12	SX-12-12
Way		heating on three sides		Silicon carbide rod heating on both sides
performance	Operating temperature range	1200℃
	temperature resolution	1°C
	temperature fluctuation	±5%℃
	Normal temperature to maximum temperature time	75	80	70	70
	heating method	Phased heating
constitute	exhaust vent	Inner diameter 30mm*1, rear (optional)
	Furnace body	Aluminum silicate
	heater	Nickel-chromium-aluminum alloy wire
	rated power	2.5kw	5kw	10kw	12kw
	Exterior	cold rolled steel plate
controller	temperature control method	Digital tube double column PID
	program mode	Optional
	temperature setting method	Touch four buttons to set
	Temperature representation	Measured temperature display: 4-digit upper display; set temperature display: 4-digit lower display
	timer	0～9999 minutes (with timing and waiting function)
	running function	Fixed value operation, timing operation, automatic stop
	Additional features	Deviation correction, menu key lock, power failure compensation, power failure memory
	sensor	K type
safety devices		Overheating alarm
Specification	Inner size (width * depth * height mm)	12020080	200300120	250400160	300500200




	Dimensions (width * depth * height mm)	410595467	500790527	600910635	7201100675

	Outer packing size (widthdepthheight mm)	490780550	600900640	630930650	7701120740
	Internal volume	2L	7L	16L	30L
	Power supply (50/60Hz) rated current	AC220V/11A	AC220V/23A	AC380V/12A	AC380V/18A

	Net weight/gross weight kg	67/80	134/150	203/230	271/305
