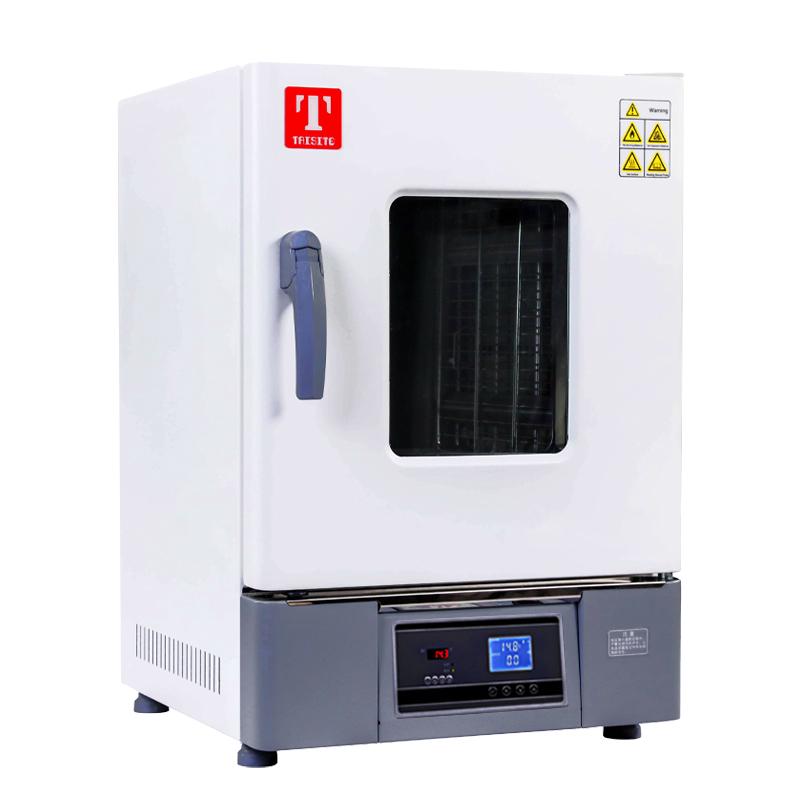

TAISITE WGLL-625BE Vertical Forced Air Drying Oven Functional type 300 ℃/625L

TAISITE WGLL-625BE vertical Forced Air Drying Oven adopts liquid crystal dual-row PID temperature control, Temperature range RT + 10~300 ℃, temperature distribution accuracy +/- 2.5%, WGLL-625BE Shelf layers 7 layers, Shelf spacing 150mm, with over-rise prevention device.
Model：
Certificate
Contact
Details SPEC CAT
Similar products

TaiSiTe WGLL-625BE Forced Air Drying OvenSPEC

TaiSiTe WGLL-625BE Forced Air Drying OvenDetails

TaiSiTe WGLL-625BE Forced Air Drying OvenPacking list

SKU
NB028866
Convection mode
Double duct forced convection
Temperature range
RT+10~300℃
Temperature Resolution
0.1℃
Temperature Fluctuation
±1 ℃
Temperature Uniformity
±2.5%
Chamber material
stainless steel plate
Enclosure Material
Cold rolled steel plate, surface resistance painting
Thermal Insulation
aluminum silicate fiber
Heating mode
Stainless steel heating pipe
Input Power
5.0Kw
Exhaust Port
Should 28mm * 2, top
Thermostat
LCD dual row PID
Temperature setting method
Tap the four-button setting
Temperature representation
Measuring temperature display: liquid crystal upper display; setting temperature display: liquid crystal lower display
Timer
0~9999Min (with Timer waiting)
Operational Features
Fixed value operation, regular operation, automatic stop
Program Mode
optional
Additional features
Deviation correction, menu button lock, power outage compensation, power outage memory, constant speed fan, overlift preventer
Temperature sensor
pt100
Safety Devices
Over-rise alarm, over-rise preventer
Interior size
660*760*1250mm
Dimensions
900*960*1840mm
Packing size
1051*1060*1949mm
Volume
625L
Load per shelf
15kg
Shelf (std.)
7pcs
Shelf spacing
150mm
Power supply Voltage
AC380V/7.6A
Net Weight
113kg
Shelf (std.)
2pcs
Shelf (std.)
4pcs
Gross Weight
137Kg
WGLL-625BE
Forced Air Drying Oven
TAISITE WGLL-625BE Vertical Forced Air Drying Oven Functional type 300 ℃/625L Picture

Features

  • High precision, effective, safe and wide range.

  • Convenient operation, fixed value operation, timed operation, automatic stop.

  • Dedicated function keys enable temperature setting.

  • Auxiliary menu, to achieve over-rise alarm, deviation correction, menu locking.

  • Vertical double air duct air jacket, turbine centrifugal forced air supply, more uniform temperature.

  • Speed-controlled fans enable the use of lightweight, fine, powdery samples.

  • The forced fan heat dissipation and air intake structure makes the maximum working temperature of the fan < 50°C, and the operation is long-lasting for a long time.

  • Patent No.: ZL201230310211.7 / ZL201320059701.3

Function

Tester WGLL-625BE Forced Air Drying Oven Details Figure 1Tester WGLL-625BE Forced Air Drying Oven Details Figure 2

Double-walled door design                                         Multi-function control panel

Menzi adopts a double-layer thermal insulation design, which is more comfortable for experiments.  Multi-function control panel, dedicated function key design


Tester WGLL-625BE Forced Air Drying Oven Details Figure 3Tester WGLL-625BE Forced Air Drying Oven Details Figure 4

         Exhaust holes                                       Multi-layer space multi-layer partition design

                              Multi-functional exhaust hole design               The spacing of the partitions can be adjusted, which is convenient for placing experimental items at different heights.

Comparison of parameters of WGL Forced Air Drying Oven series

ModelWGL-30B/WGLL-30BEWGL-45B/WGLL-45BEWGL-65B/WGLL-65BEWGL-125B/WGLL-125BEWGL-230B/WGLL-230BEWGL-625B/WGLL-625BE
mannerDual air ducts force convection
performanceOperating temperature range RT+10～300℃
Temperature resolution0.1℃
Temperature fluctuations±1 ℃
Temperature distribution accuracy±2.5%
constituteBuilt-inStainless steel plate
ExteriorCold-rolled steel plate, surface resistance * quality coating
Insulating materialsAluminum silicate fiber
heaterStainless steel heating tubesStainless steel heating tubesStainless steel heating tubesStainless steel heating tubesNichrome heating wireStainless steel heating tubes
Rated power0.8KW1.2KW1.6KW2.3KW3KW5.0KW
Exhaust outletsInner diameter 28mm*1, topInner diameter 28mm*2, top
controllerTemperature control methodType B: Digital tube double-row PID;BE type: LCD double-row PID
Temperature setting methodTap the four buttons to set it
Temperature representationType B: Measured temperature display: 4-digit digital upper display, set temperature display: 4-digit digital lower display
BE type: Measured temperature display: liquid crystal upper display, set temperature display: liquid crystal lower display
timer0~9999 minutes (with timed waiting function)
Run the functionFixed-value operation, timed operation, automatic stop
Program modeMatching
Additional featuresDeviation correction, menu button locking, power failure compensation, power failure memory (BE type: Overlift preventer)
BE type speed control fanFixed-speed fan
sensorpt100
Safety devicesOverlift Alarm (BE Type Overlift Arrester)
specificationInner dimensions (W*D*H mm)310*310*310350*350*350400*360*450500*450*550600*500*750660*760*1250
Dimensions (W*D*H mm)445*440*690485*480*730535*490*820636*580*930735*625*1220900*960*1840
Outer packing size (W*D*H mm)570*570*820600*600*857970*620*960760*700*1060898*814*13471051*1060*1949
Content volume30L45L65L125L230L625L
The partition is load-bearing15kg
Number of partition layers6 floors7 floors9 floors13 floors17 floors7 floors
Partition spacing35mm150mm
Power supply: (50/60Hz) rated currentAC220V/3.6AAC220V/5.5AAC220V/7.2AAC220V/10.5AAC220V/13.6AAC380V/7.6A
Net weight/gross weight kg37/3237/4343/4960/6684/100113/137
accessoryclapboard2 pcs
Partition shelves4 pcs

230/625 without speed control fan
Addable configuration (WGLL type)Partition, RS485 interface, printer, Recorder, external communication, remote control, program thermometer, wireless SMS alarm, U disk data storage


FAQ
QDoes the TAISITE blast drying oven meet the GB/T16777 standard?
A The WGLL-625BE blast drying oven can refer to
