RDS 3 #3/8 "+ KHC.21 Wire-wound drawdown Bar + Drawdown Plate Set

SE
Wire-wound drawdown Bar, Spreader width is 30cm, Film thickness is 6.9 microns, material stainless steel, with Drawdown Plate.
Certificate
Contact
Details SPEC VIDEO CAT OI
Similar products

RDS 3# 3/8"+KHC.21 Applicator rod setSPEC

RDS 3# 3/8"+KHC.21 Applicator rod setDetails

RDS 3# 3/8"+KHC.21 Applicator rod setPacking list

SKU
NB028950
Production process
wire-wound
WFT
6.9μm
diameter
9.52mm
Total length
400mm
application width
300mm
Grip Width
50+50mm
material
stainless steel
Wire diameter
0.08mm
Drawdown Plate Model
KHC.21
Coating table size
24*34cm
material
rigid polyester board + foam layer + rubber cushion
Baseplate size
430*247*12mm
packing size
476*260*83mm
Net Weight
2.08kg
3# 3/8"+KHC.21
Applicator rod set
Wire-wound drawdown Bar, Spreader width is 30cm, Film thickness is 6.9 microns, material stainless steel, with Drawdown Plate.

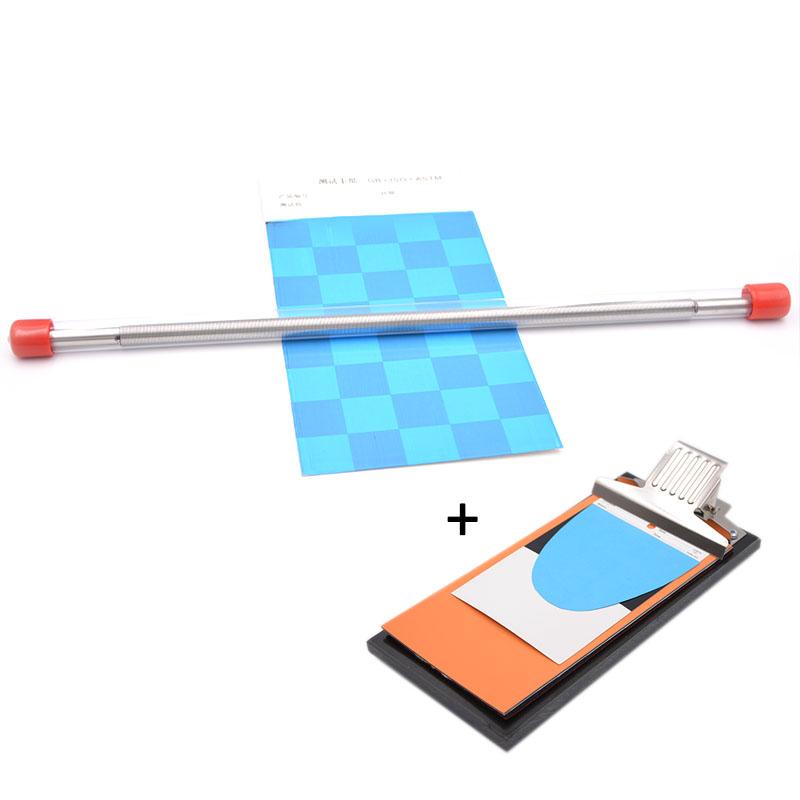

RDS 3 #3/8 "+ KHC.21 Wire-wound drawdown Bar + Drawdown Plate Set Picture
RDS 3# 3/8"+KHC.21 Coating Stick Set Details Figure 1RDS 3# 3/8"+KHC.21 Coating Stick Set Details Figure 2RDS 3# 3/8"+KHC.21 Coating Stick Set Details Figure 3


The RDS 3-wire rod coater is mainly used for the preparation of coatings of about 7 microns, which is suitable for coatings, inks, and most fluid industries with precise film thickness (wet film), and the 3-wire rod coater produced by RDS has a total of 4 models according to different diameters and processes, namely 6.35mm diameter forming coating rod and wire wound coating rod, 9.4mm diameter wire wound coating rod and 12.7mm coating rod. In principle, the coating effect is the same for rods with the same wet film thickness, but the amount of coating lost may vary depending on the diameter and process groove.

The RK imprint bed is a dedicated coating platform consisting of clips, rigid polyester sheets, foam and rubber upholstery. The combination of multiple layers of different materials makes the proofing effect better and improves the uniformity of the coating film.

RDS 3# 3/8"+KHC.21 Coating Stick Set Details Figure 4

RDS 3# 3/8"+KHC.21 Coating Stick Set Details Figure 5

RDS 3# 3/8"+KHC.21 Coating Stick Set Details Figure 6

RDS 3# 3/8"+KHC.21 Coating Stick Set Details Figure 7

RDS 3# 3/8"+KHC.21 Coating Stick Set Details Figure 8RDS 3# 3/8"+KHC.21 Coating Stick Set Details Figure 9RDS 3# 3/8"+KHC.21 Coating Stick Set Details Figure 10

RDS 3# 3/8"+KHC.21 Coating Stick Set Details Figure 11

RDS 3# 3/8"+KHC.21 Coating Stick Set Details Figure 12

RDS 3# 3/8"+KHC.21 Coating Stick Set Details Figure 13

RDS 3# 3/8"+KHC.21 Coating Stick Set Details Figure 14

RDS 3# 3/8"+KHC.21 Coating Stick Set Details Figure 15

RDS 3# 3/8"+KHC.21 Coating Stick Set Details Figure 16

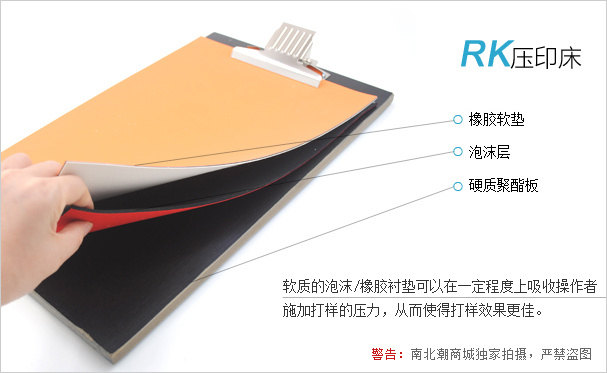

Illustration of the RK imprint bed

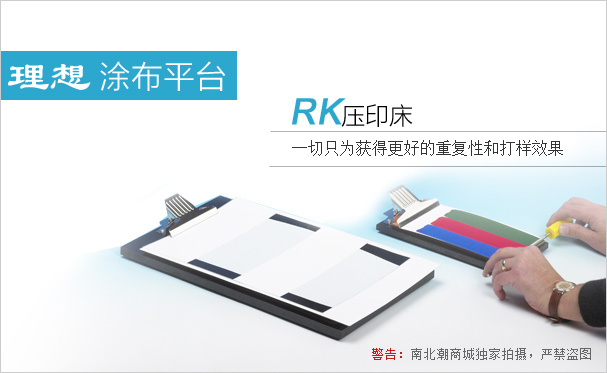

RDS 3# 3/8"+KHC.21 Coating Stick Set Details Figure 17


RDS 3# 3/8"+KHC.21 Coating Stick Set Details Figure 18

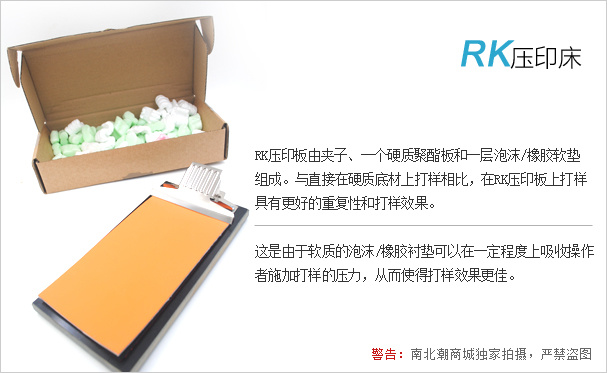

RDS 3# 3/8"+KHC.21 Coating Stick Set Details Figure 19

Optional

RDS 3# 3/8"+KHC.21 Coating Stick Set Details Figure 20

RDS 3# 3/8"+KHC.21 Coating Stick Set Details Figure 21

RDS 3# 3/8"+KHC.21 Coating Stick Set Details Figure 22RDS 3# 3/8"+KHC.21 Coating Stick Set Details Figure 23

Note: Click on the accessory image to view the product details.

FAQ
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
QCan this coating rod be prepative of multi-layer ultra-thin film?
A The wire rod can be prepared for 1.5 micron ultra-thin film. Everyone must know it, but another advantage of it is multi-layer film, which is much better than I-shaped film applicator. But multi-layer film tests the flatness of the previous layers of film drying. Generally, the film thickness (such as less than 10 microns/layer) is too thin to control. The wire rod with Film Applicator is a very good solution, eliminating the problem of uneven pressure and speed of hand scraping.
