JENCO 3020M portable Water Quality Meter conductivity /TDS/salinity/temperature measurement

SE
0~200mS/0.01µS, salinity display 0~80ppt, TDS (can be equipped with 4-ring and 2-ring electrodes)
Model：
Certificate
Contact
Details SPEC CAT OI
Similar products

JENCO 3020M Water quality Measurement InstrumentSPEC

JENCO 3020M Water quality Measurement InstrumentDetails

JENCO 3020M Water quality Measurement InstrumentPacking list

SKU
NB002909
Conductivity Measurement Range
0.00uS/cm~200.0mS/cm
EC resolution
0.01μS/cm,0.1μS/cm,1μS/cm,0.01mS/cm,0.1mS/cm
EC measurement Accuracy
±0.5%FS
TDS range
0.00mg/L~200.0g/L
TDS resolution
0.01mg/L,0.1mg/L,1mg/L,0.01g/L,0.1g/L
TDS measurement Accuracy
±0.5%FS
Salinity range
0.0~70.0ppt
Salinity resolution
0.1ppt
Salinity measurement Accuracy
±0.2%FS
Temperature Measurement Range
-10.0~90.0℃
Temperature Resolution
0.1℃
Temperature measurement Accuracy
+/- 0.2 ℃ or +/- 0.4% F.S. Choose a larger value
reference temperature
15.0~25.0 ℃, default 25.0 ℃
temperature coefficient
0.00~4.00%, default 1.91%
TDS conversion factor
0.30~1.00, default 0.65
Four-wire conductivity electrode
K=0.475
Two-wire conductivity electrode
K=0.1
Automatic temperature compensation
Thermistor, 10Kohms (25.0 ℃)
Data storage
50 sets
Power
9V battery
Ambient Temperature
0~50℃
Working Relative Humidity
<90%
3020M
Water quality Measurement Instrument
0~200mS/0.01µS, salinity display 0~80ppt, TDS (can be equipped with 4-ring and 2-ring electrodes)

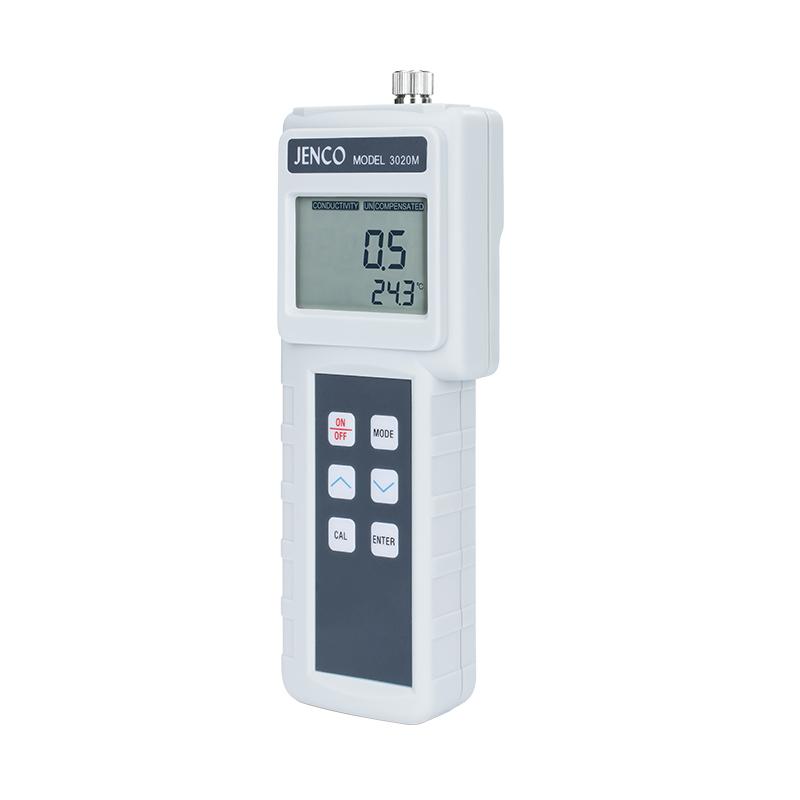

JENCO 3020M portable Water Quality Meter conductivity /TDS/salinity/temperature measurement Picture


When Ren designed the 3020M, we based it on the star model 3010M, increased its range and accuracy, and upgraded it to be compatible with 2/4-wire conductivity electrodes. This product has passed RoHS certification and does not contain any environmentally harmful substances. This product can simultaneously display conductivity/temperature, salinity/temperature, TDS/temperature, and can store up to 50 ratios of data.

Features

Simultaneously display conductivity, temperature, salinity, and TDS measurement data

Up to 50 sets of measurement data can be stored

Adjustable TDS coefficient, reference temperature, temperature coefficient

Can be connected to four-wire electrode (K=0.475) and two-wire electrode (K=0.1).

Automatic shutdown function (after 30 minutes of inactivity)

Battery life of over 150 hours

IP-65 waterproof body

Low battery indicator

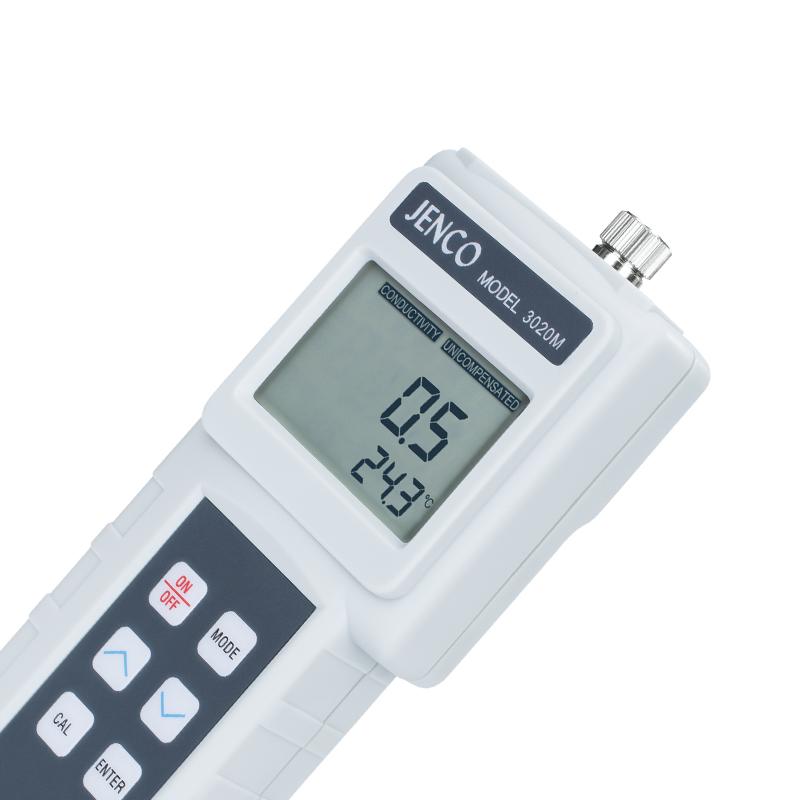

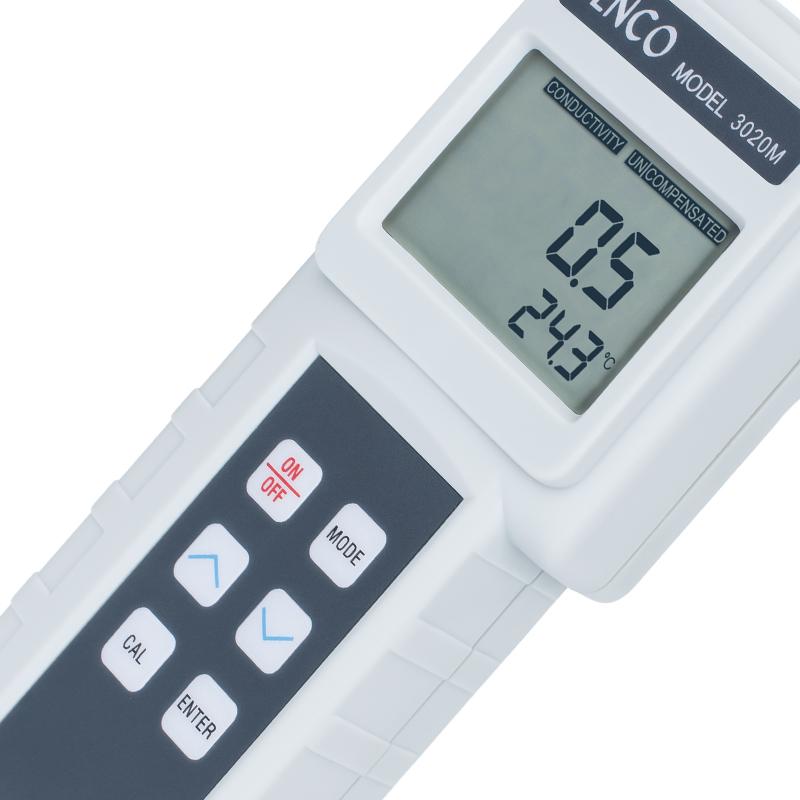

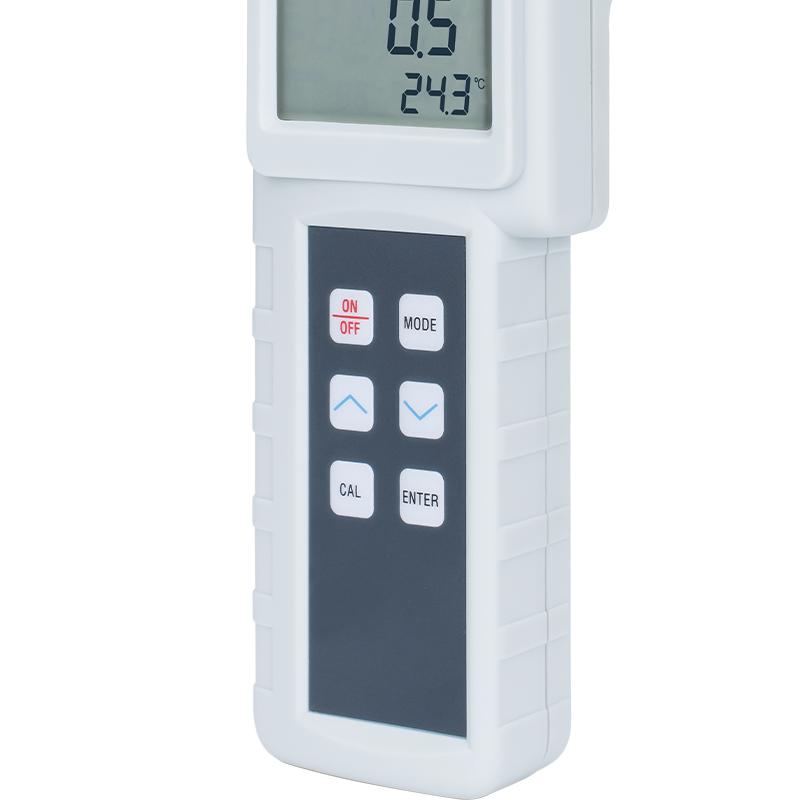

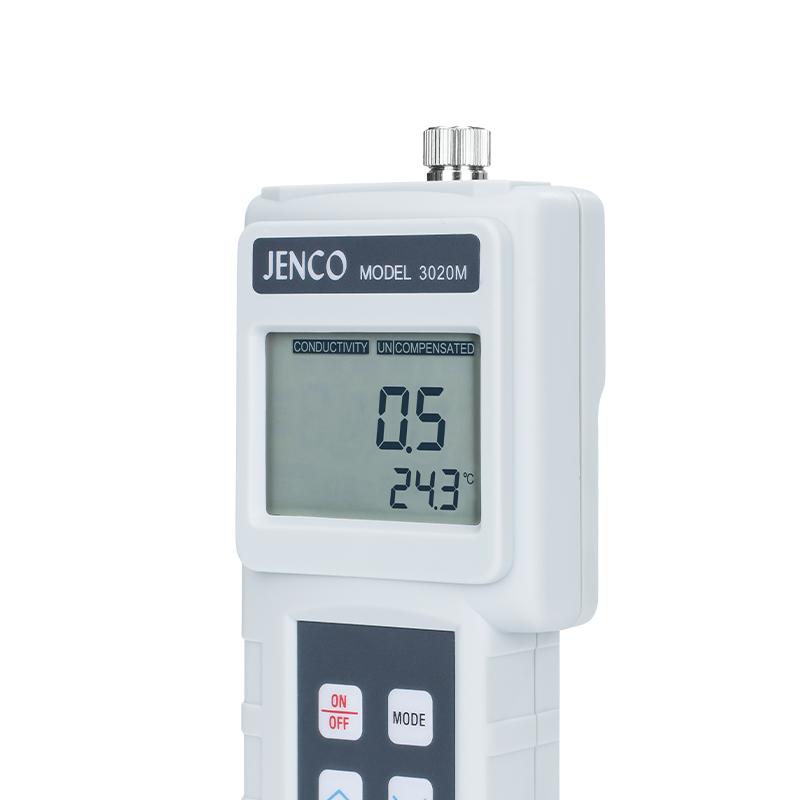

Product display picture

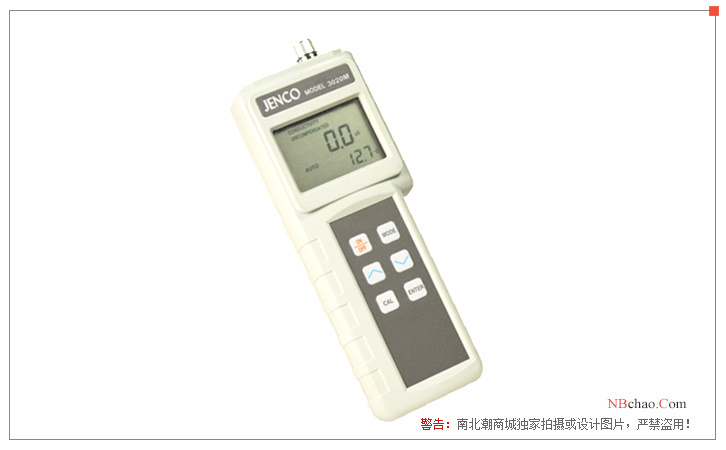

Display picture of JENCO 3020M portable water quality meter from the United States

FAQ
QWhat is the conductivity of silicon generally measured?
A This one is ok.
QThe Ren's 3020M water quality tester I bought always shows "OVER". How can I solve it?
A Hello, the test shows that there are three reasons: Conductivity detector value exceeds 200.0mS (K = 0.475) ● Conductivity detector value exceeds 200.0uS. (K = 0.1) ● Salinity value exceeds 70.0ppt. Correction method: ● Make sure that the electrode is immersed in the standard solution or the tested solution at least 2~ 3 inches or 5~ 7cm. ● Have enough time to wait for the electrode reading to stabilize. ● Recalibrate with the standard solution. ● Replace the standard solution. ● Clean the Conductivity detector electrode.
QHow many kinds of water quality data can JENCO3020M water quality measurement instrument test?
A Hello, Ren's water quality measurement instrument 3020M can simultaneously test and display the measurement data of conductivity, temperature, salinity and total solid capacity.
QCan the jenco3020M water quality measurement instrument be used in fish pond breeding?
A Hello, it's OK.
