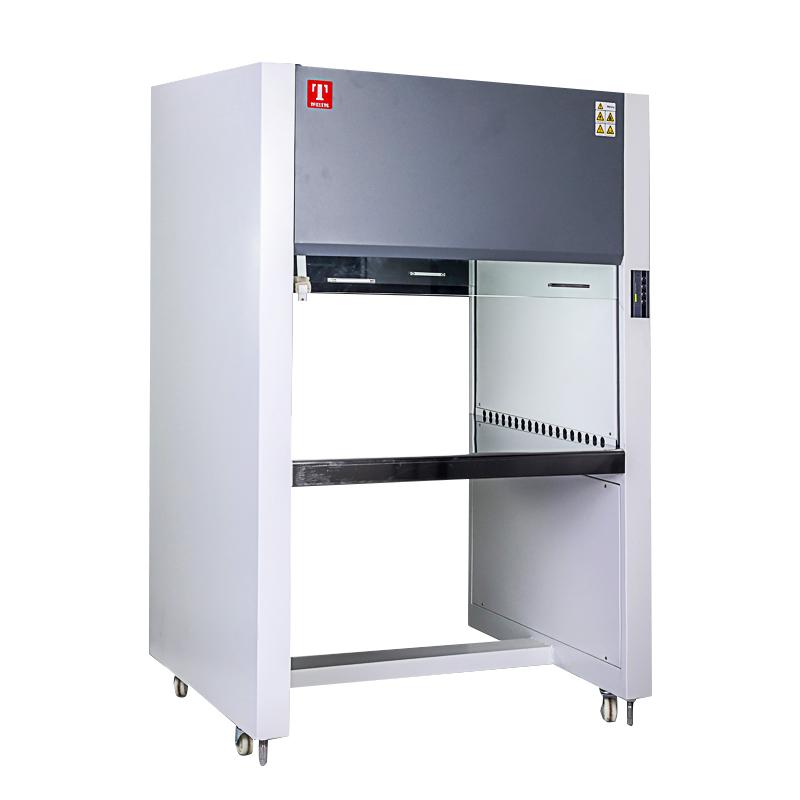

TAISITE CJ-1S Laminar Flow Cabinet Double-Sided, Single Operator
SETAISITE CJ-1S Laminar Flow Cabinet is suitable for single person double-sided workstation, vertical airflow direction, cleanliness level 100, collection efficiency 0.5um particles above 99.9%, inner size 780 * 780 * 550mm, maximum Power 0.4kw, noise ≤ 62db
Model：
CJ-1S
Similar products
-
SuJie SJ-CJ-1F clean workbench, single double-sided$ 963.00SE -
BENTING CSW-CJ-1F single person double vertical air supply Laminar Flow Cabinet standard type -
SANFA SF-CJ-1BQ Laminar Flow Cabinet Lightweight single person double-sided vertical wind$ 579.00SE -
SANFA SF-CJ-1B Laminar Flow Cabinet single person double-sided vertical wind$ 859.00SE
TaiSiTe CJ-1S Laminar flow cabinetSPEC
TaiSiTe CJ-1S Laminar flow cabinetDetails
TaiSiTe CJ-1S Laminar flow cabinetPacking list
- SKU
- NB029136
- type
- Double-Sided, Single Workstation
- Air flow
- Vertical
- Cleanliness class
- Level 100
- collection efficiency
- 0.5Um particles 99.9% or more
- Average colony count
- ≤ 0.5 pcs/dish (φ90mm culture dish)
- Adjustable Wind Speed Range
- Initial: 0.6; End: 0.2 (m/sec)
- Adjustable Wind Speed Range
- 0.2-0.6（m/sec)
- Noise
- ≤62dB(A)
- Vibration Half-Amplitude
- ≤3um
- Illumrination degree
- ≥300Lx
- Working surface load bearing
- 50kg
- Interior
- stainless steel plate
- Exterior
- Cold rolled steel plate, surface resistance painting
- Work door
- Tempered Glass
- HEPA Filter
- 820*600*50mm
- Primary Filter
- 520 * 490 * 5 each
- Fluorescent lamp
- 20W*①
- UV Lamps
- 20W*①
- Fan
- 300W
- Level adjustment
- Adjustment foot (40mm)
- Controller
- LED Controller
- Fan location
- overhead
- Workspace size
- 780*780*550mm
- Dimensions
- 935*780*1690mm
- Packaging Dimensions
- 1210*950*1755mm
- Maximum Power
- 0.4kw
- Power
- AC220V/1.8A 50/60Hz rated current
- Net Weight
- 142KG
- Gross Weight
- 220KG
CJ-1S
Laminar flow cabinet
Vertical flow, the airflow direction is from the top to the bottom of the work space/horizontal flow, the airflow direction is from the back to the front
Features
1. Low noise, touch the button, multi-level wind speed adjustment
2. Vertical air supply, sliding door to stop at will
3. No F series: integrated structure + LED indicator controller
4. -F series: detachable split structure + LED indicator controller
-FS series: detachable split structure + LCD intelligent controller
5. The detachable split structure can be used on the platform alone
6. Strengthened glass, quasi-closed table top, prevent external airflow from pouring back
Models
| model | Applicable station | Airflow direction | fluorescent light | UV lamp |
| CJ-1D | single sided | vertical | 20W*1 | 20W*1 |
| CJ-1S | single sided | vertical | 20W*1 | 20W*1 |
| CJ-2D | double sided | vertical | 30W*1 | 30W*1 |
| CJ-2S | double sided | vertical | 30W*1 | 30W*1 |
| HS840 | single sided | level | 20W*1 | 20W*1 |
| HS1300 | double sided | level | 30W*1 | 30W*1 |
| Other parameters | ||||
| cleanliness | Level 100 | |||
| collection efficiency | More than 99.9% of 0.5um particles | |||
| Colony count | ≤0.5 pieces/dish (φ90mm petri dish) | |||
| wind speed | Initial: 0.6; Final: 0.2 (m/sec) | |||
| Adjustable Wind Speed Range | 0.2-0.6 (m/sec) | |||
| noise | ≤62db | |||
| Vibration and Half Maximum Position | ≤3um | |||
| Illumination | ≥300LX (operation center) | |||
| Working surface load | 50kg | |||
| Interior | stainless steel plate | |||
| Exterior | Cold-rolled steel sheet with chemical-resistant coating on the surface | |||
| collection efficiency | More than 99.9% of 0.5um particles | |||
| Colony count | ≤0.5 pieces/dish (φ90mm petri dish) | |||
| wind speed | Initial: 0.6; Final: 0.2 (m/sec) | |||
| Adjustable Wind Speed Range | 0.2-0.6 (m/sec) | |||
| noise | ≤62db | |||
| Vibration and Half Maximum Position | ≤3um | |||
| Illumination | ≥300LX (operation center) | |||
| Working surface load | 50kg | |||
| Interior | stainless steel plate | |||
| Exterior | Cold-rolled steel sheet with chemical-resistant coating on the surface | |||
| fan | 300W | |||
| level adjustment | Adjustment feet (40mm) | |||
| controller | LED controller | |||
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
