JENCO 9030M portable Dissolved Oxygen Meter, light-sensitive side Optical inspection DO Detector

SE
Fluorescence electrode (LSDO), 0~20ppm (mg/L), 0~200.0%, (fluorescence method)
Model：
Certificate
Contact
Details SPEC CAT OI
Similar products

JENCO 9030M Portable Dissolved Oxygen MeterSPEC

JENCO 9030M Portable Dissolved Oxygen MeterDetails

JENCO 9030M Portable Dissolved Oxygen MeterPacking list

SKU
NB002914
DO Measurement Range
0.00~20.00mg/L
Air saturation range
0.0~200.0%
Temperature Measurement Range
0~50.0℃
DOS resolution
0.01mg/L
Air saturation resolution
0.1%
Temperature Resolution
0.1℃
DO measurement Accuracy
± 1.5%F.S
Accuracy of air saturation
± 1.5%F.S
Temperature measurement Accuracy
±0.5℃
Pressure compensation range
500 to 1125mBar adjustable, default value is 1013mBar
Salinity compensation range
0.0~40.0ppt adjustable, the default value is 0.0ppt
Electrode type
Fluorescence electrode
calibration data store
Yes.
Measured value storage
Yes, 50 sets.
Automatic temperature compensation
Yes.
Power
9 V battery
Ambient Temperature
0~50℃
Weight
260G (without battery)
Working Relative Humidity
<90%
size
70mm x 186mm x 37mm
9030M
Portable Dissolved Oxygen Meter
Fluorescence electrode (LSDO), 0~20ppm (mg/L), 0~200.0%, (fluorescence method)

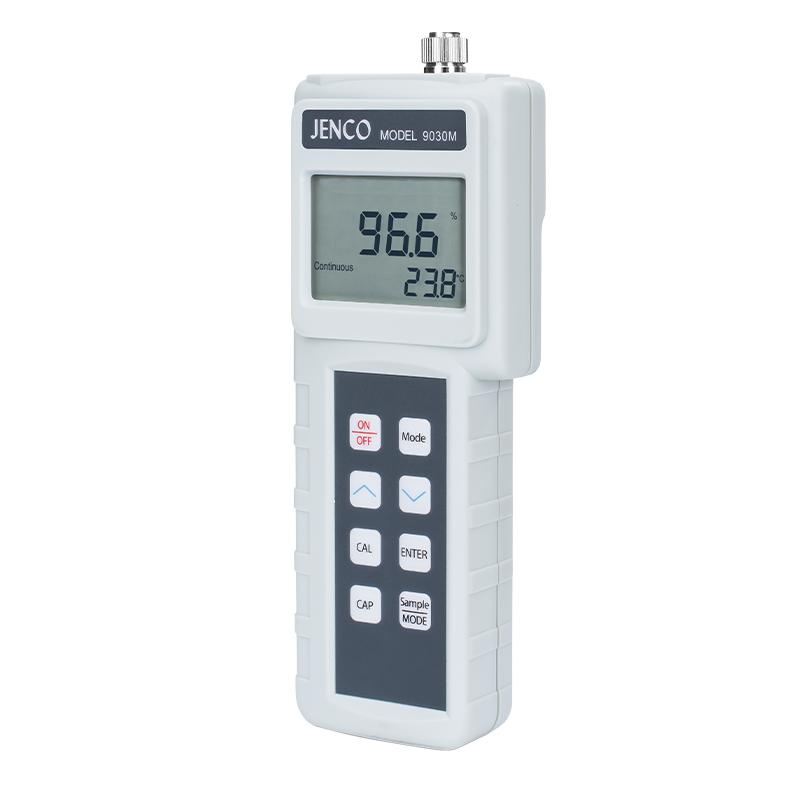

JENCO 9030M portable Dissolved Oxygen Meter, light-sensitive side Optical inspection DO Detector Picture

Introduction

This portable light side optical DO Detector and LSDO optical DO sensor provide users with selective salinity and pressure compensated DO data. It has the function of storing data for up to 50 previews, IP-65 waterproof housing, and the power supply is a standard 9V battery.

Features

  1. This product uses optical technology when measuring dissolved oxygen in water

  2. Simultaneous display of dissolved oxygen and temperature measurements

  3. Simple user interface

  4. Up to 50 items of data can be previewed and accessed

  5. Automatic temperature compensation dissolved oxygen data

  6. User selectable salinity and pressure compensated dissolved oxygen data

  7. IP-65 specification waterproof housing

  8. Automatic power off function

  9. Low battery indicator

  10. This product has passed RoHS and EU certification

Product display picture

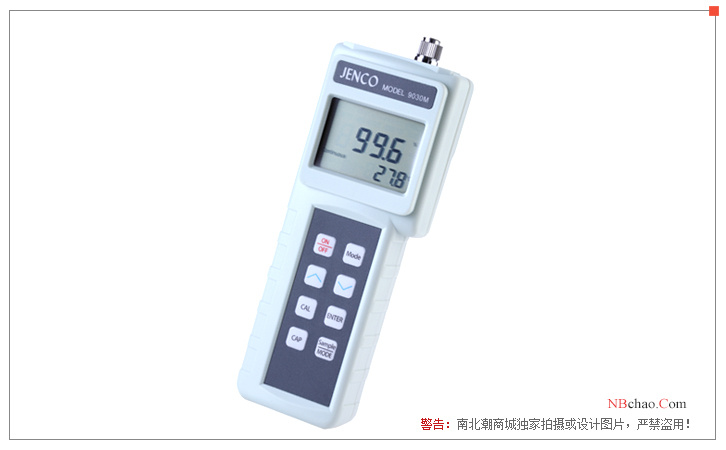

JENCO 9030M portable Dissolved Oxygen Meter display picture

FAQ
QHow does the 9030M portable dissolved oxygen meter increase the atmospheric pressure value?
A Hello, to change the atmospheric pressure value, you can press the up and down keys to increase or decrease.
QHow often does the electrode of Ren's jenco 9030M need to be changed?
A Hello, the electrode test cap needs to be replaced once a year.
QWhat electrode does JENCO 9030M use? What is the range of dissolved oxygen?
A Hello, this 9030M adopts fluorescent electrode, and the dissolved oxygen range is 0.00~ 20.00ppm.
