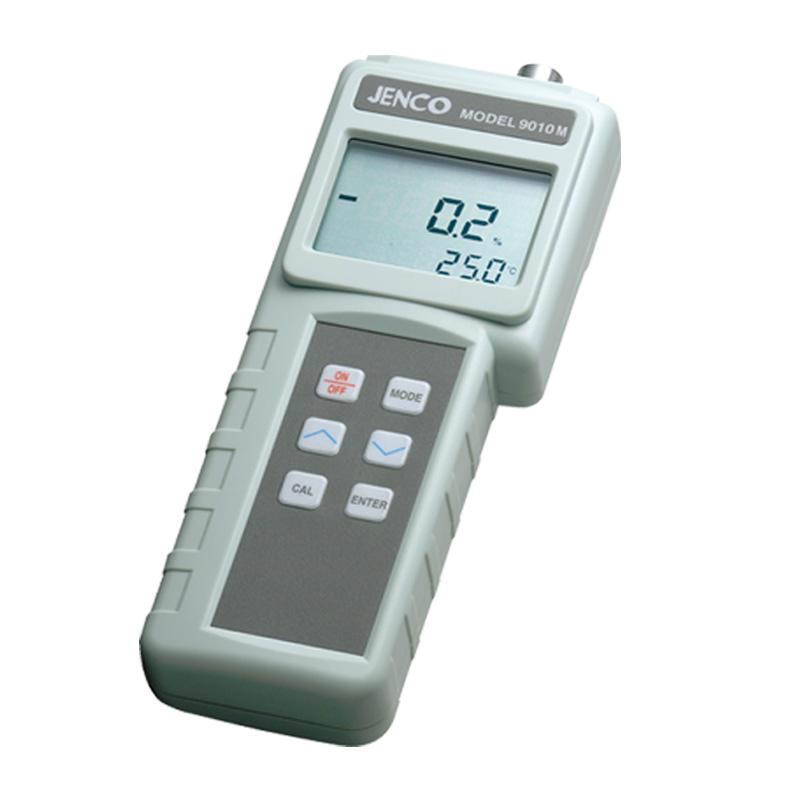

JENCO 9010M portable dissolved oxygen Tester, range: 0.00~20.00mg/L

JENCO 9010M portable dissolved oxygen Tester can display dissolved oxygen, air saturation, temperature value, JENCO 9010M dissolved oxygen value Measurement range of 0.00~20.00mg/L, widely used in aquaculture, river water quality measurement, sewage measurement.
Model：
Certificate
Contact
Details SPEC CAT OI
Similar products

JENCO 9010M Portable dissolved oxygen TesterSPEC

JENCO 9010M Portable dissolved oxygen TesterDetails

JENCO 9010M Portable dissolved oxygen TesterPacking list

SKU
NB002916
DO range
0.00~20.00ppm
DOS resolution
0.01ppm
Accuracy of air saturation
±0.5%FS
Air saturation range
0.0~200.0%
Air saturation resolution
0.1%
Accuracy of air saturation
±0.5%FS
Measurement range
-6.0~46.0℃
Temperature Resolution
0.1℃
Measurement Accuracy
+/- 0.3 ℃ +/- 1 word
Pressure compensation range
600~1100mBar adjustable, the default value is 1013mBar
Salinity compensation range
0.0~40.0ppt adjustable, the default value is 0.0ppt
Electrode type
polarography
calibration data store
Yes, 50 sets.
Automatic temperature compensation
Yes.
Power Supply
9V battery
Environmental temperature
0~50℃
Weight
About 260g (without battery)
DO Measurement Accuracy
± 0.5% FS
Working Relative Humidity
<90%
size
186x70x37mm
9010M
Portable dissolved oxygen Tester
JENCO 9010M portable dissolved oxygen Tester, range: 0.00~20.00mg/L Picture

Introduction

The 9010M is a dissolved oxygen Detector that is suitable for general use, easy to use, and can access up to 50 data records. The 9010M uses polarographic detection to obtain data.

Features

  1. Conductivity/salinity or one of the total solids capacity is displayed at the same time as the temperature measurement

  2. Access up to 50 data items

  3. Convenient single-point correction

  4. Automatic temperature compensation of dissolved oxygen data

  5. The user can select salinity and pressure to compensate for the dissolved oxygen data

  6. The polarographic formula has an automatic break

  7. Electric function (after 45 seconds of inactivity)

  8. The battery life is more than 500 hours

  9. IP-65 waterproof enclosure

  10. Low battery indication

  11. This product is RoHS and EU certified

Product display diagram

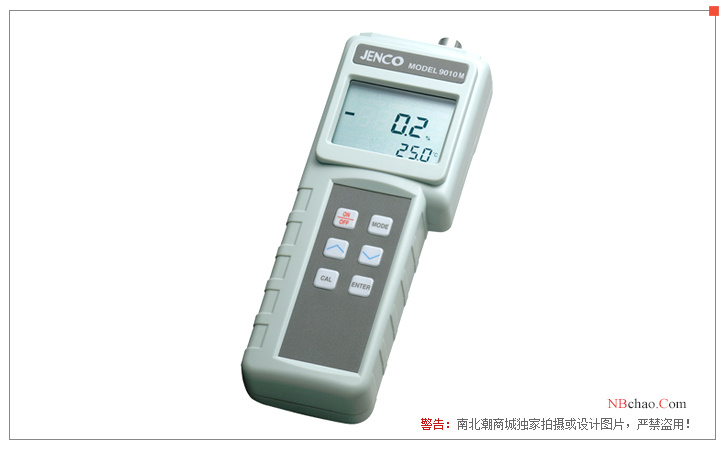

Illustration of Ren's JENCO 9010M portable dissolved oxygen Tester

FAQ
QPortable dissolved oxygen meter for sewage measurement, range 20, this one is OK?
A Sure
QJENCO 9010M dissolved oxygen instrument with what type of electrode?
A Hello, JENCO 9010M is specially equipped with a primary battery type dissolved oxygen electrode: LD-900-11, this dissolved oxygen electrode has a built-in temperature transducer, which can automatically sense the temperature.
QWhy does Ren's 9010M display "Udr"?
A Hello, Udr incorrectly indicates that your north side solution temperature is lower than -6 ° C.
QHow does Ren's 9010M dissolved oxygen meter test the dissolved oxygen value?
A Hello, 1. Press the "MODE" button to select the "dissolved oxygen -%" or "dissolved oxygen - ppm (mg/L) " mode. 2. Wash the dissolved oxygen electrode with distillation water and put it into the tested solution, which should be constantly stirred (the flow speed of the tested solution is about one foot per second, and the magnetic force can be used to Stirrer Stir). 3. After the value to be read is stable, it is the dissolved oxygen value of the tested solution.
QWhat power supply does Ren's 9010M dissolved oxygen tester use? What electrode?
A Hello, this JENCO 9010M uses a 9V battery to provide power, and comes standard with an LD-900-11 electrode.
QWhat is the dissolved oxygen test range of Jenco9010M?
A Hello, the range of dissolved oxygen value of this 9010M is 0.00~ 20.00mg/L, which can simultaneously test dissolved oxygen, air saturation and temperature value.
