IMT-Tensile 01 Tensile strength Tester (horizontal high precision)

SE
IMT-Tensile 01 material Tensile strength Tester (horizontal high precision model) is used for tension resistance, Tensile Strength, tensile index, fracture length, elongation, energy absorption, energy index testing, according to GB/T 453, GB/T 12914, ISO 1924.2 standards.
Contact
Details SPEC Con CAT
Similar products

IMT IMT-Tensile 01 Tensile strength Tester (horizontal high precision)SPEC

IMT IMT-Tensile 01 Tensile strength Tester (horizontal high precision)Details

IMT IMT-Tensile 01 Tensile strength Tester (horizontal high precision)Packing list

SKU
NB029185
Power resolution
1/100000
Data analytics sampling
Sampling frequency 400 times/sec
力值Accuracy
±0.1%(20～100％FS)
Error of indication
≤±0.5%
displacement resolution
≤0.01mm
Force Resolution
0.01N
Clamping method
Pneumatic automatic clamping (external air source is required), with its own pneumatic clamp to ensure stable Clamping Force, and its own test button on the clamp, which is easy to operate.
clamping pressure
0.2 - 0.7Mpa (adjustable)
Specimen size range
The positioning of the 1-25mm style is variable, and the size of the cutting style can be adjusted according to different test requirements.
Force range
0.4~ 100%FS
Elongation Measurement range
45~260mm
Test speed Accuracy
（1～10）mm/min；±0.1mm/min
stretching speed
1~ 500mm/min stepless speed change
return speed
1~ 500mm/min stepless speed change
Force range
0.1~300N
Sensing System Protection
Rapid sensor protection device PROTEC SYSTEM
Drive screw
Taiwan, China single column structure precision ball screw
Human Machine Interface
7.0In touch screen operation platform, switch between Chinese and English
function
Tension resistance, tensile strength, tensile index, breaking length, elongation, energy absorption, energy index.
printout
Modular integrated thermal printer
Dimensions
650*500*400mm
Weight
About 50kg
IMT-Tensile 01
Tensile strength Tester (horizontal high precision)

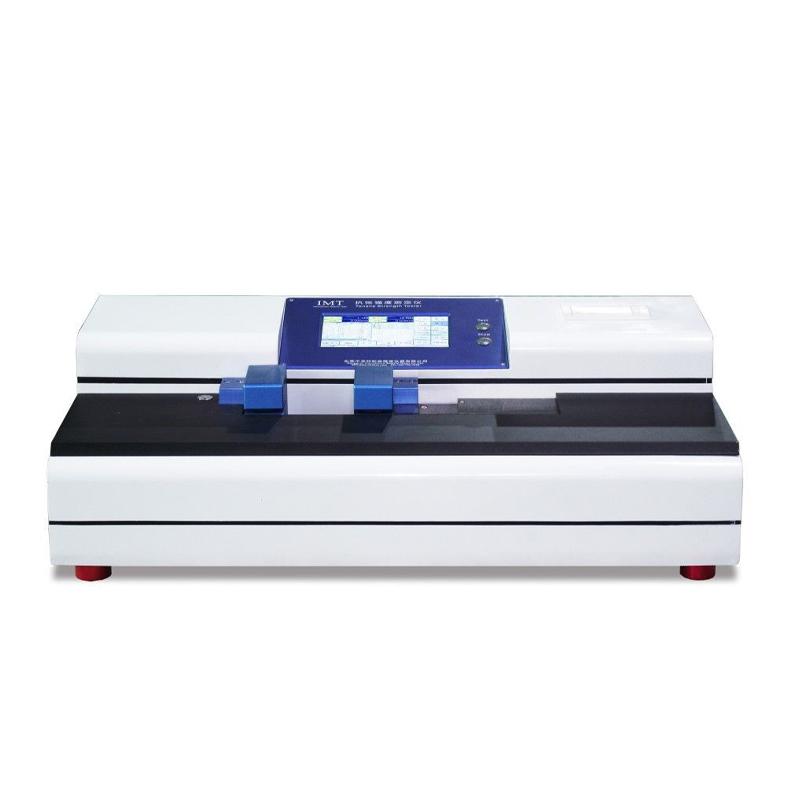

IMT-Tensile 01 Tensile strength Tester (horizontal high precision) Picture

Paper Tensile Stress Tester is used to detect the tensile stress of paper, the elongation of paper, the breaking length of paper, tensile energy absorption, tensile index, tensile energy absorption index, etc.


According to the standard

GB/T453, GB/T12914, ISO1924.2


Function

Tensile force, tensile strength, tensile index, breaking length, elongation, energy absorption, energy index.

FAQ
QTensile strength tester can measure elongation?
A Hello, it's OK.
QIs this the material Tensile strength tester (horizontal high precision) mentioned in GB/T22898?
A OK
