IMT-Tensile 02 material Tensile strength Tester (vertical high precision model)

SE
IMT-Tensile 02 material Tensile strength Tester (vertical high precision model) for measurement of tension resistance, Tensile Strength, tensile index, fracture length, elongation, energy absorption, energy index. According to standards GB/T453, GB/T 12914, ISO 1924.2
Contact
Details SPEC Con CAT
Similar products

IMT IMT-Tensile 02 Tensile strength Tester (vertical high precision)SPEC

IMT IMT-Tensile 02 Tensile strength Tester (vertical high precision)Details

IMT IMT-Tensile 02 Tensile strength Tester (vertical high precision)Packing list

SKU
NB029186
Power resolution
1/100000
Data analytics sampling
Sampling frequency 400 times/sec
力值Accuracy
±0.1%(20～100％FS)
Error of indication
≤±0.5%
displacement resolution
≤0.1mm
Force Resolution
0.01N
Specimen size range
1-25mm
Force range
0.4~ 100%FS
Elongation Measurement range
45~260mm
Test speed Accuracy
（1～10）mm/min；±0.1mm/min
stretching speed
1~ 500mm/min stepless speed change
return speed
1~ 500mm/min stepless speed change
Force range
0.1~300N
Test function
Tension resistance, tensile strength, tensile index, breaking length, elongation, energy absorption, energy index, etc
Heat sink
The front cover sheet metal is slotted by wire cutting process, and a heat dissipation channel is reserved.
Sensing System Protection
Rapid sensor protection device PROTEC SYSTEM
limit protection
High-precision distance limit switch is external, which can be adjusted instantly according to different material requirements
Drive screw
Taiwan, China single column structure precision ball screw
Human Machine Interface
5.0In touch screen operating platform, free conversion of Chinese and English, automatic printing data, with Linear dispersion analysis function.
software program
Can be linked to the computer for computer control test, print the report and output it by computer
printout
Modular integrated thermal printer
Dimensions
650*500*400mm
Weight
About 50kg
IMT-Tensile 02
Tensile strength Tester (vertical high precision)

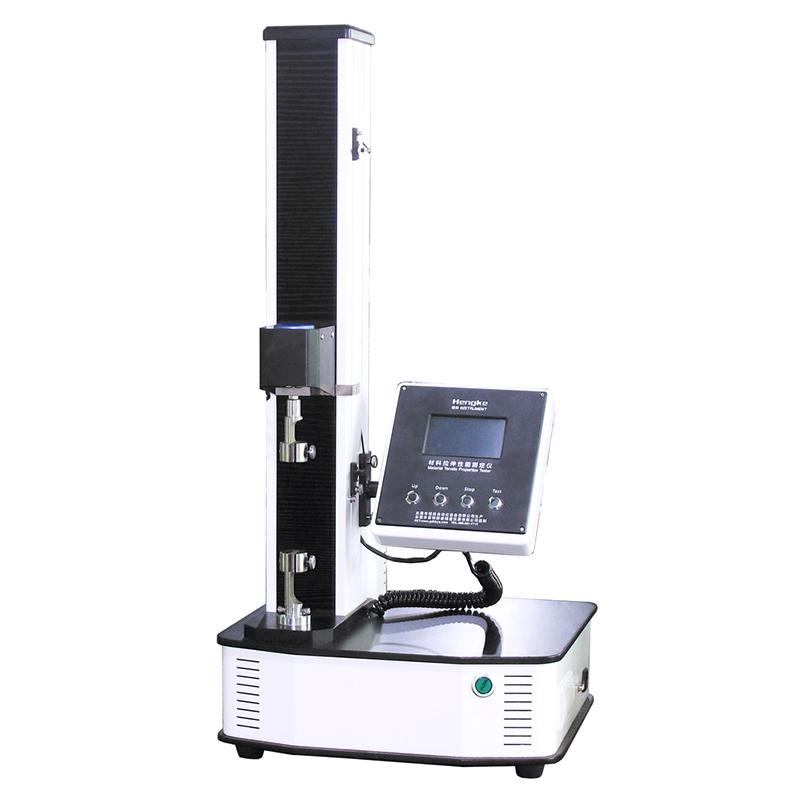

IMT-Tensile 02 material Tensile strength Tester (vertical high precision model) Picture

Paper Tensile Stress Tester is used to detect the tensile stress of paper, the elongation of paper, the breaking length of paper, tensile energy absorption, tensile index, tensile energy absorption index, etc.


According to the standard

GB/T453, GB/T12914, ISO1924.2


Function

Tensile force, tensile strength, tensile index, breaking length, elongation, energy absorption, energy index.

FAQ
QWhat is the sample size of this Tensile strength tester?
A Hello, the size is 1~ 25mm.
QHelp me find a material that meets the GB/T453 standard Tensile strength tester
A This IMT-Tensile 02 material Tensile strength tester is fine!
