IMT-CJ01 Interlayer bonding strength Tester Paper Cardboard

SE
Interlayer bond strength Tester is used to detect the bonding strength between Paper and Cardboard layers (between Paper layers, within Paper). The interlayer bonding strength can be used to detect Paper composites, thin film composites, etc. at the same time. Internal bonding strength of sheet materials.
Model：
Contact
Details SPEC Con CAT
Similar products

IMT IMT-CJ01 Interlaminar Peel TesterSPEC

IMT IMT-CJ01 Interlaminar Peel TesterDetails

IMT IMT-CJ01 Interlaminar Peel TesterPacking list

SKU
NB029196
Specimen size
25.4*25.4mm
Number of samples
5 groups
Specimen parallelism
Less than 0.1mm
Maximum sampling Film thickness
1.5mm
Common sample pressure
(690 ± 21) kpa (1034 ± 34) kpa
Sample holding force
0~600N (adjustable)
impact angle
90°
Secondary gravity structure
Secondary gravity overlaps to ensure the Accuracy of the secondary measurement structure
resolution
0.001lbf / in ²
Release method
Fully automatic release
Double-sided adhesive force
>486N/m
Measuring range
File A
Self-calibrating
Can be calibrated
Oil circuit full scale system
Equipped with an independent refueling window, the refueling work can be completed quickly
Oil circuit exhaust system
Equipped with an independent exhaust window, the exhaust work can be completed quickly
Error of indication
File A
unit
J/M²、lbf/in²
Display
3.2In LCD display, real-time display of test data
software
Optional computer connection software, office file processing documents, end point A4 printing (optional)
printout
Modular integrated thermal printer
Dimensions
500*400*650mm
Weight
45KG
IMT-CJ01
Interlaminar Peel Tester
Interlayer bond strength Tester is used to detect the bonding strength between Paper and Cardboard layers (between Paper layers, within Paper). The interlayer bonding strength can be used to detect Paper composites, thin film composites, etc. at the same time. Internal bonding strength of sheet materials.

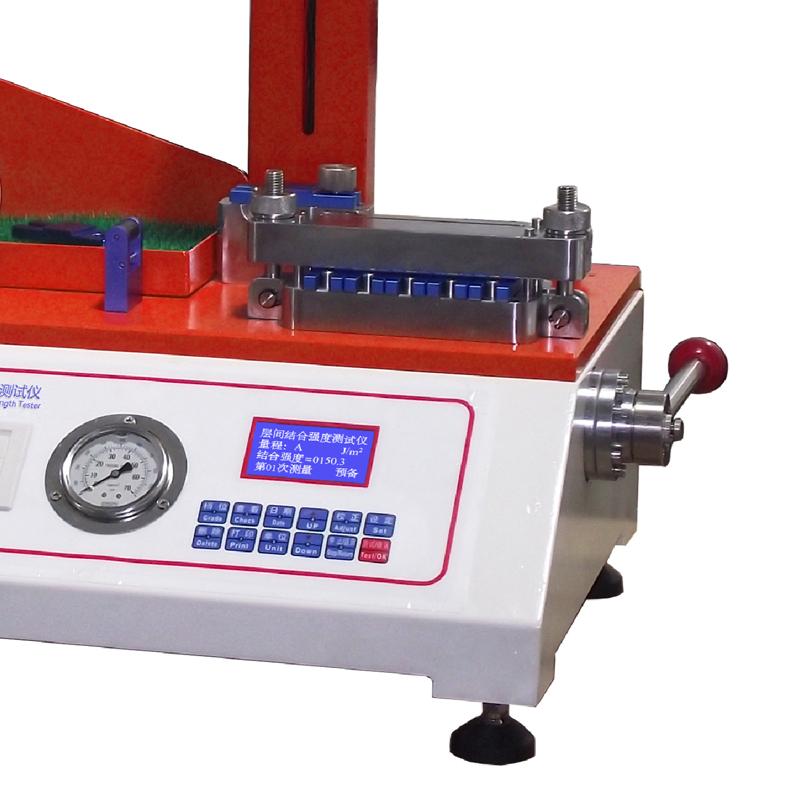

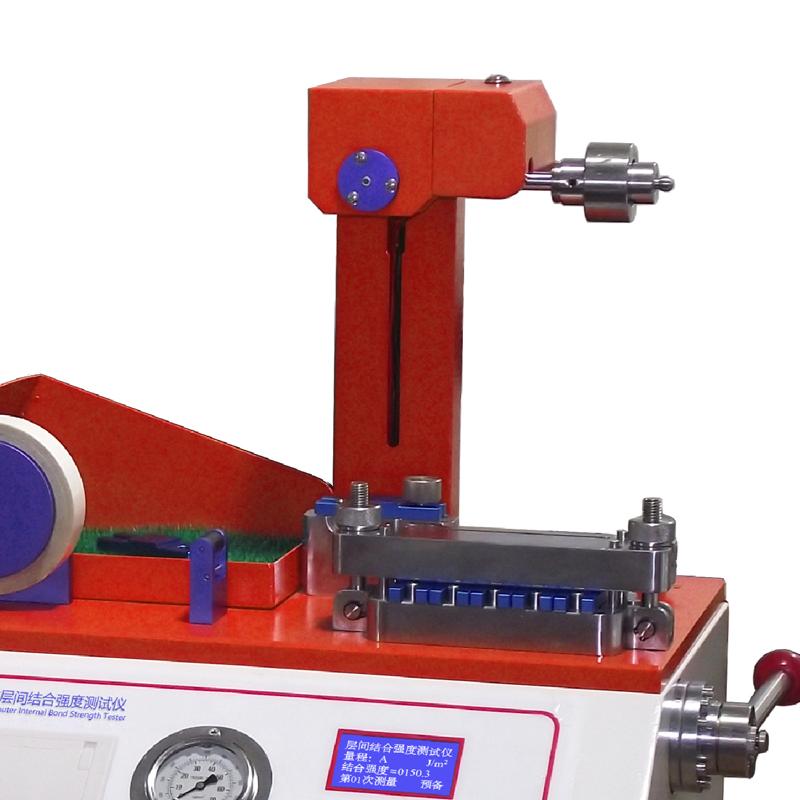

IMT-CJ01 Interlayer bonding strength Tester Paper Cardboard Picture

use

The interlayer bond strength Tester is a detection instrument for detecting the bond strength between paper and cardboard layers (bonding between layers of paper and within paper). The bond strength between layers can be used to detect paper composite materials, film composite materials, etc. The internal bonding strength of other sheet materials.

According to the standard

GB/T 26203, ASTM T569 pm-00

FAQ
QWhat is the maximum Film thickness that this Interlayer bond strength tester can measure?
A Hello, it's 1.5mm.
QMeet GB/T26203 Interlayer bonding strength tester
A IMT-CJ01 Interlayer bonding strength tester, please refer to it.
