LANDTEK GM-6 Integrated Glossiness Meter 60 °
GM-6 (integrated)
-
IWAVE WG60T Glossmeter 60 ° single angle new Glossiness detection instrument, matte special model$ 350.00SE -
AMITTARI AG-106B 60 ° integral portable Glossmeter$ 231.00SE -
IWAVE WG60 Glossmeter 60 ° inks paints, wood, marble, granite, ceramics, plastics, paper, etc$ 270.00SE -
3NH HG60S paints Glossmeter 60 degree economical Glossmeter
LANDTEK GM-6 (integrated) GlossmeterSPEC
LANDTEK GM-6 (integrated) GlossmeterDetails
LANDTEK GM-6 (integrated) GlossmeterPacking list
- SKU
- NB029271
- Measurement angle
- 60°
- Measurement range
- 0~200GU
- Repeatability
- ±0.5GU
- Measuring Area
- 7*14mm
- error of indication
- ±1.2GU
- Measurement mode
- Single measurement, continuous measurement
- Graduation
- 0.1GU
- Standards
- ASTM D523、ASTM D1455、ASTM C346 、ASTM C584、 ASTM D2457、DIN67530、ENISO7668、JISZ8741、MFT30064、TAPPIT480、 Gb9754、 GB/T13891、GB7706、GB 8807
- Interface
- USB interface, RS-232, Bluetooth
- Data storage
- 254 groups
- Display
- Blue backlight, 4-digit display, 10 mm LCD
- Operating language
- Chinese
- Dimension
- 140*45*75mm
- Weight
- 305G (including battery)
- Power Supply
- Built-in rechargeable 3.7V + ion battery
- software
- RS232 software
- Operating temperature
- 0~40℃
- Stability
- ±0.4GU
- Relative Humidity
- <85%RH
- Measurement port shape
- ellipse
Description
The gloss meter GM-6 provides 20/60 degree measurement, repeatability ± 0.5 GU, range: 0.1-200, widely used for gloss measurement of flooring, plastics, automotive coatings, etc.
Features
* Comply with international ASTMD-523, DIN67530, JISZ8741, TAPPIT480 and GB8807 standards. The technical parameters are in line with the standard of JJG696-2002.
* Precise structure, sturdy and durable structure, light appearance, easy to carry.
* Fully intelligent design, fast measurement. Accurate measurement and good repeatability.
* Up to 254 sets of data can be stored for instant viewing or imported to a computer.
* Built-in rechargeable lithium-ion battery.
* There is a backlit display, which is convenient for use in low-light environments.
* RS-232 data cable output, connected with PC.
* Bluetooth Bluetooth data output options available.
Meets standards
LANDTEKGloss meterGM-6 complies with international ASTMD-523, ASTMD1455, ASTM C346, ASTMC584, ASTM D2457, DIN67530, ENISO7668, JISZ8741, MFT30064, TAPPIT480, GB9754, GB/T13891, GB7706 and GB 8807 standards. The technical parameters are in line with the standard of JJG 696-2002.
Product Applications
LANDTEK GM-6 gloss Tester is widely used in the maintenance of flooring, quality control of surface cleaning, gloss measurement of stones and tiles, inspection of spray paint, quality control of paint, ink and polished metal surfaces, inspection of paint protective layer, wax film, automobile body paint, plastic moldings, detergents, cleaners, masonry industry, and building exterior evaluation.

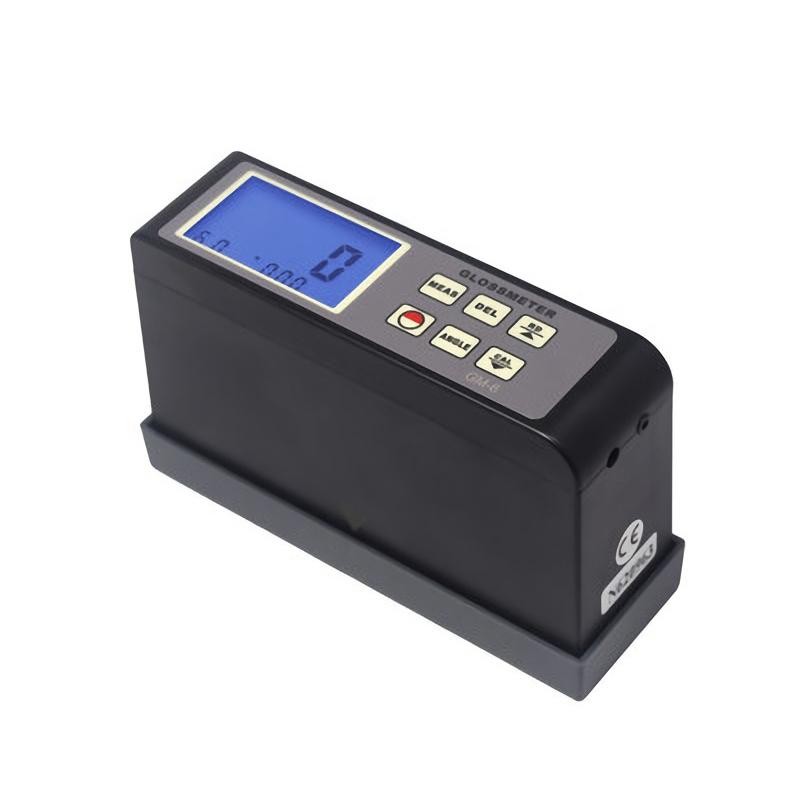

GM-6 gloss meter real picture
