3NH YL4560 45 °/0 ° Non-contact Colorimeter Enhanced LED + UV Customizable caliber, automatic lifting

SE
Light spectrum LED Light source + UV Light source, concave grating spectroscopy, manual/automatic adjustment of measurement distance, chromatic value Repeatability Delta E * ab < 0.03, inter-stage difference Delta E * ab < 0.2, camera viewfinder positioning, USB + Bluetooth 5.0 Interface. Measurement diameter φ 20mm (customizable φ 10mm, φ 4mm)
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

3NH YL4560 Non-contact ColorimeterSPEC

3NH YL4560 Non-contact ColorimeterDetails

3NH YL4560 Non-contact ColorimeterPacking list

SKU
NB029285
Lighting method
45/0 (45 annular uniform illumination 0 ° reception); conforms to standard CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7, GB 2893, GB/T 18833
lighting source
Light spectrum LED light source, UV light source
Spectroscopic method
Concave grating spectroscopy
sensor
256-Pixel dual array CMOS image sensor
Wavelength range
400~700nm
Reflectance Measurement Range
0~200%
Measurement caliber
Φ20mm（可定制Φ10mm、Φ4mm）
Non-contact measurement distance
7.5mm
Sample height
0~150mm
Distance adjustment method
Manual adjustment, automatic adjustment (can store test height)
Measurement mode
sample mode
Positioning method
Camera positioning
Color space
CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB
Color difference formula
ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE（Hunter）
Chromaticity indicator
WI, YI, TI, homochromatic index MI, lightfastmess, color fastness, force, coverage
Viewing Angle
CIE 2 ° / 10 °
Observation light source
D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
display mode
Light spectrum map/data, sample chromatic value, color difference value/map, chromaticity map, Color simulation, pass/fail results, display tolerance can be set
Measurement time
About 1.5s
Data storage
40,000 sample mode + quality control mode; 10,000 continuous statistics mode
Spectral reflectance repeability
Standard deviation within 0.08%
Inter-station difference
ΔE * from < 0.2
Measurement mode
Single measurement, average measurement (2~ 99 times)
Dimensions
330*250*370mm
Weight
About 10Kg
Power
DC 24V, 3A power adapter Power
Lighting source life
5 years more than 3 million measurements
Display
TFT true color 7inch, capacitive touch screen
Data Interface
USB/RS-232, Bluetooth ® 4.0
Operating language
Simplified Chinese, English, Traditional Chinese
Operating conditions
0~40 ℃, 0~85% RH (no condensation), altitude: less than 2000m
Storage environment
-20~50 ℃, 0~85% RH (no condensation)
Chromatic value repeability
ΔE * ab within 0.03
YL4560
Non-contact Colorimeter
Light spectrum LED Light source + UV Light source, concave grating spectroscopy, manual/automatic adjustment of measurement distance, chromatic value Repeatability Delta E * ab < 0.03, inter-stage difference Delta E * ab < 0.2, camera viewfinder positioning, USB + Bluetooth 5.0 Interface. Measurement diameter φ 20mm (customizable φ 10mm, φ 4mm)

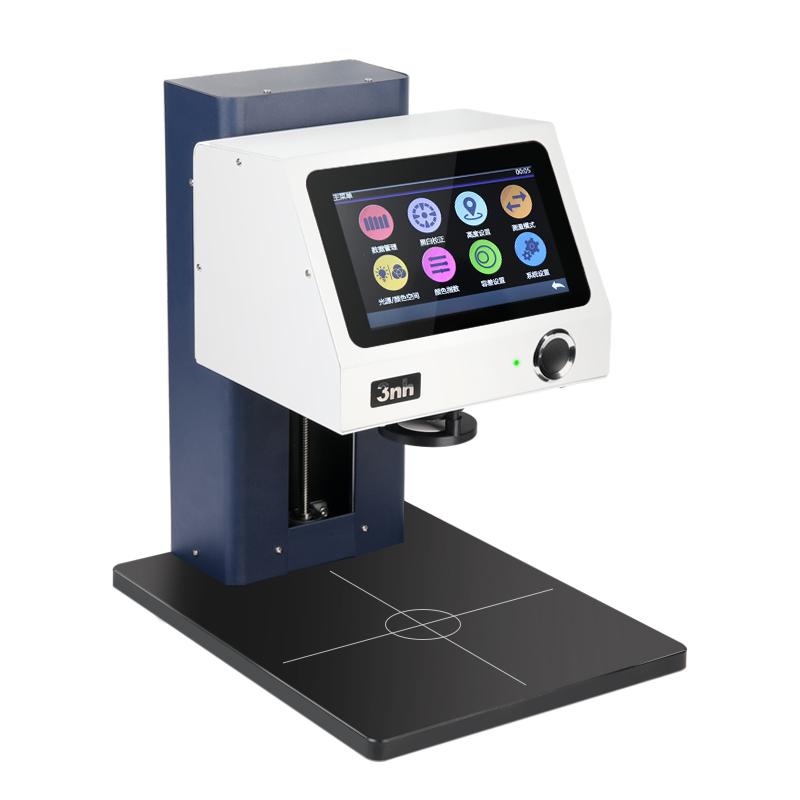

3NH YL4560 45 °/0 ° Non-contact Colorimeter Enhanced LED + UV Customizable caliber, automatic lifting Picture

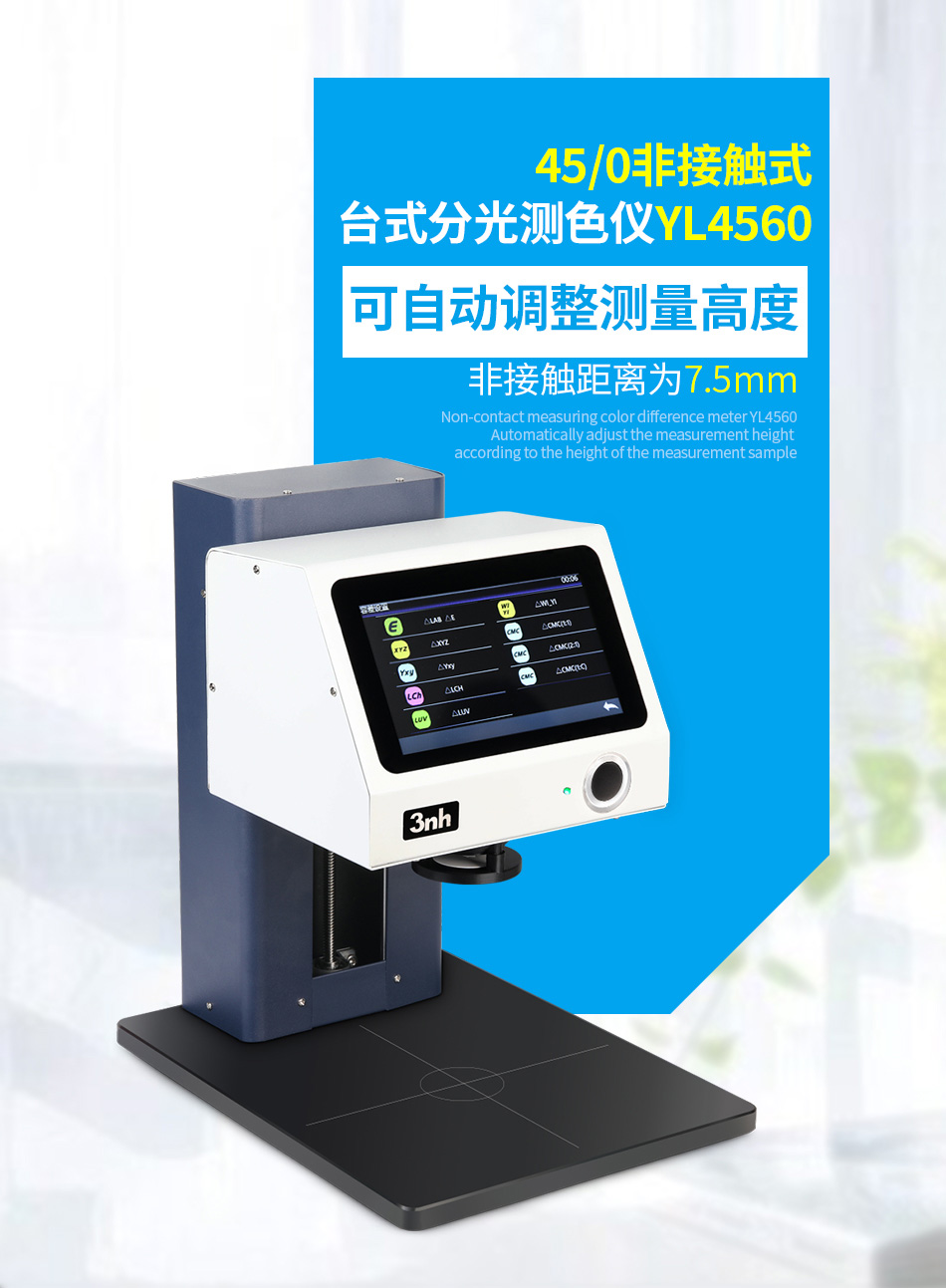

3nh YL4560 Non-contact Spectrophotometer Details Figure 1

3nh YL4560 Non-contact Spectrophotometer Details Figure 2

3nh YL4560 Non-contact Spectrophotometer Details Figure 3

3nh YL4560 Non-contact Spectrophotometer Details Figure 4

3nh YL4560 Non-contact Spectrophotometer Details Figure 5

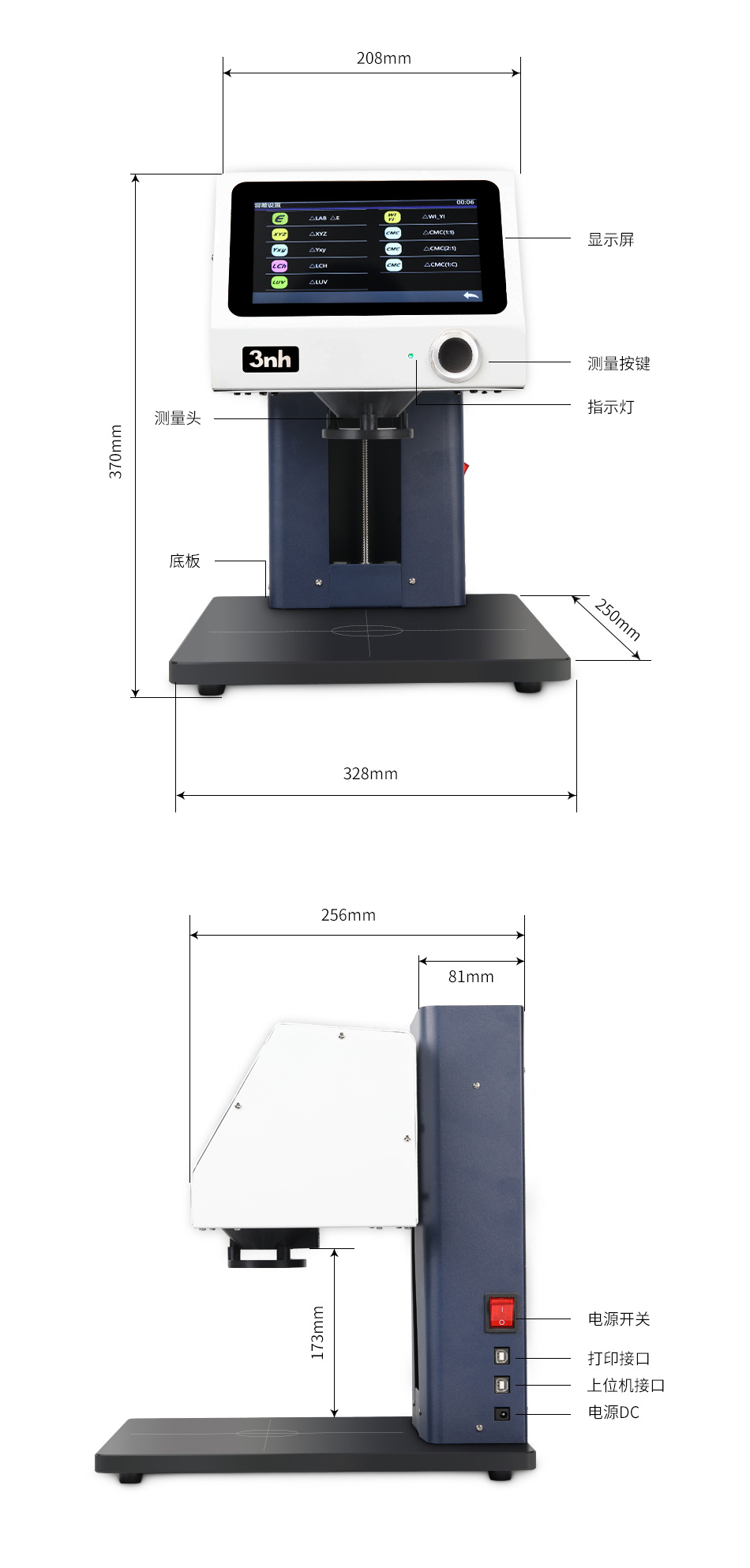

3nh YL4560 Non-contact Spectrophotometer Details Figure 6

3nh YL4560 Non-contact Spectrophotometer Details Figure 7


FAQ
QCan Colorimeter test round tubes that are 25-40mm?
A Yes, but the caliber of 4mm needs to be customized.
QDoes the non-contact Colorimeter meet the specifications of QB/T2789?
A Model YL4560 Non-Contact Colorimeter Compliant
