JENCO 9173 desktop dissolved oxygen (DO) Tester, dedicated to laboratories

SE
0~20ppm, 0~200.0%, -6~ 50.0 ℃, salinity compensation range 0~40.0ppt, pressure compensation range 600~1100mBar.
Model：
Certificate
Contact
Details SPEC CAT OI
Similar products

JENCO 9173 Dissolved oxygen (DO) TesterSPEC

JENCO 9173 Dissolved oxygen (DO) TesterDetails

JENCO 9173 Dissolved oxygen (DO) TesterPacking list

SKU
NB002939
DO range
0.00~20.00ppm
DOS resolution
0.01
DO Measurement Accuracy
±0.2%FS
Electrode type
Polarographic electrode
DO temperature compensation range
-6.0~46.0℃
Pressure compensation range
600~1100mBar adjustable, the default value is 1013mBar
Salinity compensation range
0.0~40.0ppt adjustable, the default value is 0.0ppt
calibration data store
Yes.
Power Supply
AC power converter (output: DC9V) or 6 1.5 volt 5 #batteries
Environmental temperature
0~50℃
Dimensions
230*165*80mm
Weight
650G (without battery)
Air saturation range
0.0~200.0%
Air saturation range
0.1%
Accuracy of air saturation
± 0.2% FS
Measurement range
-6.0~46.0℃
Temperature Resolution
0.1℃
Measurement Accuracy
±0.3℃
Electrode type
polarography
DO temperature compensation
automatic
Working Relative Humidity
<90%
9173
Dissolved oxygen (DO) Tester
0~20ppm, 0~200.0%, -6~ 50.0 ℃, salinity compensation range 0~40.0ppt, pressure compensation range 600~1100mBar.

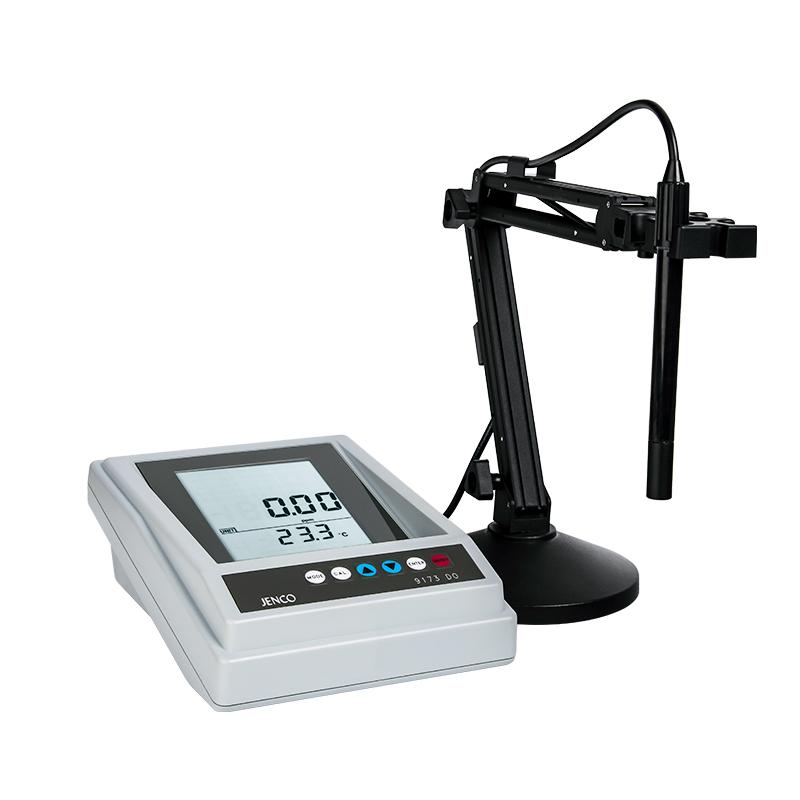

JENCO 9173 desktop dissolved oxygen (DO) Tester, dedicated to laboratories Picture

Introduction

The dissolved oxygen Tester uses an extra-large LCD display panel, which is easy to use. Uses polarographic sensors, interchangeable diaphragms, programmable pressure compensation, 600 to 1000 mBar, salinity compensation, 0 to 40.0 ppt. Dissolved oxygen and temperature are displayed on the dual-display LCD screen, and RS-232-C interface. The ATC is a 10K thermal resistor and uses a 115/230V mixer or battery.

  • High Definition LCD panel display (4 1/8 x 3 1/16 in.)

  • The high-definition LCD panel displays the amount of dissolved oxygen: air saturation ratio or dissolved oxygen per 1,000 parts, and the temperature can also be displayed at the same time

  • Temperature-compensated dissolved oxygen data is performed manually or automatically

  • The user can select salinity and pressure to compensate for the dissolved oxygen data

  • Polarographic detection allows users to obtain accurate and reliable data

  • Convenient single-point calibration, dissolved oxygen calibration data can be stored, and it can be used right out of the box

  • Auto-lock mode with auto-sensing shutdown to keep your data safe

  • The touch & voice membrane keypad allows you to operate the instrument intuitively

  • The water-repellent housing is made of durable, reinforced plastic for added protection and includes a connector protective cover

  • Offset LCD panels are protected against damage caused by carelessness.

  • The small body does not take up desk space

  • RS-232 specification computer interface

  • 8 pin DIN connector for dissolved oxygen and thermal resistor

  • Use the power supply as a power mixer or battery

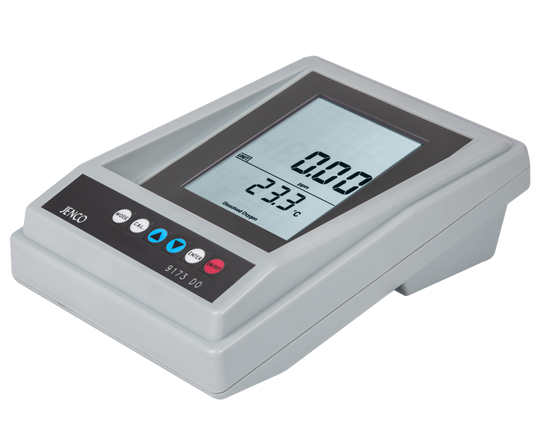

JENCO 9173 Benchtop Dissolved Oxygen (DO) Tester for laboratories

Standard configuration

9173

Main engine, LD-900-7 electrode, LD-900-3A electrode membrane head, 007A universal electrode holder, AC Voltage regulator source, battery

9173R

Host, LD-900-7 electrode, LD-900-3A electrode membrane head, 007A electrode holder, AC Voltage regulator source, battery, software, data cable
