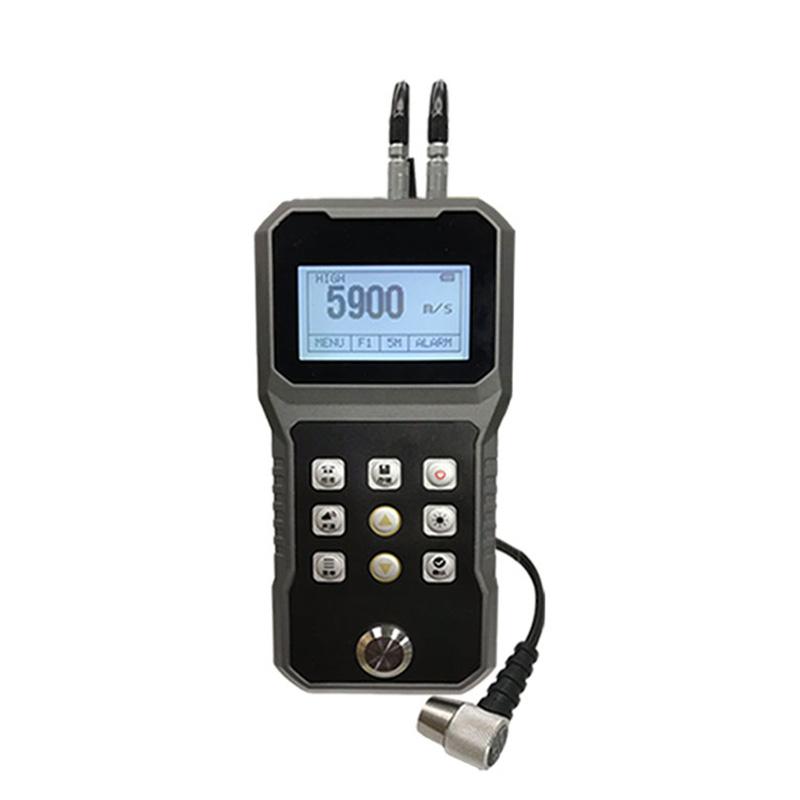

BOTECH BT-180C Ultrasonic Thickness Gauge 0.68~ 300mm

BOTECH BT-180C intelligent Ultrasonic Thickness Gauge uses segment code liquid crystal display, thickness measurement range of 0.68~ 300mm, is a portable high accuracy Ultrasonic Thickness Gauge, support the sound speed of test materials, BT-180C is suitable for chemical, metallurgy, shipbuilding, aviation and other fields.
Model：
Certificate
Contact
Details SPEC OI
Similar products

BoTech BT-180C Ultrasonic Thickness GaugeSPEC

BoTech BT-180C Ultrasonic Thickness GaugeDetails

BoTech BT-180C Ultrasonic Thickness GaugePacking list

SKU
NB029403
Measurement Range
0.68~ 300mm (in steel), metric and imperial can be freely converted
probe diameter
Φ10mm
Lower limit of pipe measurement
Should 20mm * 3.0mm (5MHz probe); Should 15mm * 2.0mm (7MHz probe optional)
measurement error
+/- 0.04mm (< 10mm )； +/- 0.5% H + 0.01mm (> 10mm); H is the actual film thickness of the measured object
Display resolution
0.01mm
unit system
Metric or imperial (optional)
Calibrated
Probe zero and two point calibrating function
measurement mode
There are two Operating Modes of thickness measurement: single-point thickness measurement and scanning thickness measurement
measurement speed
4 times/sec for single point measurement, 10 times/sec for scanning mode
storage Capacity
2000 Film thickness measurements can be stored
Sound speed range
1000~9999m/s
Display
High contrast ratio segment LCD display, high luminance EL backlight
Data Interface
RS232 interface
Ambient Operating Temperature
-20~+50℃
Working Relative Humidity
≤90％
Storage temperature
-30~+70℃
Power Supply
2 AA size alkaline batteries (No. 5)
Operating Time
More than 160 hours (when the backlight is not turned on)
Host size
170×80×38mm
Weight
255g
BT-180C
Ultrasonic Thickness Gauge

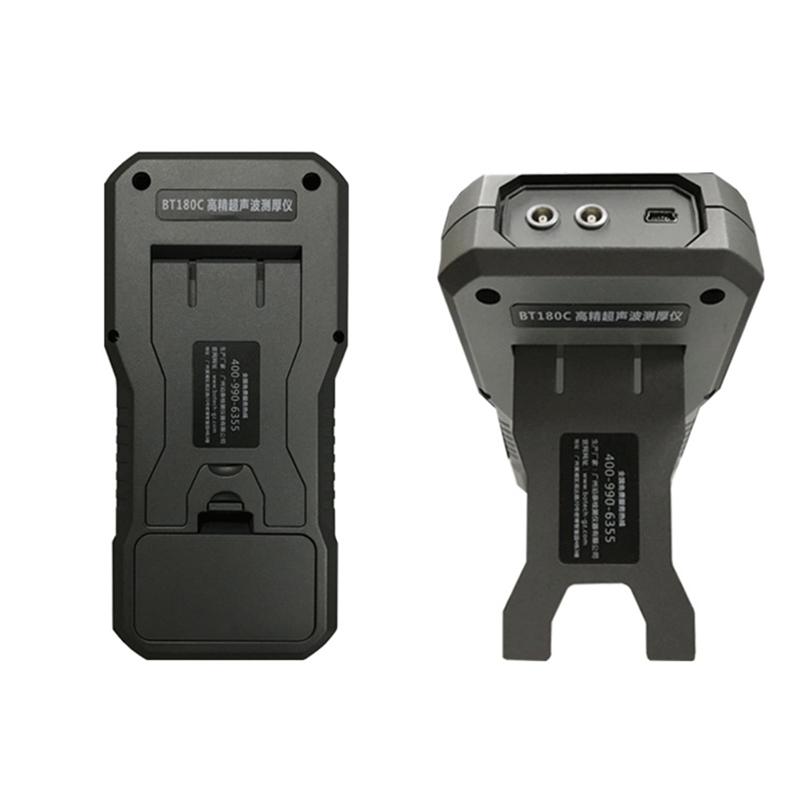

BOTECH BT-180C Ultrasonic Thickness Gauge 0.68~ 300mm Picture

Introduction

The BT-180C is an intelligent ultrasonic Thickness Gauge with a new high performance, low performancePower-consuming microprocessor technology, based on the ultrasonic measuring principle, can measure metals and moreThe thickness of a wide range of materials can be measured, and the sound velocity of the material can be measured. It is possible to set up for productionVarious pipes and pressure vessels are monitored to monitor them for corrosion during useThe degree of thinning after etching can also be accurately measured for various plates and various machined parts.

This instrument can be widely used in petroleum, chemical industry, metallurgy, shipbuilding, aviation, aerospace and so onfields.

Features

  • It is suitable for measuring the thickness of metals (such as steel, cast iron, aluminum, copper, etc.), plastics, ceramics, glass, fiberglass and any other good conductor of ultrasonic;

  • It can be equipped with a variety of dual element probes with different frequencies and different element sizes;

  • It has the functions of zero point calibration and two-point calibration of the probe, which can automatically correct the system error;

  • Known thickness can be used to measure the sound velocity back, so as to improve the measurement accuracy;

  • It has the function of coupling status prompt;

  • There is EL backlight display, which is convenient to use in dimly lit environments;

  • There is a residual power indication function, which can display the remaining battery power in real time;

  • It has power-saving functions such as automatic sleep and automatic shutdown;

  • Small, portable, and highly reliable, it is suitable for harsh operating environments and is resistant to vibration, shock and electromagnetic interference.

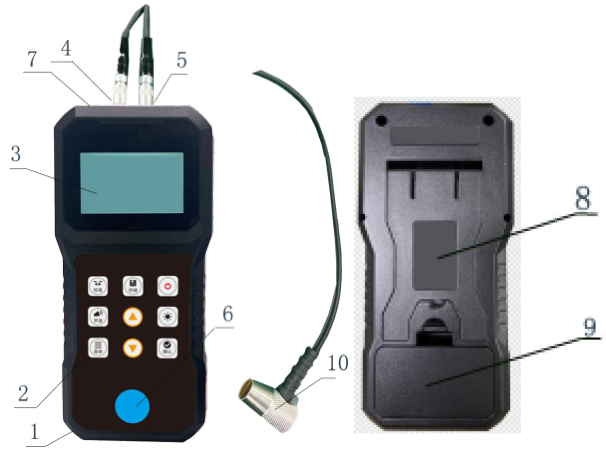

Product structure diagram

Detail Figure 1 of the Pertai BT-180C Ultrasonic Thickness Gauge

1 shell; 2 keyboards; 3 LCD screens; 4 Transmitting sockets; 5 receiving outlets; 6. Calibrate the thickness block; 7. Communication socket (there is no communication interface in the communication version); 8 nameplates; 9. a battery compartment cover; 10 Ultrasound Probe (referred to as Probe)

FAQ
QHow thick can this BT-180C Ultrasonic Thickness Gauge be measured?
A BT-180C Ultrasonic Thickness Gauge can detect sample thickness up to 0.68mm
