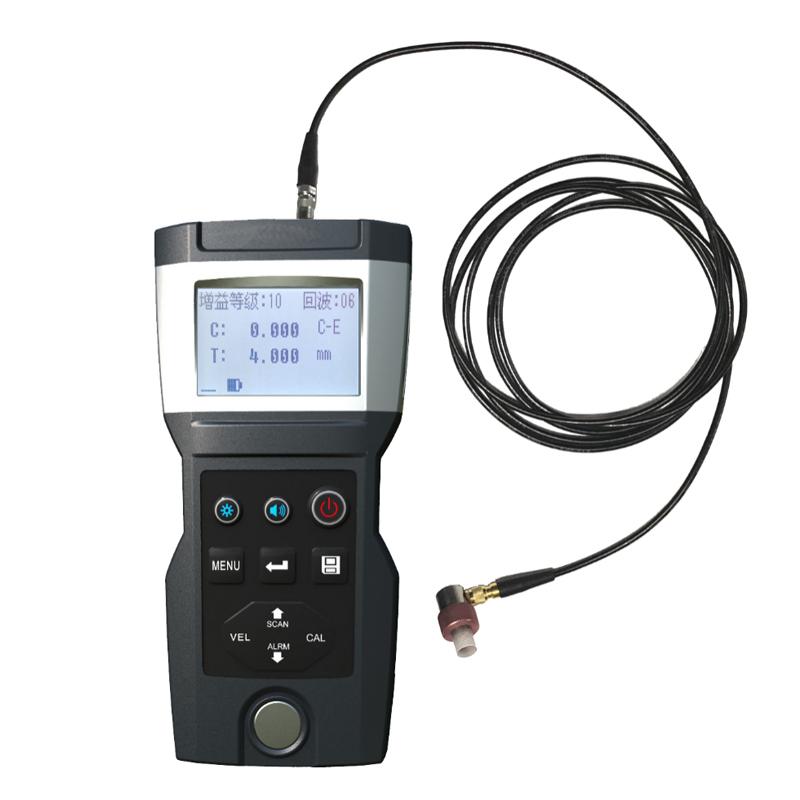

KAIRDA NDT360 Ultrasonic Thickness Gauge 0.15~ 300mm
SE
NDT360
-
IPRE UT150 Ultrasonic Thickness Gauge measurement range 1~ 225mm$ 234.00SE -
LEEB333 high-precision Ultrasonic Thickness Gauge Display resolution 0.001mm$ 487.00SE -
LEEB331 Metal Ultrasonic Thickness Gauge Speed of sound adjustable$ 332.00SE -
German EPK MiniTest 440 Ultrasonic Thickness Gauge Penetration coating thickness measurement$ 2026.00SE
KairDa NDT360 Ultrasonic Thickness GaugeSPEC
KairDa NDT360 Ultrasonic Thickness GaugeDetails
KairDa NDT360 Ultrasonic Thickness GaugePacking list
- SKU
- NB029482
- Measuring range
- 0.15~ 300 mm (45 #steel)
- Measurement error
- 0.03mm ∈ 0.3% * H
- Display resolution
- 0.001mm
- unit system
- mm
- Calibrated
- Probe calibrated, two point calibrated
- Measurement mode
- Single point measurement, scan measurement, upper limit scan, lower limit scan, limit scan, difference measurement, over limit alarm
- Measurement speed
- 2~ 4 times/second
- Storage Capacity
- 1000 sets of measurement results, including Film thickness measurement, measurement speed, measurement time and other related information
- Sound speed range
- 1~19999 m/s
- Display
- Chinese and English menus can be switched, FSTN LCD display, backlight with cold light source lighting
- Data Interface
- Bluetooth/Mini-USB interface, virtual serial communication, data transmission with PC or smart end point device
- Operating Temperature
- -10 ~ 50 °C
- Storage temperature
- -30 ~ 60 °C
- Power
- Built-in 3.7V rechargeable lithium-ion battery (Charging time is about 3 to 4 hours)
- Host size
- 157mm*78mm*37mm
- Body material
- ABS + PC alloy
- Weight
- About 260g
- Anti-measurement sound speed function
- support
- operating frequency
- 2MHz3MHz5MHz15MHz
- Calibrating block
- 4.000mm (steel)
- Gain range
- 16 gears gain adjustable
- Display content
- Film thickness, speed of sound, coupling state, effective echo number, power state, time, etc
- Data printing
- Optional portable Bluetooth thermal printer
- Automatic shutdown
- Standby timeout (can be set) automatic shutdown, underVoltage (less than 3.4V) automatic shutdown
- Instrument case material
- High impact ABS (IK08), waterproof and dustproof (IP67)
Introduction
Ultra-thin portable digital ultrasonic Thickness Gauge adopts the principle of pulse-reflection ultrasonic measurement. It is suitable for measuring the thickness of various materials in which ultrasonic waves can propagate at a constant speed and can be reflected from the back. The measurement resolution is as high as 0.001. mm. This instrument can accurately measure various plates and various processed parts. It is suitable for measuring the thickness of metals (such as steel, cast iron, aluminum, copper, etc.), plastics, ceramics, glass, glass fibers and any other good conductors of ultrasonic waves. It is widely used in petroleum, chemical industry, metallurgy, shipbuilding, aviation, aerospace and other fields.
Standards
"Calibration Specifications for Ultrasonic Thickness Gauge" JJF 1126-2004
Features
Using high-precision timing chip and V-PATH calibration model to achieve accurate measurement, the display resolution is as high as 0.001mm, and the measurement results can be broadcast by intelligent voice
Both single-element and dual-element probes are supported, which can not only measure ultra-thin workpieces accurately, but also take into account conventional large-range measurements
Supports real-time temperature compensation to eliminate measurement errors caused by probe temperature changes. After the probe is inserted into the instrument, it only needs to be calibrated once and can be used for a long time without frequent calibration.
Through-coat measurement and simultaneous measurement of coating and substrate thickness (advanced version)
Built-in Bluetooth module, can carry out wired and wireless data transmission with PC or intelligent terminal equipment, and can also perform wireless printing
Support real-time online measurement, PC command control (command version)
The main function
With multiple measurement methods of pulse echo (PE), interface echo (IE) and echo echo (EE), it can perform conventional measurement and through-coating measurement (some functions are limited to the advanced version)
Multi-level gain is adjustable, which can be set according to the actual measurement of the workpiece to achieve good measurement results in different scenarios
It has various measurement modes such as upper and lower limit scanning, difference measurement, over-limit alarm, etc.
The known thickness can reverse the sound velocity to improve the measurement accuracy
Rich display information, including thickness value, sound velocity, coupling status, echo number, battery status, time, etc.
Completely save measurement information, including measurement thickness, measurement sound velocity, measurement time, etc.
Probe selection
| Probe Specifications | S15-P06 | G5M-P10 | G5M-P08 | G2M-P12 | H3M-P12 |
| Probe label | 15M Φ6 | 5M Φ10 | 5M PT-08 | 2M ZT-12 | 3M GT-12 |
| Probe type | single crystal | twin crystal | twin crystal | twin crystal | twin crystal |
| Measuring range (45# steel) | 0.15~28mm | 1.2~225mm | 1.2~225mm | 3.0~300mm | 2.0~200mm |
| Probe outer diameter | 8mm | 13mm | 11mm | 17mm | 15mm |
| Effective area diameter | 6mm | 10mm | 8mm | 12mm | 12mm |
| Measurement frequency | 15MHz | 5MHz | 5MHz | 2MHz | 3MHz |
| contact temperature | -10~60°C | -10~60°C | -10~60°C | -10~60°C | -10~310°C |
