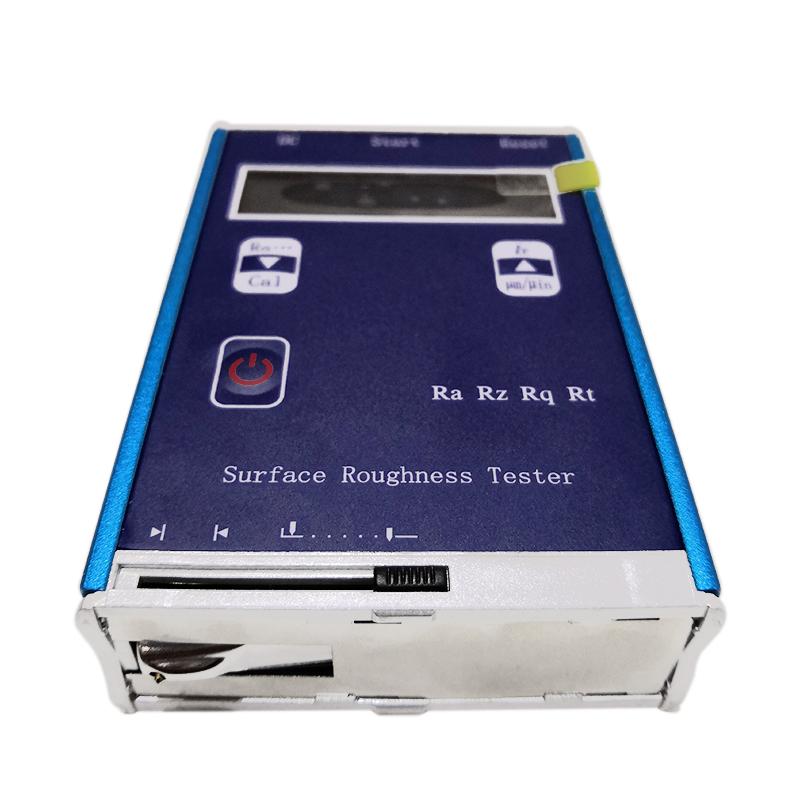

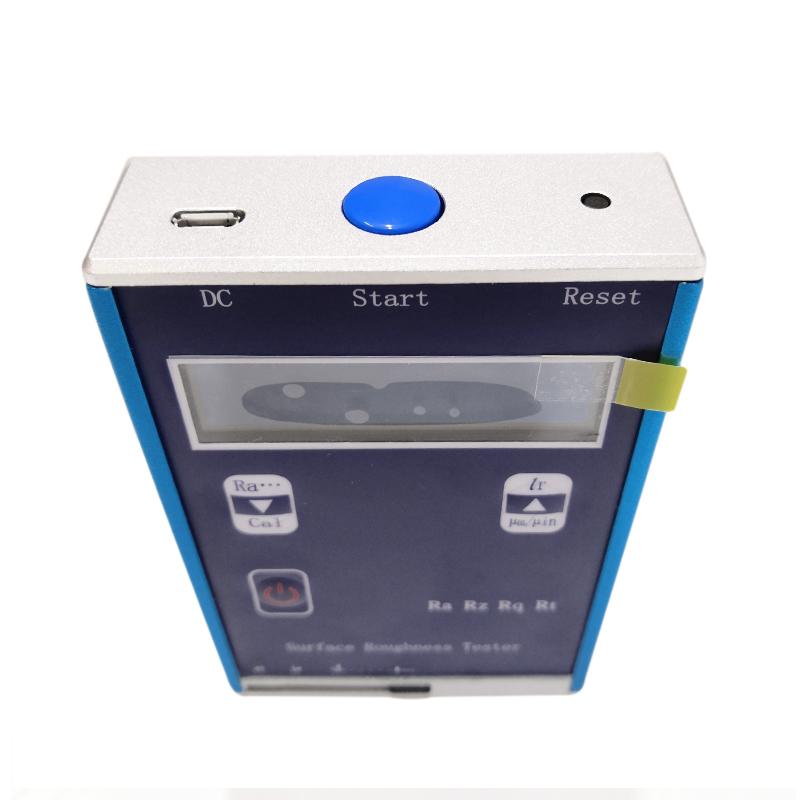

KAIRDA NDT110B pocket surface roughness Tester

NDT110B

Pocket surface roughness Tester

Digital display, measurement Ra, Rz, Rq, Rt, error of indication ≤ +/- 15%, indication variability < 12%, in line with GB/T 3505-2000 and GB/T 6062-2002

Introduction

The parameters given by the Pocket Surface Roughness Meter NDT110B conform to GB/T 3505-2000 "Geometric Technical Specifications for Product Geometric Surface Structure Profile Method Surface Structure Terms, Definitions and Parameters" and GB/T 6062-2002 "Product Geometric Quantity Technology Nominal characteristics of contact (stylus) type instruments by specification (GPS) surface structure profiling method".

Application

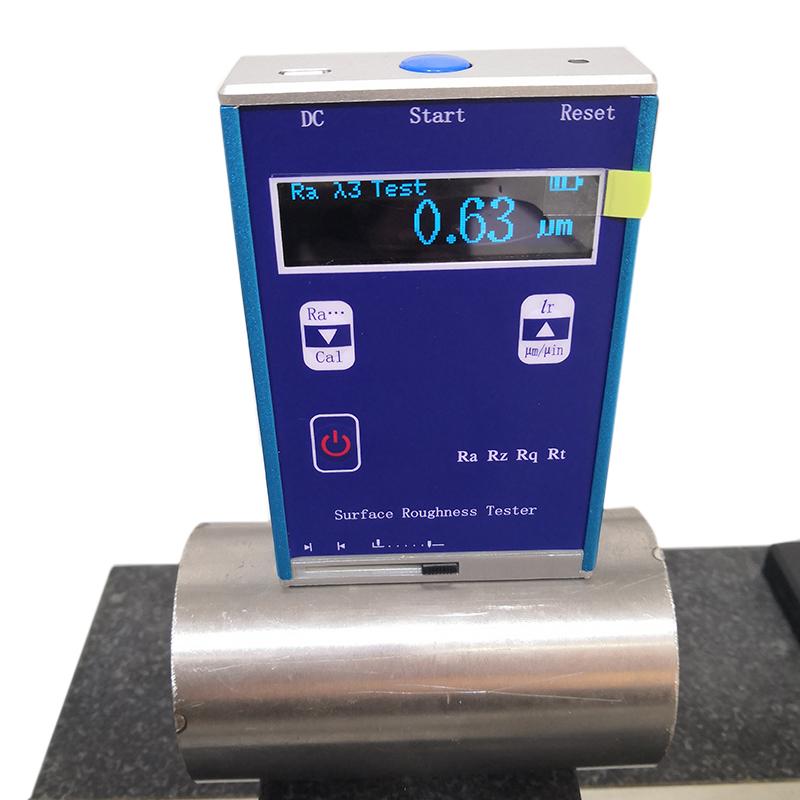

The detection of surface roughness of metal and non-metallic parts to be tested is suitable for a variety of machined parts, machining manufacturing, testing, commodity inspection and other departments, especially for on-site inspection of large workpieces and production lines, as well as testing, measurement, commodity inspection The out-of-service verification of other departments will not cause damage to the workpiece. It can measure planes, outer circular surfaces and conical surfaces with a diameter greater than 20mm (empirical value), and grooves with a length and width greater than 80×30mm.

Unique

After strict temperature and humidity tests, it is suitable for high-temperature and high-humidity Operating Environments, especially in southern humid climates.

Features

• 2 kinds (Ra, Rz) or 4 kinds of measurement parameters Ra, Rz, Rt, Rq can be selected;

• The calibration sample block is made of optical glass substrate, which is identified by the National Metrology Institute, with high precision, not easy to scratch, and long service life;

• With calibration function, easy to operate;

• Widely used in the production site of metal and non-metal processing surfaces and the detection of out-of-home identification;

• High-speed DSP processor is used for data processing and calculation, with fast speed and higher precision;

• Optional sampling length 0.25, 0.80, 2.50;

• Dot matrix LED liquid crystal display, high brightness, no Viewing Angle, wide temperature, suitable for various occasions;

• The automatic shutdown function and low power consumption hardware and software design make the instrument work for a long time;

• Two charging methods, special charger or computer USB port charging, can work while charging, convenient and fast;

• The sensor probe has a protective door, which effectively protects the sensor probe and ensures the accuracy of the measurement;

• The shape is designed with drawn aluminum mold, which is strong and durable, and has remarkable anti-electromagnetic interference ability, which is in line with the new design trend of today.

Packing list：Host X 1, multi-reticle calibrated sample block X1, bracket X1, charger X1, data cable X1, manual X1, certificate X1, warranty card X1, instrument special case X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
