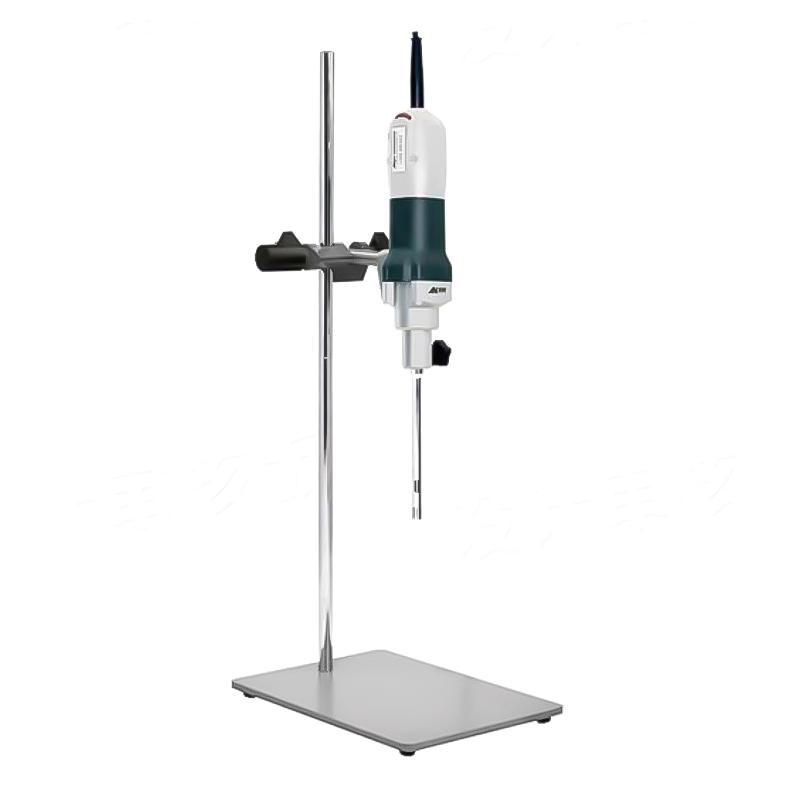

ANGNI AD18 High Shear Dispersion Mulser Processing capacity 80~5000ml
SE
AD18(24G)
AN AD18(24G) High Speed Dispersion MulserSPEC
AN AD18(24G) High Speed Dispersion MulserDetails
AN AD18(24G) High Speed Dispersion MulserPacking list
- SKU
- NB029489
- Rated Voltage
- AC220V
- Rated Frequency
- 50/60 Hz
- Input Power
- 710W
- output power
- 430W
- Rated torque
- 12.1 N.cm
- Operating Mode
- S1 (continuous)
- Operation control mode
- Speed control turntable
- Speed range
- 13000~34000rpm
- Speed regulation mode
- 6th gear
- Restart protection function
- Yes
- Approved torque
- 12.0 N.cm
- Work head material
- SS 316L stainless steel
- Adapt work head
- 8G；10G ；12G ；18G；24G(选购)
- Ambient Temperature
- ≤40℃
- Allowable Relative Humidity
- ≤80%
- Dimensions
- 215*310*720mm
- Machine Weight
- 8kg
- Work head specification
- 24G
- Processing Capacity
- 80~5000mL
- Max. Processing Viscosity
- 5000cp
- Rotor maximum linear velocity
- 18m/s
- Maximum immersion liquid height
- 165mm
- Work head specification
- 24mm
- Working head length
- 245mm
- Operating temperature(MAX)
- 120℃
- Work head material
- SS 316L
- Bearing material
- PTFE
- Minimum immersion liquid height
- 50mm
Introduction
Ani AD18 high-speed dispersing and emulsifying machine is driven by a miniature high-power high-speed motor imported from Germany. It is suitable for stirring and mixing low to medium and high viscosity liquids in the laboratory, dispersing homogeneous granular materials in liquid media, and breaking tissue cells. The machine is composed of a high-speed motor, a dispersing and homogenizing working head and a machine base. The driving host is made of high-quality engineering plastic and die-casting aluminum alloy as the body, and the running state is stable; the working head is made of high-quality stainless steel, and the experimental application area is wide; the adjustment and control of the operating speed can meet the need to correct the operating speed during the experiment to ensure the effectiveness of the experimental operation. control.
Functional Structure Diagram
Working head parts diagram
Applications
Ani AD18 high-speed dispersing and emulsifying machine is suitable for tissue dispersion in the field of biotechnology, sample preparation in the medical field, enzyme treatment in the food industry, and in the pharmaceutical industry, cosmetics industry, paint industry and petrochemical industry, etc., liquid and liquid, liquid and solid Phase, viscosity lower than 0.2Pa.s, temperature lower than 80 ℃ liquid material experiments. Under the triple action of extrusion in the feed liquid, strong impact and pressure loss expansion, the experimental medium can be refined and mixed more evenly to prevent or reduce delamination with the feed liquid. Such as: (homogenate of dairy products, beverages, cosmetics, pharmaceuticals and other products, soft and broken tissue cells).
Dispersed homogeneous working head
| Work head G | Processing capacity | Line speed | stator |
| AD18(8G) | 15～50ml | 10m/s | Φ8mm |
| AD18(10G) | 20～100ml | 11m/s | Φ10mm |
| AD18(12G) | 30～800ml | 12m/s | Φ12mm |
| AD18(18G) | 50～1500ml | 15m/s | Φ18mm |
| AD18(24G) | 80～5000ml | 18m/s | Φ24mm |
| Other parameters | |||
| Suitable for maximum viscosity | 5000mPa.s | ||
| Maximum operating temperature | 120°C | ||
| Working head material | SS 316L stainless steel | ||
| Working head bearing material | PTFE | ||
