Shanghai ANGNI AD145S-P Handheld Ultrafine Homogenizer, Work Head 6G/10G
SE
AD145S-P(6G/10G)
AN AD145S-P(6G/10G) Ultrafine homogenizerSPEC
AN AD145S-P(6G/10G) Ultrafine homogenizerDetails
AN AD145S-P(6G/10G) Ultrafine homogenizerPacking list
- SKU
- NB029490
- Rated Voltage
- AC 220V
- Rated Frequency
- 50/60 Hz
- Input Power
- 160W
- output power
- 120W
- Rated torque
- 3.95 N.cm
- Operating Mode
- S1 (continuous)
- Operation control mode
- Speed control turntable
- Speed range
- 5000~35000rpm
- Speed regulation mode
- 6th gear
- Approved torque
- 3.0 N.cm
- Work head material
- SS 316L stainless steel
- Ambient Temperature
- ≤40℃
- Allowable Relative Humidity
- ≤80%
- Dimensions
- 380*80*50mm
- Machine Weight
- 0.85kg
- Work head specification
- 6G/10G
- Processing Capacity
- 0.2~10mL(6G)，30~150mL(10G)
- Max. Processing Viscosity
- 200cp(6G)，100cp(10G)
- Rotor maximum linear velocity
- 8m/s（6G）；13m/s（10G）
- Maximum immersion liquid height
- 60mm（6G）；110mm（10G）
- Work head specification
- 6mm（6G）；10mm（10G）
- Working head length
- 125mm（6G）；178mm（10G）
- Operating temperature(MAX)
- 120℃
- Work head material
- SS 316
- Bearing material
- PTFE
- Minimum immersion liquid height
- 18mm（6G）；20mm（10G）
product description
AD145S-P ultrafine homogenizer is suitable for liquid/liquid mixing, emulsification, homogenization, liquid/solid powder dispersion, tissue cell smashing, pulping and other experiments. It is specially designed for micro-experimental media treatment. Products are used in experimental fields such as biopharmaceuticals, gene research, tissue fragmentation, cell pulpization, pathological analysis, dairy homogenization, and polymerization reactions. The product design is novel, the process is professional, and it has the characteristics of large output power, high operating speed, and convenient experimental operation. Its unique function of stepless speed regulation to control the running state enables the equipment to arbitrarily choose the experimental running speed within the speed range, which provides a guarantee for the experiment. The unique structure of the ultra-fine homogenate working head ensures that the rotor of the working head has a high linear speed under the high-speed drive of the motor, which produces strong liquid shear force and severe high-frequency mechanical effect, which makes the experimental materials under the action of huge centrifugal force. The experimental medium withstands shearing, tearing and mixing up to tens of thousands of times per minute. Its distinctive features and functions make it a desirable equipment for scientific research, product development, quality control and production process applications in medical institutions, biology, sanitation and epidemic prevention, cosmetics, food processing, colleges and universities, etc.
Product Structure

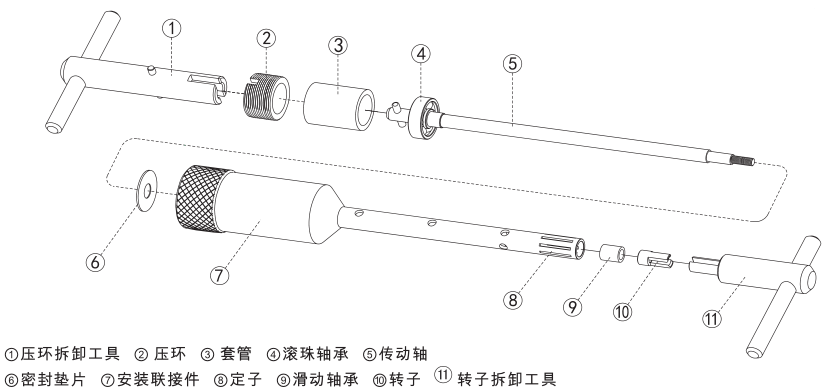

Working head parts structure diagram
Homogenizer working head selection table
| Specification | Processing capacity | maximum viscosity | line speed | Minimum/Maximum Immersion Liquid Length | Working head length | maximum temperature | contact material material |
| 6G | 0.2-10ml | 100cP | 8 m/s | 18/60mm | 125mm | 120°C | SS316L, PTFE |
| 8G | 1-60 ml | 100cP | 10 m/s | 20/85mm | 148mm | 120°C | SS316L, PTFE |
| 10G | 30-150ml | 200cP | 13 m/s | 20/110mm | 178mm | 120°C | SS316L, PTFE |
