DAKOTA ZX-5DL Ultrasonic Thickness Gauge

DAKOTA ZX-5DL Ultrasonic Thickness Gauge Measurement range 1.0~152mm (steel), Probe Frequency 5MHz, Probe diameter φ 6.3mm, ZX-5DL Ultrasonic Thickness Gauge measurement 100 points per second, can capture the thinnest value during scanning.
Model：
Contact
Details SPEC CAT
Similar products

DAKOTA ZX-5DL Ultrasonic Thickness GaugeSPEC

DAKOTA ZX-5DL Ultrasonic Thickness GaugeDetails

DAKOTA ZX-5DL Ultrasonic Thickness GaugePacking list

SKU
NB029547
Measurement range
1.0~152Mm (steel)
Probe Frequency
5MHz
Probe model
PT-102-2000 Standard Probe
Probe diameter
Φ6.3mm
Probe line length
1.2m
Display resolution
0.01mm/0.001IN
Display
Large screen multi-function low temperature LCD display
backlight function
Off/normally open/automatic three Operating Modes, luminance has low/medium/high three, gear adjustable
scanning method
100 point measurements per second to capture the thinnest values during scanning
Difference Mode
Displays the difference between the Measured value and the preset value.
Alarm function
If the Measured value is less than the minimum allowable value input by the user/higher than the maximum allowable value input by the user, the red light is on and there is an alarm sound prompt of BB, and the green light is on to indicate that the measurement is within the allowable range.
VX Speed of sound
Can measure the Speed of sound
unit system
mm/inch
Speed of sound
305~18542m/s
zero
Manual or automatic zeroing
Gain range
40~52dB (step spacing 3dB)
Pulse, repeability Frequency
200Hz
Display refresh rate
10Hz
keyboard
9-Key waterproof, oil-resistant keyboard
Environmental temperature
-30℃~75℃
Host size
63.5*131.3*31.5mm
Weight
312G (including battery)
Applicable standard
NIST & MIL-STD-4562A
Protection level
IP65
Environmental temperature
-30~75℃
Power Supply
2 AA batteries, continuous use time up to 45 hours (the use time of different battery types will vary). When the battery power is insufficient, the monitor will display a low battery sign. Automatic shutdown function (it will automatically shut down after 5 minutes without any operation). USB interface Power Supply function
Data storage
The built-in 32M memory card can store 10,000 measurement data (divided into 40 storage files, each storage file can store 250 data). The storage file format is a universal .csv format, no special data communication software is required.
ZX-5DL
Ultrasonic Thickness Gauge

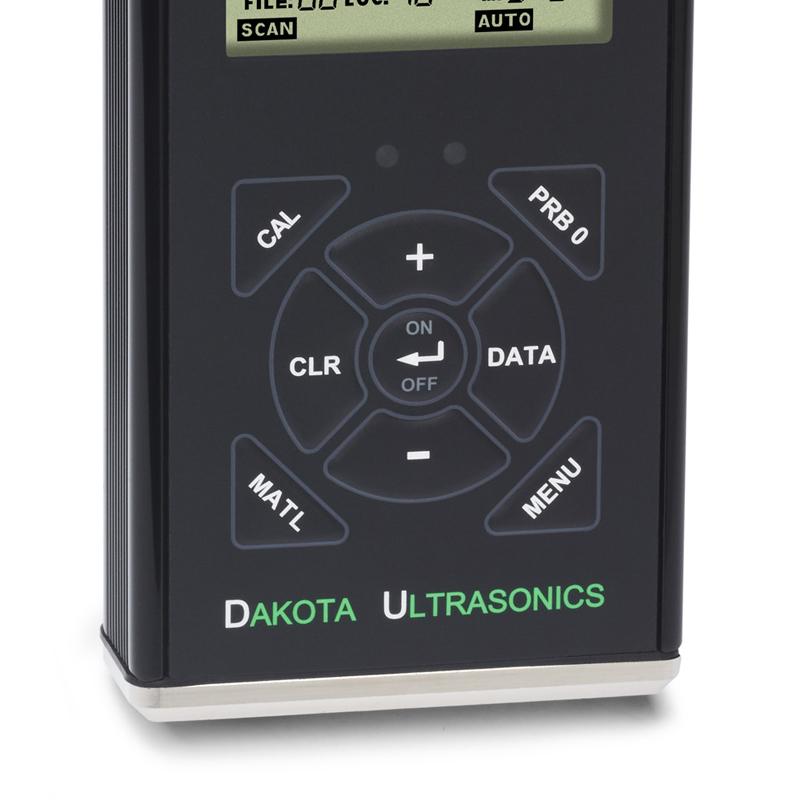

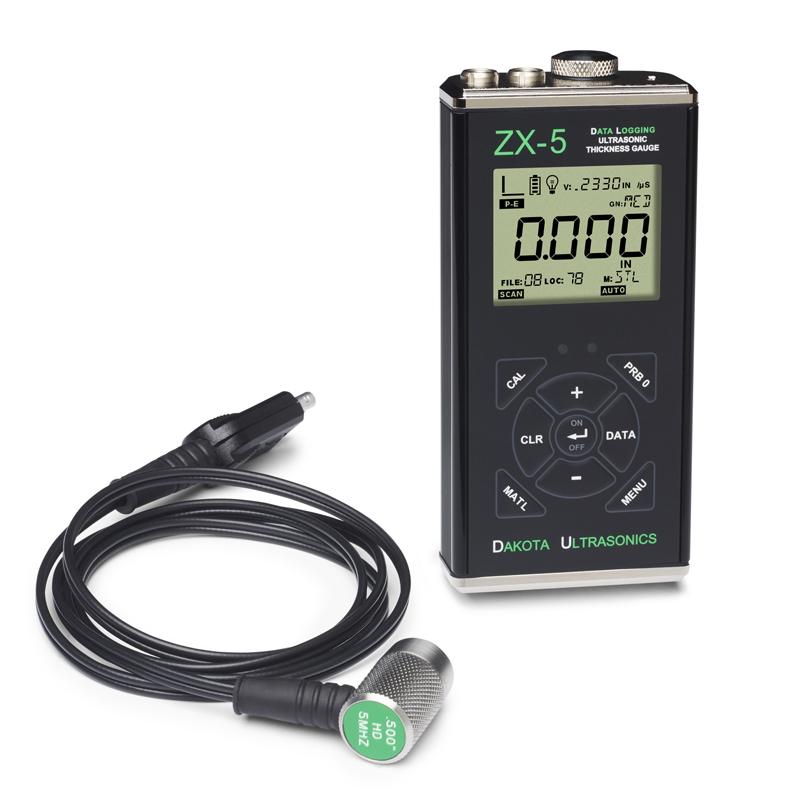

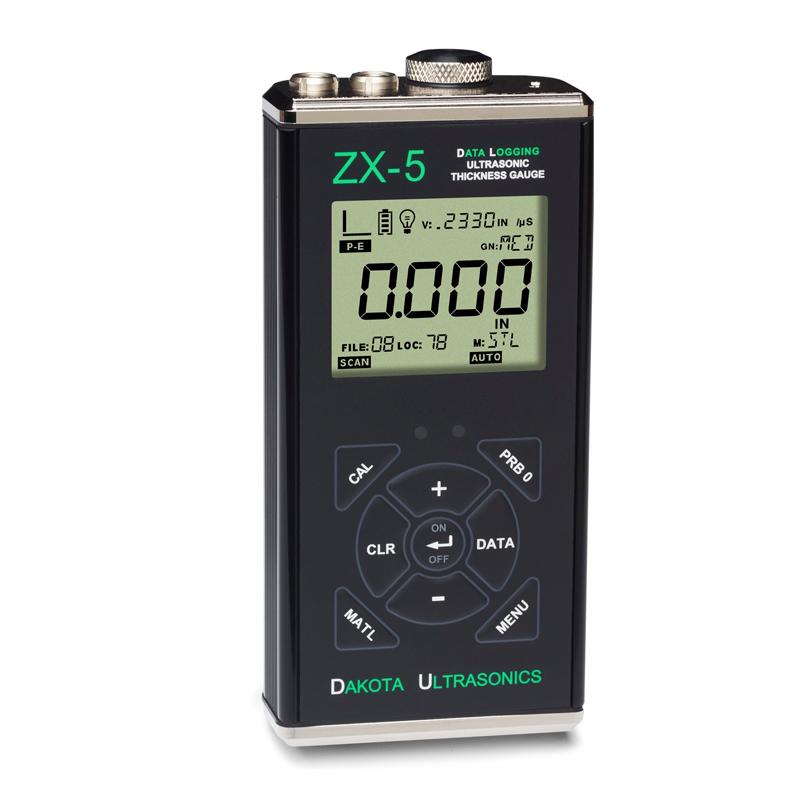

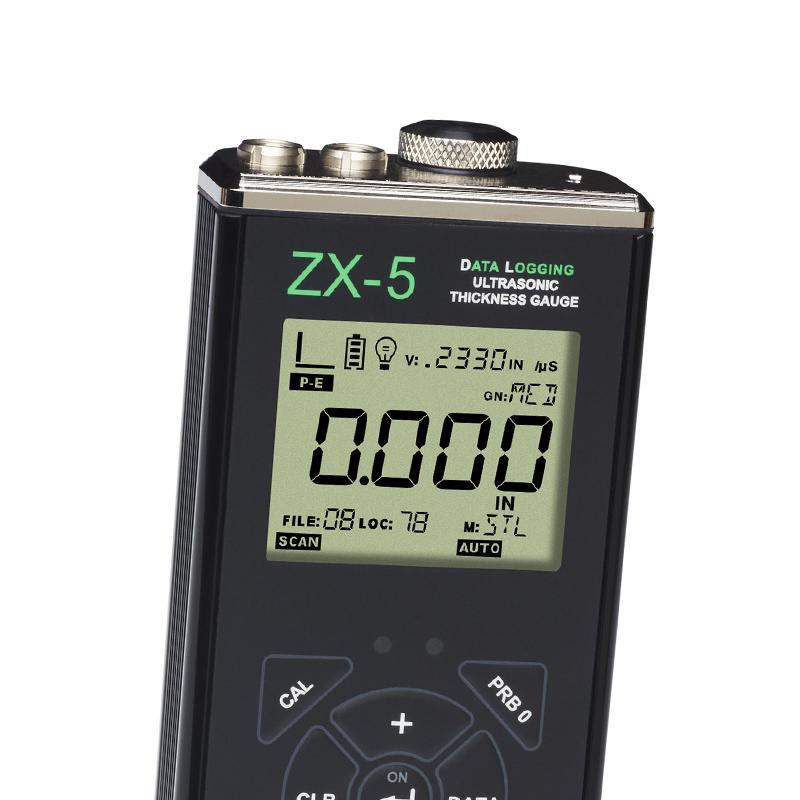

DAKOTA ZX-5DL Ultrasonic Thickness Gauge Picture

The ZX Series Thickness Gauges provide a performance solution that can withstand the harshest industrial conditions. The features included in the ZX Series provide high-quality tools that meet or exceed the requirements of your application

Features

  • Technical support: 120MHz FPGA timing.

  • 150 volt square wave pulse generator.

  • Pulse-echo measurements.

  • Adjustable gain (40-52dB) in 3dB steps (vlow, low, med, high, vhi).

  • You can choose between manual or automatic zeroing.

  • Dual-element sensor (1-10MHz option)

  • Low-temperature custom LCD display (-22 F/-30C)

  • USB-C connection (ZX-5 series).

  • CDC compatible serial via USB.Optional serial RS232 or Bluetooth module (ZX-5).

  • Data storage: 32 megabit flash memory (ZX-5 DL).

  • IP65 degree of protection.

Probes are optional

    Model  frequency Element diameterDiameter of the wear surface Measuring range illustrate
   PT-102-2000   5.0MHz   6.35mm   9.53mm   1.0～152mm  Standard probes
   PT-101-2000   5.0MHz   4.76mm   6.35mm   1.0～50mm  Small diameter probes
   PT-104-0000   1.0MHz   12.7mm   15.88mm   3.8~50.8mm(Medium Cast Iron)  Cast iron probe
   PT-102-3300   7.5MHz   6.35mm   9.53mm   0.63～152mm  Ultra-thin probe
   PT-104-2000   5.0MHz   12.7mm   15.88mm   1.27～508mm  Extra-thick probe
   PT-042-2000   5.0MHz   6.35mm   9.53mm   1.0～152mm  Standard high-temperature probe up to 340°C
   PT-044-2000   5.0MHz   12.7mm   15.88mm   1.27～508mm  Ultra-thick high-temperature probe up to 340°C
   PT-212-2001   5.0MHz   6.35mm   9.53mm   1.0～152mm  Ultra-high temperature probe up to 480°C
   PT-214-2001   5.0MHz   12.7mm   15.88mm   1.27～508mm  Ultra-thick ultra-high temperature probe up to 480°C


FAQ
QWhat is the minimum thickness of this ZX-5DL Ultrasonic Thickness Gauge?
A ZX-5DL Ultrasonic Thickness Gauge limit can be measured as low as 1mm thickness.
