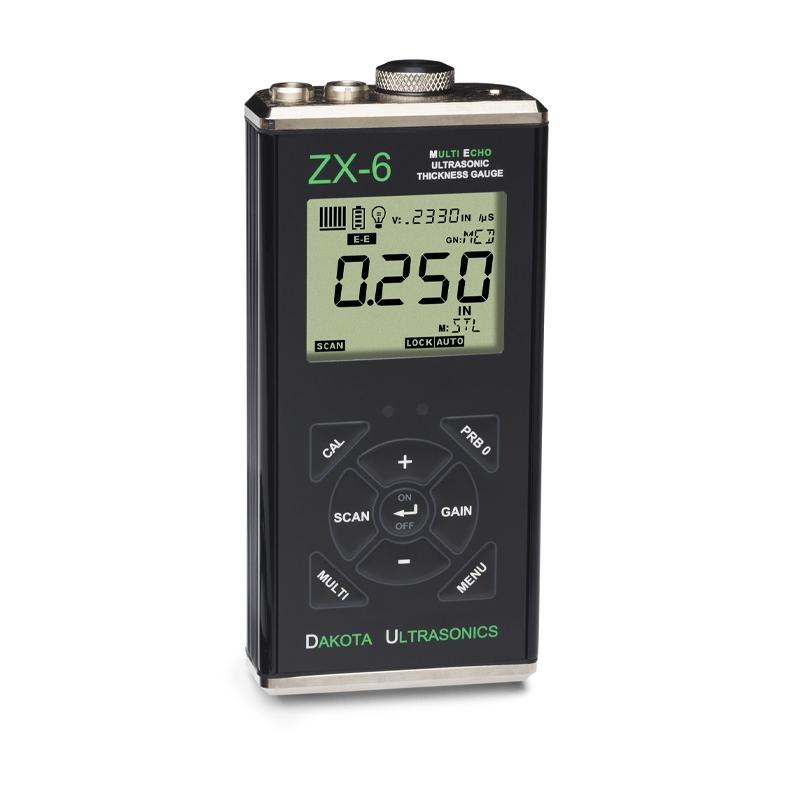

DAKOTA ZX-6 Ultrasonic Thickness Gauge with PT-102-2700 Probe

ZX-6

Ultrasonic Thickness Gauge

DAKOTA CORPORATION, USA ZX-6 series ultrasonic Thickness Gauges are adoptedEcho-to-echo measurement mode that provides coating penetration – measures the net thickness of the material without removing the paint when there is paint on the surface of the object to be measured.

Features

• 120MHz FPGA sequential circuit design 150V square wave pulser

• Pulse-echo measurement mode and echo-echo (through coating) measurement mode

• 40~52dB adjustable gain in 3dB steps, selectable ultra-low, low, medium, high, ultra-high time-dependent gain (TDG)

• Manual or automatic probe zeroing can be selected

• Dual Element Transducer (1~10MHz Optional)

• Low temperature custom LCD display (-30°C)

• USB Type-C data interface

• CDC-compatible interface with optional serial RS232 or Bluetooth module (ZX-6)

• 32M flash internal data memory (ZX-6DL) IP65 rating

measurement

• Pulse-echo mode measurement range: 0.63~914.4mm(steel)

• Echo-echo mode measurement range: 2.54~152mm

• Coating range 0.0254~1.905mm Depends on material, probe frequency and diameter Units: Imperial and Metric

• Resolution: 0.01mm

• Sound velocity range: 305~18542m/s pulse repetition rate: 200Hz

• Display refresh rate: 10Hz

• Gain: 40~52dB, 3dB step Time-Dependent Gain (TDG):

• Depending on the probe selected and frequency, it is available in pulse-echo and echo-echo modes

probe

• Frequency range: 1~10MHz

• Dual element transducers

• LEMO Interface, 1.2 m Probe Cable Probes can be customized for special applications

• Probe Zeroing: Manual and Automatic Zeroing Probe Type: Probe frequency and diameter can be selected to improve linearity

• High-speed scan mode: Displays the minimum reading during the scan at 100Hz Difference mode: Displays the difference between the measured value and the entered nominal value

• Alarm mode: upper and lower limit sound and light alarm Sound velocity measurement mode: used for the measurement of nodularity

display

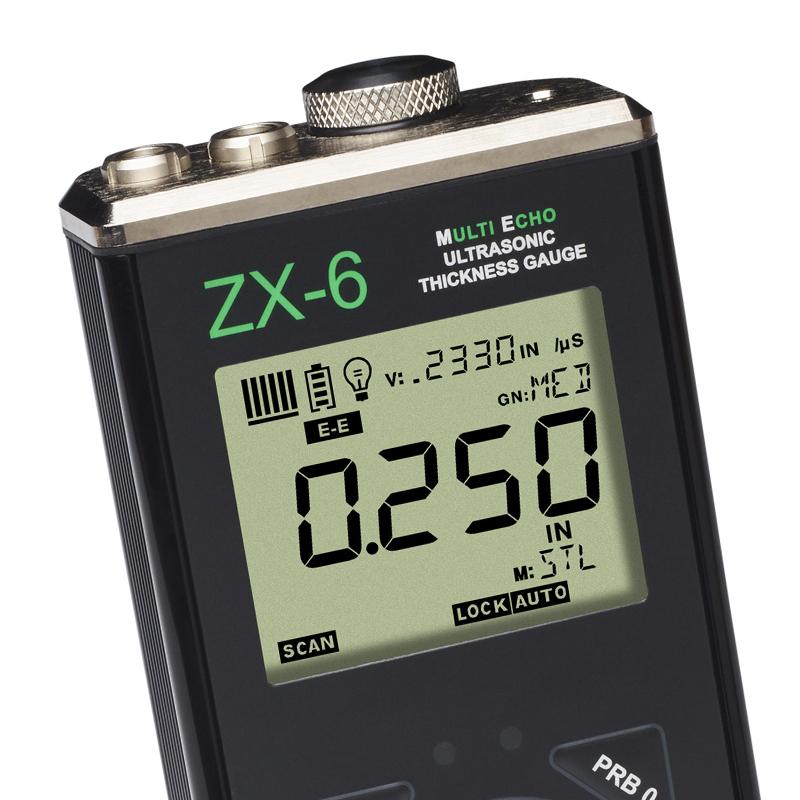

• Multi-function 7-segment 4-and-a-half-digit LCD with a digital height of 12.7mm

• Two 3.2mm high 14-segment display areas and one 7-segment display area for information and values

• Additional icons indicate functions and modes Backlight selectable on/off/auto, three degrees (low, medium, high) options

• Reading stability/repeatability indication of the bar

keyboard

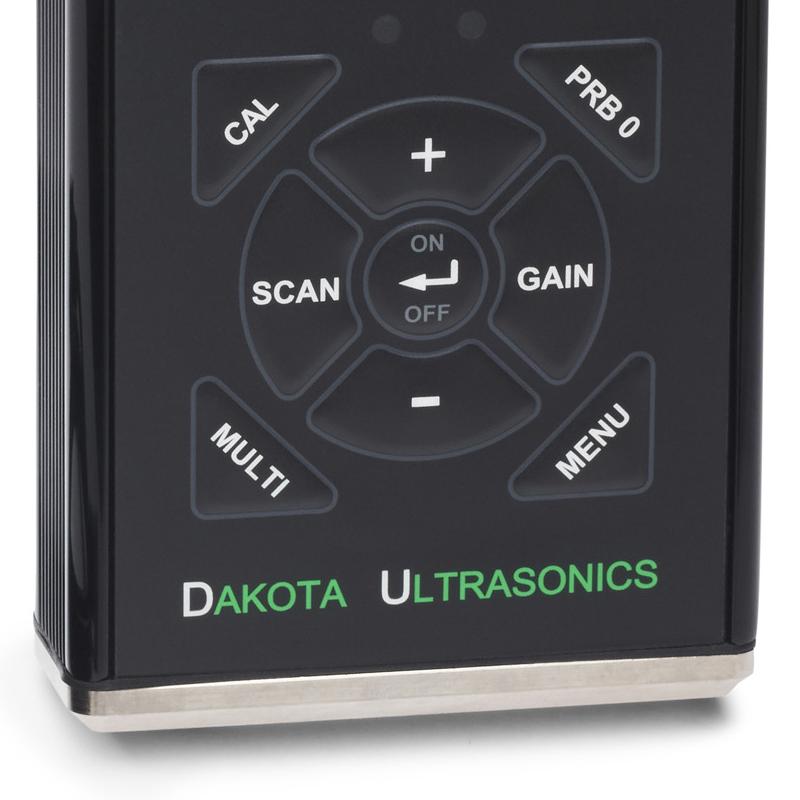

• Waterproof and oil-repellent sealed key film Nine haptic feedback buttons

power supply

• Two gauge 5 alkaline batteries are standard, optional nickel-cadmium batteries or lithium batteries, and the battery is low indicated

• Automatically shuts down the Type-C power supply after five minutes of no operation

storage

• Stores 40 groups of 250 data for a total of 10,000 data (ZX-6DL)

enclosure

• Extruded aluminum shell, bottom cover is nickel plate aluminum, environmentally friendly packaging

Probe model

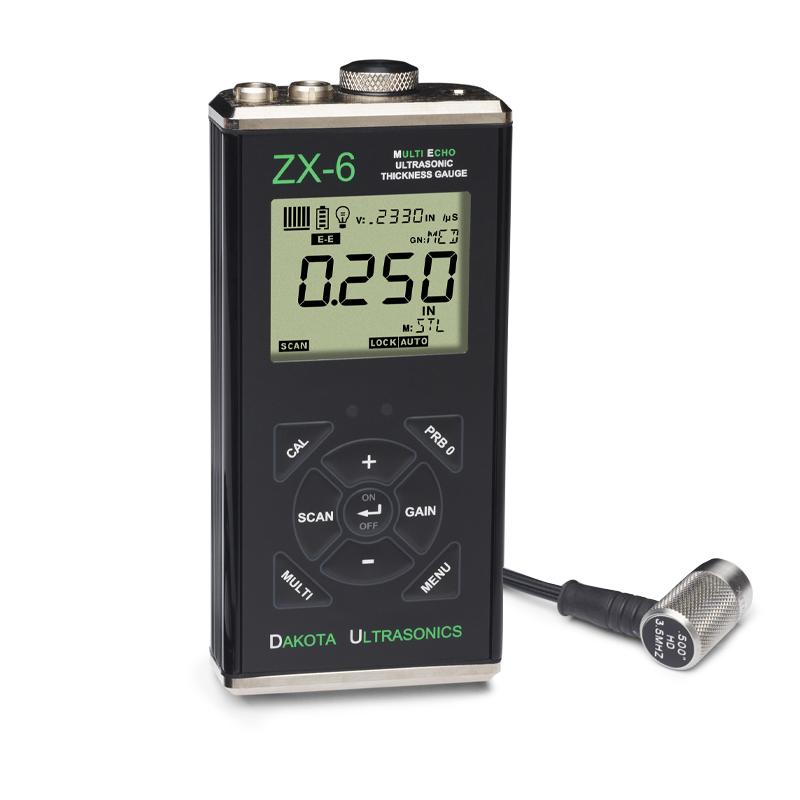

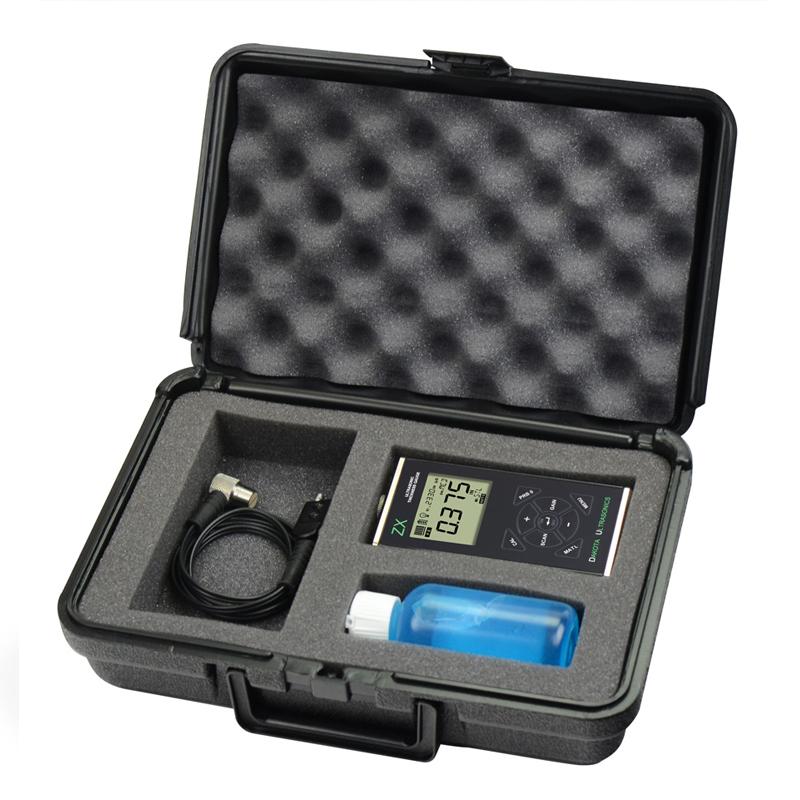

Packing list：host X1, PT-102-2700 probe, coupling agent X1, No. 5 battery X2, factory certificate x1, Chinese and English instructions x1, instrument case x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
