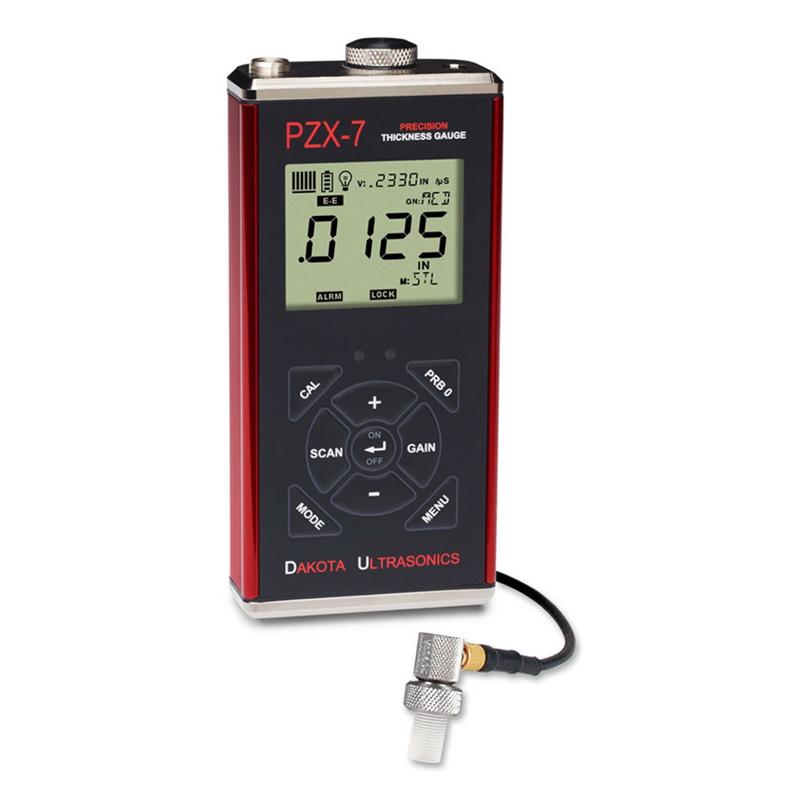

DAKOTA PZX-7 High Precision Ultrasonic Thickness Gauge with PT-402-5507 Probe

PZX-7 High Precision Ultrasonic Thickness Gauge Standard PT-402-5507 Probe, Measurement range 0.15~ 25.4mm (steel), Probe Frequency 15MHz, Probe diameter φ 6.35mm, Upper and lower limit sound and light alarm, Protection level IP65
Model：
Contact
Details SPEC CAT OI

DAKOTA PZX-7 High Precision Ultrasonic Thickness GaugeSPEC

DAKOTA PZX-7 High Precision Ultrasonic Thickness GaugeDetails

DAKOTA PZX-7 High Precision Ultrasonic Thickness GaugePacking list

SKU
NB029578
Measurement range
0.15~ 25.4Mm (steel)
Probe Frequency
15MHz
Probe model
PT-402-5507 Standard Delay Block Probe
Probe diameter
Φ6.35mm
Probe line length
1.2m
Display resolution
0.01/0.001mm
Display
Multifunctional 7-segment 4-bit semi-digital liquid crystal display
backlight function
Off/normally open/automatic three Operating Modes, luminance has low/medium/high three, gear adjustable
scanning method
Displays the minimum reading during scanning with 100 Hz Scanning Frequency
Difference Mode
Displays the difference between the Measured value and the preset value.
Alarm function
Upper and lower limit sound and light alarm
VX Speed of sound
For spheroidization measurement
unit system
mm/inch
Speed of sound
305~18542m/s
zero
Manual or automatic zeroing
Gain range
40~52dB (step spacing 3dB)
Pulse, repeability Frequency
200Hz
Display refresh rate
10Hz
keyboard
9-Key waterproof, oil-resistant keyboard
Environmental temperature
-30℃~75℃
Host size
63.5*131.3*31.5mm
Weight
312G (including battery)
Protection level
IP65
Environmental temperature
-30~75℃
Power Supply
2 AA alkaline batteries
PZX-7
High Precision Ultrasonic Thickness Gauge
DAKOTA PZX-7 High Precision Ultrasonic Thickness Gauge with PT-402-5507 Probe Picture

The variety of features offered by the ZX-7 and PZX-7DL allows users to choose high-quality tools that meet or exceed their specific application needs. In echo mode, you can measure the thickness of a material without removing paint or coatings.

The ZX-7 DL series is equipped with a variety of measurement modes to meet the needs of a wide range of potential applications. They can use high- and low-frequency sensors with a variety of diameter options. Both models have USB-C connectivity (with and without data storage), as well as serial connectivity via USB-C using the CDC class. Optional RS232 and Bluetooth modules are available to interface with data collectors and custom applications.

Features

120MHz FPGA sequential circuit design

100V spike generator

Multiple measurement modes: pulse-echo mode, echo-echo mode, interface-echo mode, plastic mode

Automatic Time-Correlated Gain (TDG), manual priority

Single Element Delay Line Transducer and Contact Probe (5~20MHz)

Low temperature custom LCD display (-30°C)

CDC-compatible interface with optional serial RS232 or Bluetooth module

USB TypeC data port

32M Flash Internal Data Memory (PZX-7DL)

IP65 rating


FAQ
QThe thickness test range of the glass tube is 500 microns-5mm. What measurement instruments are there?
A This one suits you.
QCan stainless steel be measured?
A Sure.
QHow thick can this PZX-7 High Precision Ultrasonic Thickness Gauge be measured?
A The PZX-7 Ultrasonic Thickness Gauge can measure a thickness of 0.15mm.
