Hypertherm HT-300N Electronic Digital Display Spring Tension and Compression Tester

SE
Hypertherm electronic digital spring tensile and compression testing machine HT-300N Measured value of 300N, the load Graduation is 0.05N, the displacement scale stroke is 100mm, HT-300N spring tensile and compression testing machine is suitable for tensile and compression springs under a certain working length of the working load test.
Model：
Certificate
Contact
Details SPEC CAT

HBO HT-300N Spring tension and compression testing machineSPEC

HBO HT-300N Spring tension and compression testing machineDetails

HBO HT-300N Spring tension and compression testing machinePacking list

SKU
NB029630
Measured value
300N
Load Graduation
0.05N
Displacement scale stroke
100mm
platen diameter
Ф78.5mm
Measurable maximum free length of spring
100mm
effective travel
≤125mm
Maximum pressure space
≤245mm
Maximum space for pulling
155mm
Dimension
300*225*610mm
Net Weight
18kg
Precision
±0.5%
HT-300N
Spring tension and compression testing machine

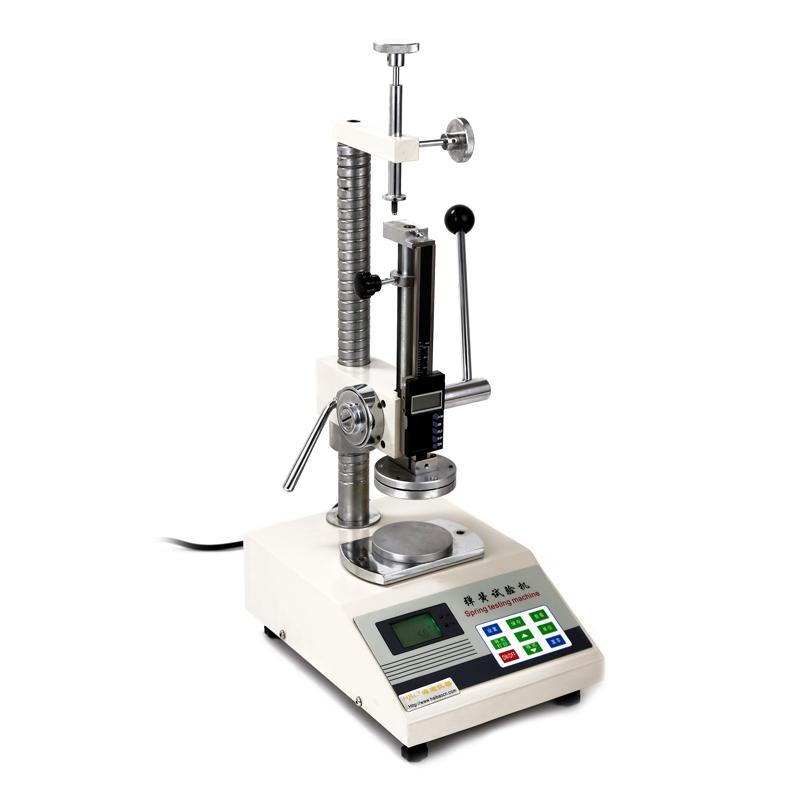

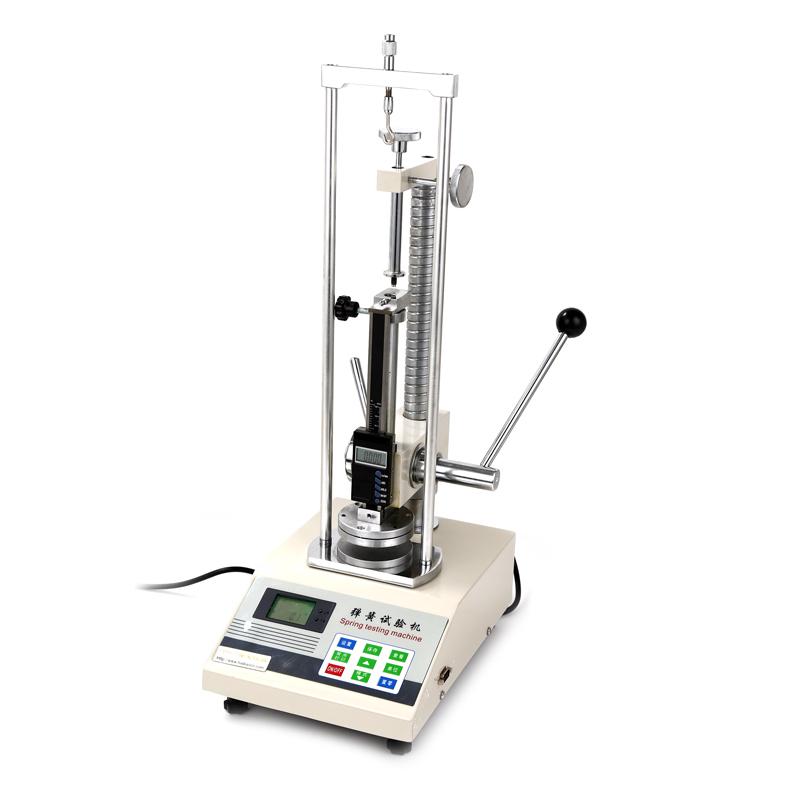

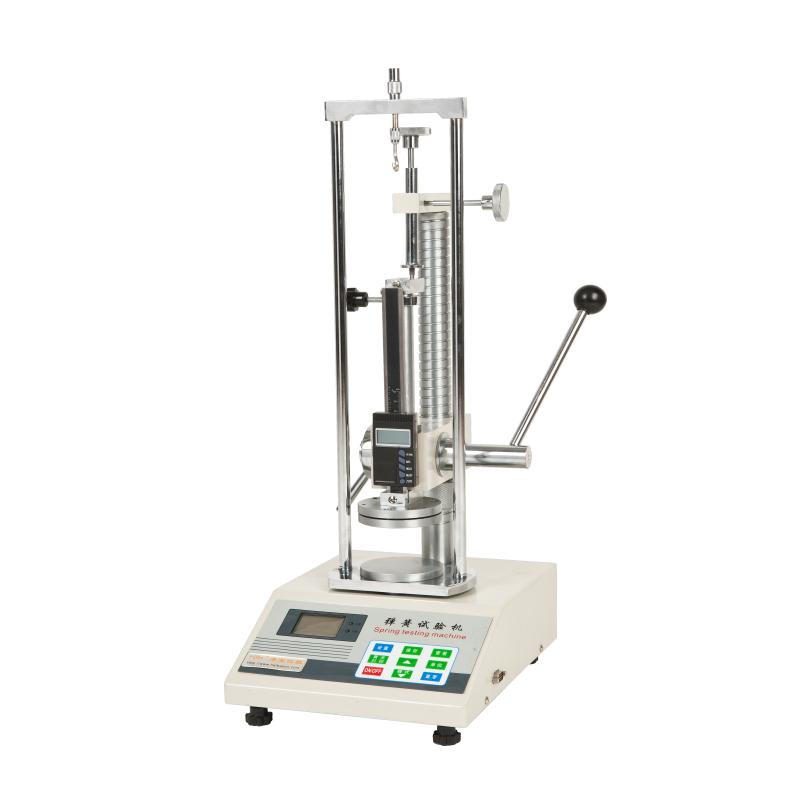

Hypertherm HT-300N Electronic Digital Display Spring Tension and Compression Tester Picture

Introduction

HT series electronic digital display spring tension and compression testing machine is a special instrument for testing the deformation and load relationship characteristics of tensile and compression springs. It is suitable for testing the working load of a certain working length of a tensile and compression spring.

Features

◆ It has the function of holding the first peak during the test

◆ LCD screen, blue backlight

◆ High precision, high resolution, high sampling speed

◆ The upper and lower limit alarm values can be set, sound and light alarm, level signal output (can be set high-low)

◆ Store 200 sets of test data, and automatically calculate the average, maximum and minimum values of the stored data

◆ Three units of N, kgf, lbf are automatically converted

◆Peak hold, holding time can be set (0~99 seconds)

◆ Automatic shutdown without operation (time can be set freely for 0-99 minutes)

◆ Serial communication (can be easily configured for USB communication), computer display force value curve, force value table and other display methods and data processing: such asPrinting, statistical analysis, etc.

◆ Micro printers can be installed optionally
