FANGRUI LV-SSR digital display Viscometer for a small number of samples

SE
FANGRUI Digital Display Viscometer LV-SSR is an experimental Rotational Viscometer dedicated to small sample testing. It is equipped with four rotors of 18 #, 25 #, 31 #and 34 #. The sample volume only needs 7~ 11ml. The LV-SSR digital display Viscometer has 18 different rotational speeds, measurement Viscosity 3~ 200000mPa·s, standard temperature probe interface.
$954.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con OI

FangRui LV-SSR ViscometerSPEC

FangRui LV-SSR ViscometerDetails

FangRui LV-SSR ViscometerPacking list

SKU
NB029658
Display
digital display
Measuring range
3~200000mPa·s
Rotor Specifications
18 #, 25 #, 31 #, 34 #(optional ULR0 rotor)
Rotor speed
0.3/0.6/1.5/3/6/10/12/15/20/25/30/40/50/60/70/80/90/100 A total of 18 kinds
Reproducibility
±1%F.S
Measurement Accuracy
±2%
Capacity
7~11ml
Data Interface
There are two RS232 interfaces, which can connect printers and computers
Dimensions
300*300*450mm
Operating language
Chinese
Temperature probe interface
Standard
Measuringflask depth
About 70mm
Measuringflask outer diameter
28mm
ULR (No. 0 rotor) range
1~1000mPa·s
No. 18 rotor range
3~10000mPa·s
No. 25 rotor range
4.8~ 1.6 million mPa·s
No. 31 rotor range
30~100,000 mPa·s
No. 34 rotor range
600,000~200,000 mPa·s
ULR (No. 0 rotor) sample Volume
21ml
No. 18 rotor sample Volume
7ml
No. 25 rotor sample Volume
9ml
No. 31 rotor sample Volume
10.5ml
No. 34 rotor sample Volume
11ml
LV-SSR
Viscometer

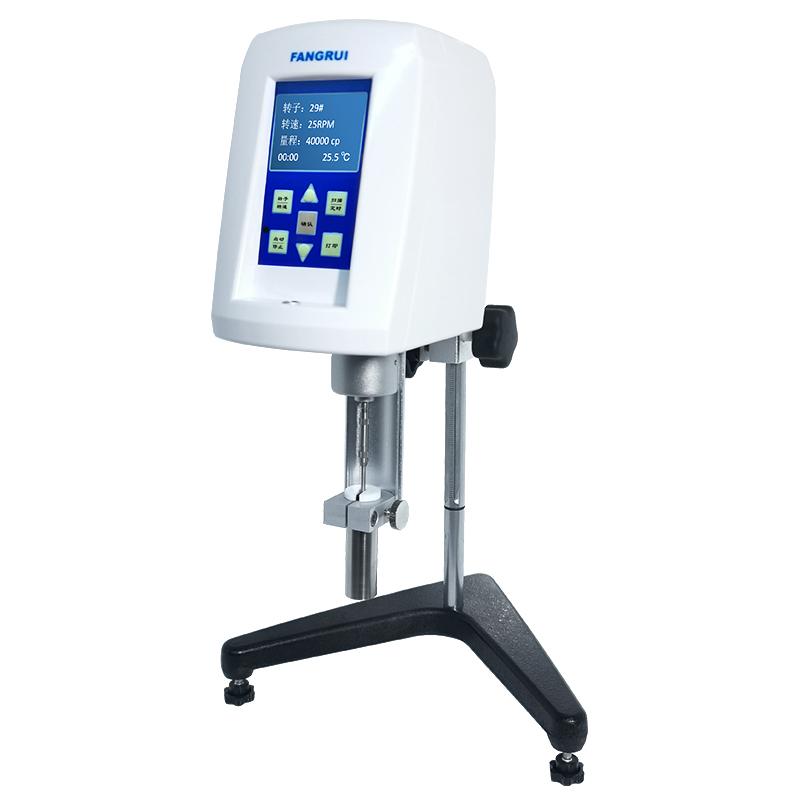

FANGRUI LV-SSR digital display Viscometer for a small number of samples Picture

Introduction

SSR series Digital Rotational Viscometer adopts coaxial cylinder structure, uses a small sample adapter, and requires a very small sample volume for each measurement, only 7ml -13ml (21ml for rotor 0), and can be equipped with a circulating thermostatic water jacket to control the temperature of the measured sample with a thermostatic bath. The operation is very convenient and the measured value is accurate. Ideal for precious, small sample measurements.

Applications

SSR digital viscometer is widely used in the viscosity detection and control of fluids such as greases, paints, coatings, slurries, textiles, foods, adhesives, cosmetics, etc., to meet the viscosity test of a small number of samples.

Features

1. The horizontal bubble is in front, and you can adjust the level while sitting, which is very convenient.

2. There is a timing measurement function.

3. Coaxial cylindrical structure.

4. The measurement accuracy of the data is two decimal places.

5. Convenient and reliable operation.

6. With a small number of sample adapters, the sample volume required for the test is very small.

7. The viscometer comes with two RS232 interfaces, which can be directly connected to the micro thermal printer and computer.

Options

1. Enhanced Ultra Low Viscosity Adapter ULR (No. 0 Rotor)

  • Designed for low viscosity fluid measurements

  • There are two types of jacketed and non-jacketed versions

  • The minimum detection limit is 1cP, depending on the viscometer used

  • Model: Stainless steel material is easy to clean and clean

  • It can withstand the operating temperature range of -40°C-200°C

2. DC0506W type special low-temperature thermostat for viscometer

Comparison of SSR parameters

Instrument modelrotate speedrotorRangeSample size
LV-SSR0.3~10018#，25#，31#，34#1-200,0007~11
RV-SSR0.5~10021#、27#、28#、29#6.4-2M7.8~11.5
HA-SSR12.8~4M
HB-SSR51.2~16M
*Measuring range M=1000000 unit:r/min、mPa·s、ml
Other parameters
Measurement error±2% (Newtonian liquid)
Repeatability±1% (Newtonian liquid)
Output interfaceThere are two RS232 interfaces to connect the printer and the computer
Temperature probe interfaceStandard
Dimensions300×300×450mm


FAQ
QMy sample volume is relatively small. If I choose this Viscometer, I don't need to choose a small number of sample adapters, right?
A Yes, this device is designed for a small number of samples and can only test the sample volume within 7-11ml.
QPaints viscosity tester Coating inks glue viscosity tester, use the viscosity range of 10-10000mpa.s by yourself, and the dosage is about 20g. Is this the product?
A This device meets your needs
QMeasurement inks, viscosity range 10-10000mpa.s, the sample volume is about 20g, which equipment is suitable?
A Recommended LV-SSR
QHow much can this Viscometer measure at a minimum?
A 8-12ml
QFor glue, a small amount of samples. Our test is 25 +/- 0.5 degrees.
A This one suits you.
QThe sample dosage is 15-20ml Viscometer, the sample is the precursor of polymer ceramic fiber, the sample volume is relatively small, the upper and lower viscosity of 15ml is not high, about 40cp-1000cp
A Recommend LV-SSR this model Viscometer
QDo you have a rotational viscometer that can test viscosity with just a small amount of liquid?
A Hello, yes, this Fangrui LV-SSR rotational viscometer is used for testing a small amount of samples, and the measurement sample volume can be 7~ 11ml.
QMeet ASTMD3794 Viscometer
A LV-SSR Viscometer, please refer to it.
