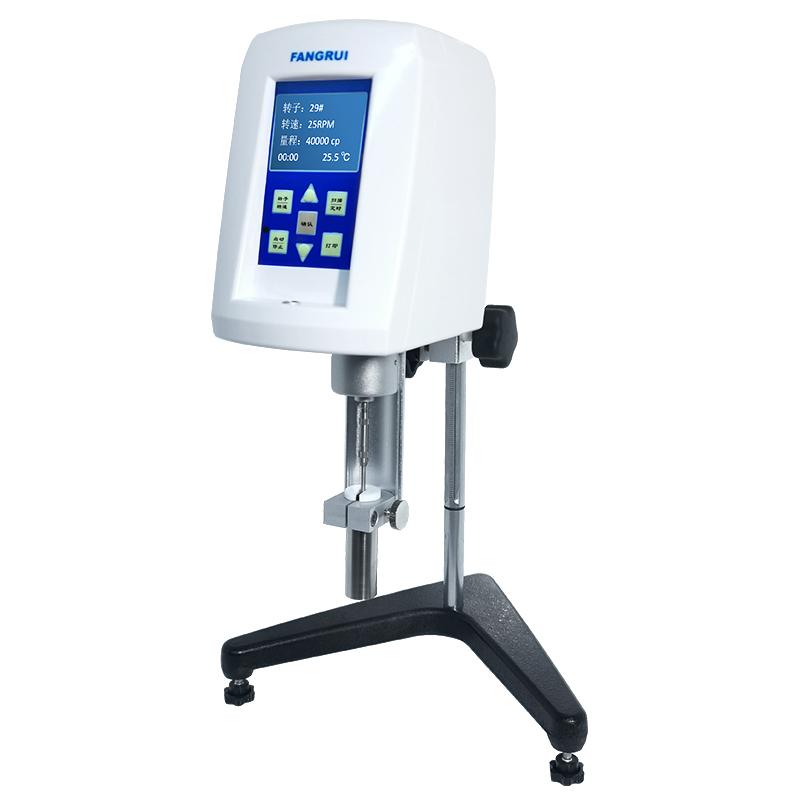

FANGRUI RV-SSR Digital Viscometer for small amounts of samples

RV-SSR

Viscometer

Introduction

The SSR series Digital Rotational Viscometer adopts a coaxial cylinder structure and uses a small sample adapter. The amount of sample required for each measurement is very small, only 7ml-13ml (No. 0 rotor is 21ml), and constant temperature water with circulation is optional. The jacket is used to control the temperature of the sample to be tested in conjunction with a constant temperature bath. The operation is very convenient and the measured value is accurate. Ideal for precious, small sample measurements.

Applications

SSR digital viscometer is widely used in fluid viscosity detection and control of oil, paint, coating, slurry, textile, food, medicine, adhesive, cosmetics, etc., to meet the viscosity test of a small number of samples.

Features

1. The level bubble is in the front, just sit and adjust the level, which is very convenient.

2. It has timing measurement function .

3. Coaxial cylinder structure .

4. The measurement accuracy of the data is two decimal places .

5. Easy and reliable operation .

6. With a small amount of sample adapter, the amount of sample required for testing is very small .

7. The viscometer is equipped with two RS232 interfaces, which can be directly connected to a miniature thermal printer and a computer .

Optional

1. Enhanced Ultra Low Viscosity Adapter ULR (Spindle 0)

• Designed for low viscosity fluid measurement

• Jacketed and non-jacketed specifications are available

• The lowest detection limit is 1cP, the range depends on the viscometer used

• Model stainless steel for easy cleaning

• Can withstand the working temperature range -40 ℃ -200 ℃

2. DC0506W type viscometer dedicated low temperature constant temperature bath

Comparison of SSR parameters

Packing list：Viscometer host * 1, lifting column * 1, base * 1, 21 #, 27 #, 28 #, 29 #rotor * 1 each, connecting frame * 1, sample cylinder * 1, operation manual * 1, power adapter * 1, certificate/warranty card * 1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
