JENCO 6309POT online pH oxidation reduction temperature controller

SE
-2~ 16/0.01 pH, -2500~2500mV (absolute value)/-6499~ 649mV (relative value), 4~ 20mA reversible isolated output, five sets of relay control, Modbus protocol
Model：
Certificate
Contact
Details SPEC CAT OI

JENCO 6309POT PH/oxidation/temperature controllerSPEC

JENCO 6309POT PH/oxidation/temperature controllerDetails

JENCO 6309POT PH/oxidation/temperature controllerPacking list

SKU
NB002971
PH range
-2.00~16.00pH
PH Measurement Accuracy
±0.01pH
Resolution
0.01pH
Impedance
＞10^12Ω
Power Supply
230VAC,50/60Hz
Dimensions
96*96*148mm
Weight
960g
pH Buffer Identification Solution
Users can choose from any of 4.01, 7.00, 10.01 or 4.00, 6.86, 9.18
pH electrode zero/slope compensation
±100mV/±30%
Measurement range mV
-2500~2500mV
Measurement range mV
-6499~6499mV
mV resolution
1mV
Measurement Accuracy of mV
0.1%F.S
Measurement range
-10.0~120.0℃
Temperature Resolution
0.1℃
Temperature sensor
Thermistor, 10K/25 ℃
Current output range
4~ 20mA reversible, isolated current output
Insulation Voltage/maximum load
500VDC/500Ω
Control mode
In-system ON/OFF control
Maximum load
2.5A/230VAC
key
All have sound feedback effects
Various protection measures
4-Digit password protection
opening size
92*92mm
Protection level
IP65
Shop Accessories
pH electrode, oxidation electrode, sheath, sealing box
Measurement Accuracy
±0.3℃
6309POT
PH/oxidation/temperature controller
-2~ 16/0.01 pH, -2500~2500mV (absolute value)/-6499~ 649mV (relative value), 4~ 20mA reversible isolated output, five sets of relay control, Modbus protocol

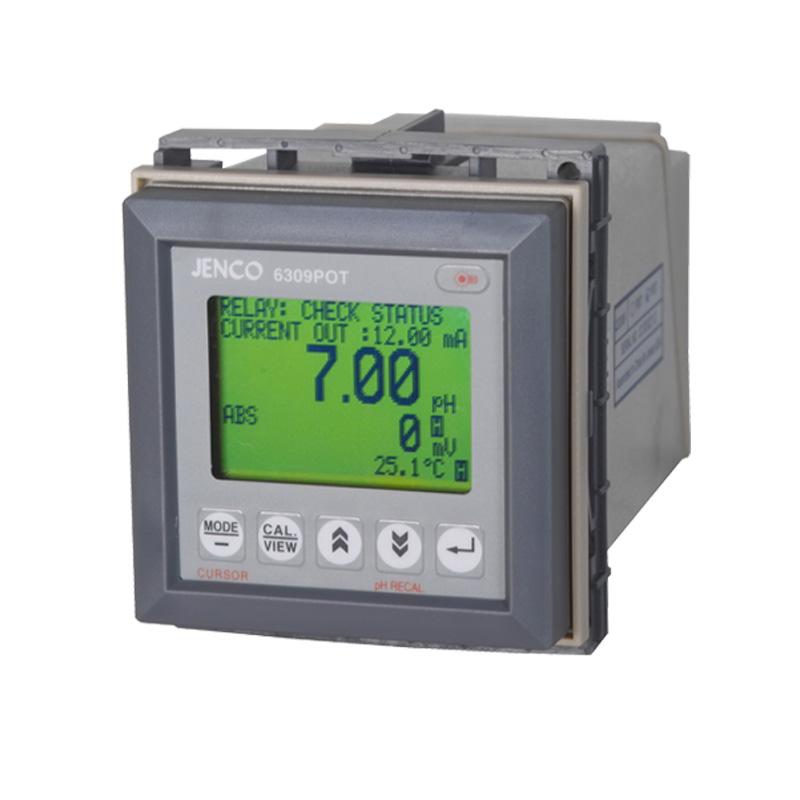

JENCO 6309POT online pH oxidation reduction temperature controller Picture

Introduction

The JENCO 6309POT pH&ORP Analyzer is an RS-485 online conductivity meter with 4 relays and a 4/1DIN IP-65 housing.

  1. pH/ORP/temperature measurement & control

  2. Displays the pH electrode rate

  3. Users can choose from ATC elements: 3k balco, 10k and pt-1000

  4. Reversible & Insulated 4-20mA output

  5. RS-485 output

  6. Easy calibration

  7. Dot matrix LCD display 128 x 64, backlit function

  8. Thin-film converter voice reply

  9. Automatic temperature compensation

  10. High-pitched dryness (50/60 Hz)

  11. Can be placed on pipes/walls/frames

  12. 1/4 DIN water resistant

  13. 1. Programmable temperature relay

  14. EU Certification

  15. Programmable linear/ORP current output or programmable linear/opposed

  16. number of current outputs

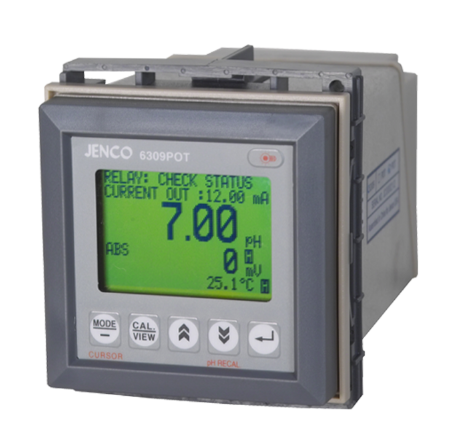

JENCO 6309POT in-line pH redox temperature controller

Optional

pH electrodeIP-600-1Wastewater treatment with high turbidity
IP-600-10General wastewater treatment field
IP-600-9(TH)General wastewater treatment field
Redox electrodesIP-500-8General wastewater treatment field
IP-500-9General wastewater treatment field
Sheath tube91 meter tube length
Sealed box011-200-00Dial-mounted
012-200-00Wall-mounted


FAQ
QCan 6309POT be adjusted to Chinese interface?
QDoes this PH/oxidation/temperature controller comply with GB/T11165 standard?
A The PH/oxidation reduction/temperature controller is suitable for GB/T11165, please consult customer service for detailed application definition
