JENCO 3671N (set) online pH oxidation reduction controller

JENCO3671N (set) online pH oxidation reduction controller is a pH oxidation reduction controller with automatic temperature compensation function. The measurement range, measurement accuracy and resolution of the 3671N (set) pH oxidation reduction controller are 0~14.0 pH, 0.1 +/- 1 digit, 0.1 pH.

Price: Please contact customer service

Model：

3671N (set)

Certificate

JENCO

Contact

Details SPEC Con

JENCO 3671N (set) pH oxidation controllerSPEC

JENCO 3671N (set) pH oxidation controllerDetails

JENCO 3671N (set) pH oxidation controllerPacking list

SKU: NB002974

PH range: 0~14.0pH

PH Measurement Accuracy: ±0.1PH

Resolution: 0.1pH

Impedance: Greater than 10 ^ 12 ohms

Power Supply: 115/230 VAC ±15%,50/60 Hz

Dimensions: 96*48*172mm

Weight: 0.69 kg

Measurement range mV: -1990~1990mV

mV resolution: 10mV

Measurement Accuracy of mV: ±0.1% ±1 digit

Measurement range: 0~100℃

Temperature Resolution: 1℃

Measurement Accuracy: 1 ±1 digit

Recorder, output (ph): 1400 mV

Recorder, output (mV): -1990 ~ 1990 mV

Recorder, output (temperature): 1000 mV

Two-point on/off control: pH or ORP (user selectable)

Idle zone (dead band, no sensing zone): +/- 0.1 pH (per set point)

Relay, output: 8a at 115 VAC,4a at 230 VAC

read display: 0.5 "active, red LED display

3671N (set)

pH oxidation controller

JENCO 3671N In-Line pH Redox Controller Features

Standard 1/8DIN aluminium body design
The LED display can display the pH (ORP) value, and the temperature value can be displayed by the temperature switch button
Two sets of pH (ORP) relay control
It has the function of automatic temperature compensation
Power-off correction value memory function
It is an affordable industrial in-line acidity/redox controller
With IP-600-10 (20 meters)

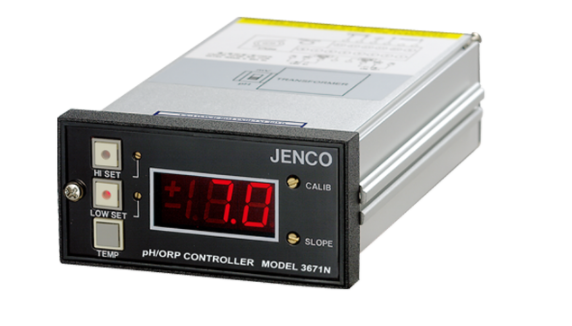

JENCO 3671N (set) in-line pH redox controller

Optional

Model	Introduction
IP-600-9PT	General water treatment (can be used below 70°C for a long time)
IP-600-1NPT	General water treatment (can be used below 90°C for a long time)
IP-600-3CNPT	Pure water pH composite electrode (pure water and ultrapure water can be used below 60°C for a long time)
IP-600-10	General water treatment (use at room temperature)
IP-600-1N	General water treatment (use at room temperature)
IP-600-3CN	Pure water pH composite electrode (used at room temperature for pure water and ultrapure water measurement)

Redox electrodes

Model	Introduction
IR-500-8	General water treatment field
IR-500-9	General water treatment field

Sheath tube

Model	Introduction
009A	1 meter tube length

Sealed box

Model	Introduction
011-200-00	Dial-mounted
012-200-00	Wall-mounted

FAQ

QDoes the JENCO pH oxidation reduction controller meet the GB/T13531.1 standard?

A The 3671N pH oxidation reduction controller can refer to
